Assembly Note

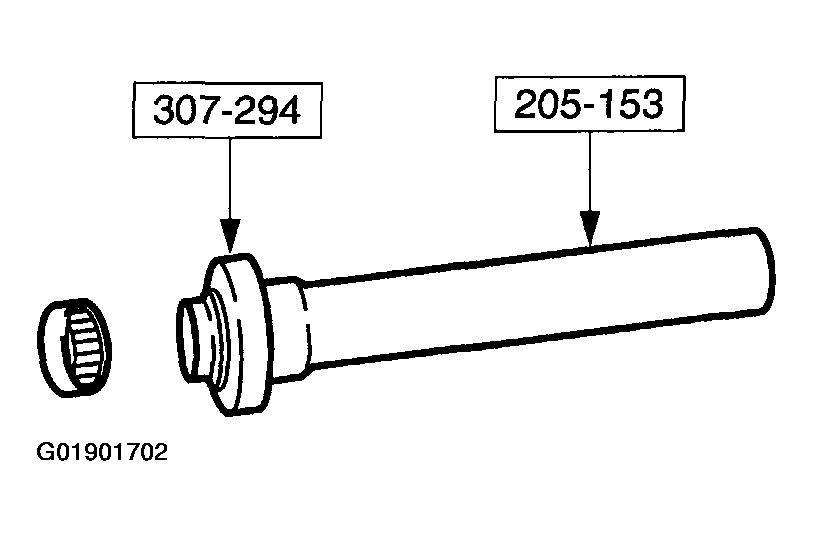

Fig 1: Positioning No. 16 Reverse/Overdrive Ring Gear Bearing

Courtesy of MAZDA MOTORS CORP.

Position the No. 16 reverse/overdrive ring gear bearing on the special tools.
1. Position the bearing with the part number facing toward the handle of the special tool.

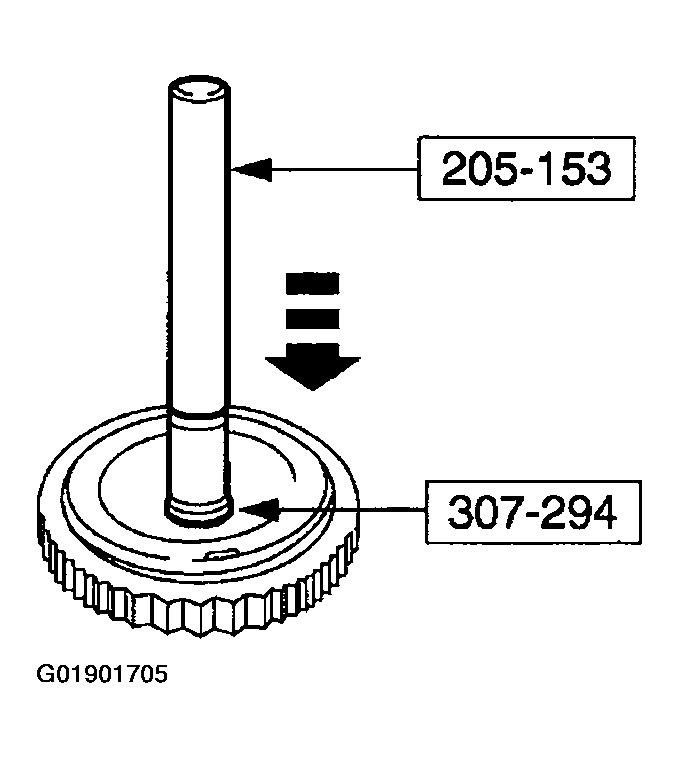

  Fig 2: Installing Reverse/Overdrive Ring Gear Bearing
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.
Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.

Fig 3: Positioning No. 17 Stator Support Bearing On Special Tools
Courtesy of MAZDA MOTORS CORP.
Position the No. 17 stator support bearing on the special tools.
1. Position the bearing with the part number facing toward the handle of the special tool.

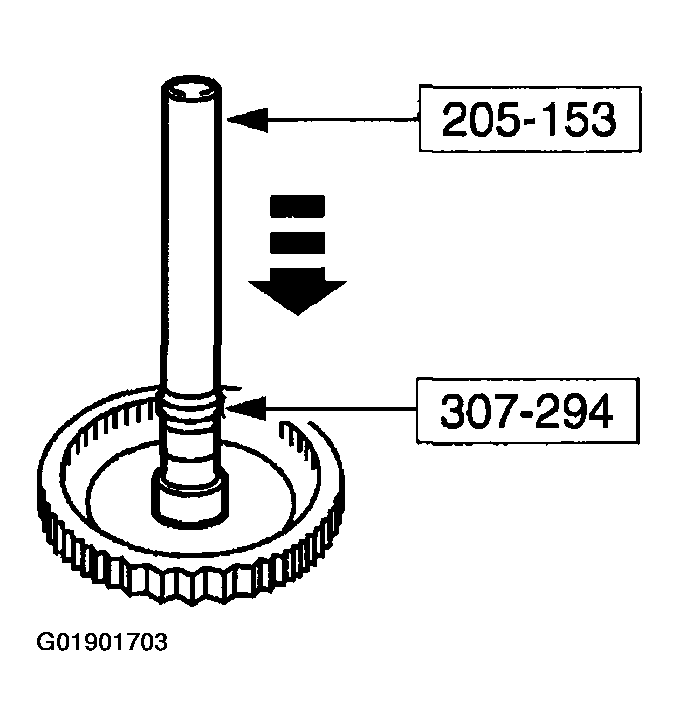

  Fig 4: Installing No. 17 Stator Support Bearing Into Stator Support Sprocket
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.
Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.
