Assembled Views

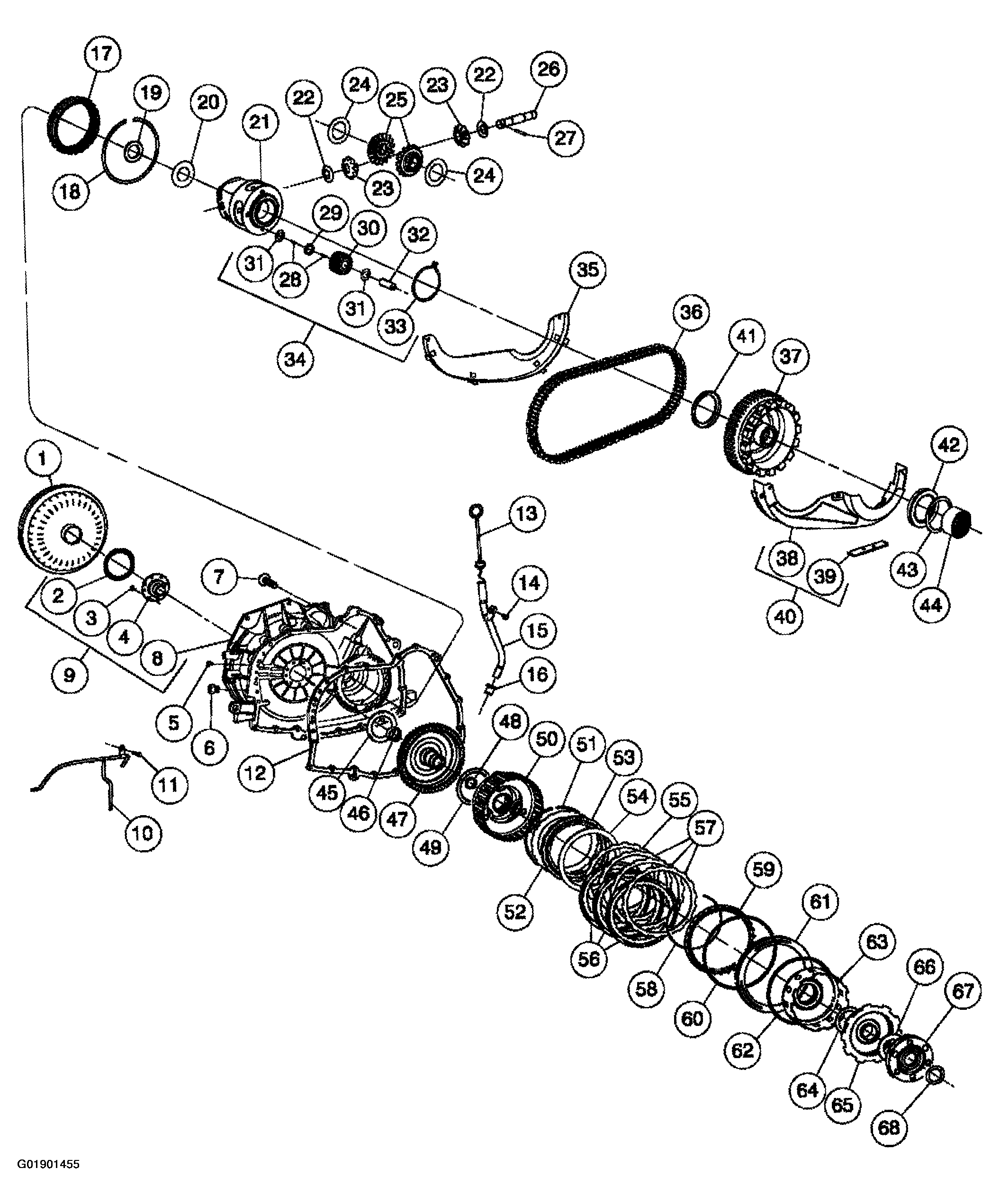

Fig 1: Exploded View Of Automatic Transaxle (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

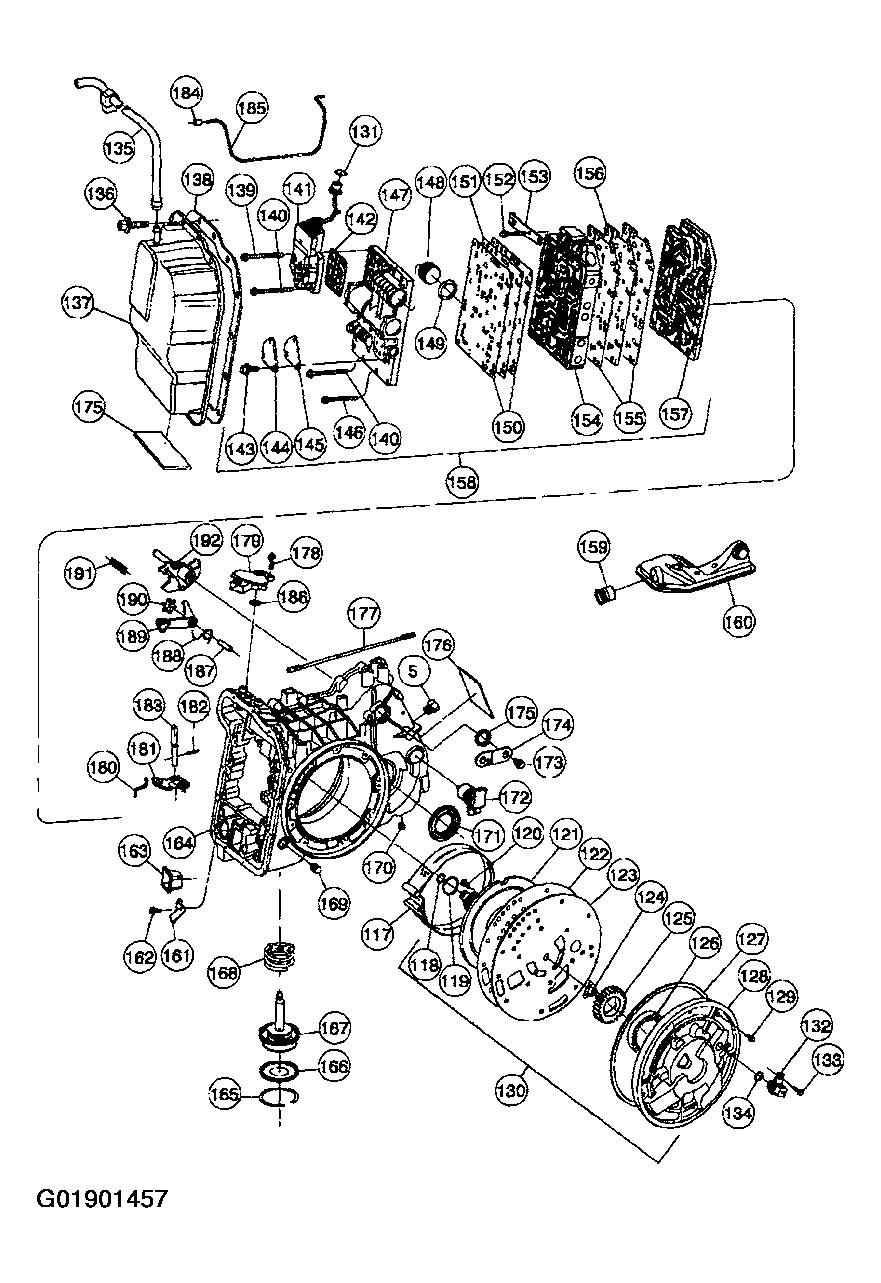

Fig 2: Exploded View Of Automatic Transaxle (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

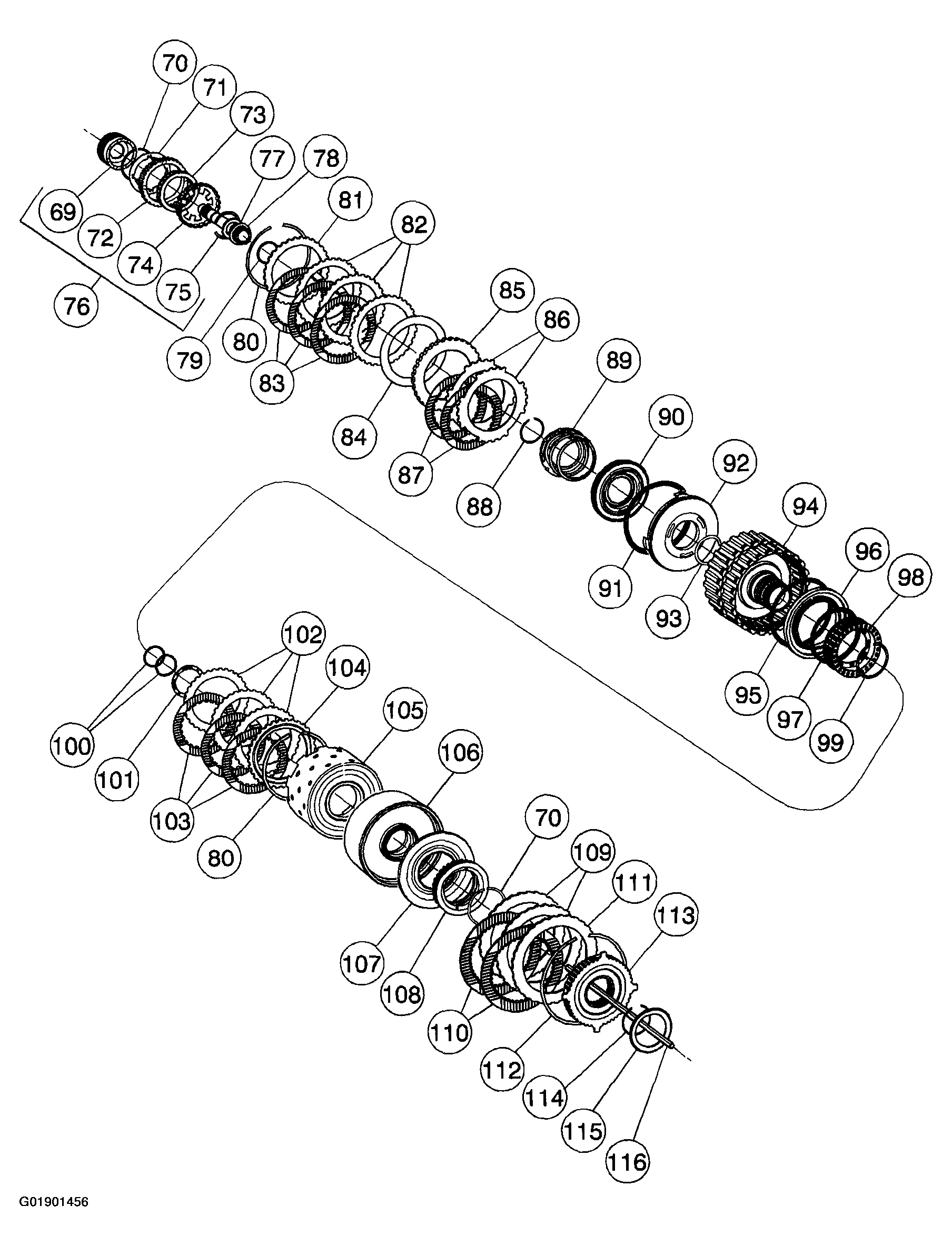

Fig 3: Exploded View Of Automatic Transaxle (3 Of 3)

Courtesy of MAZDA MOTORS CORP.

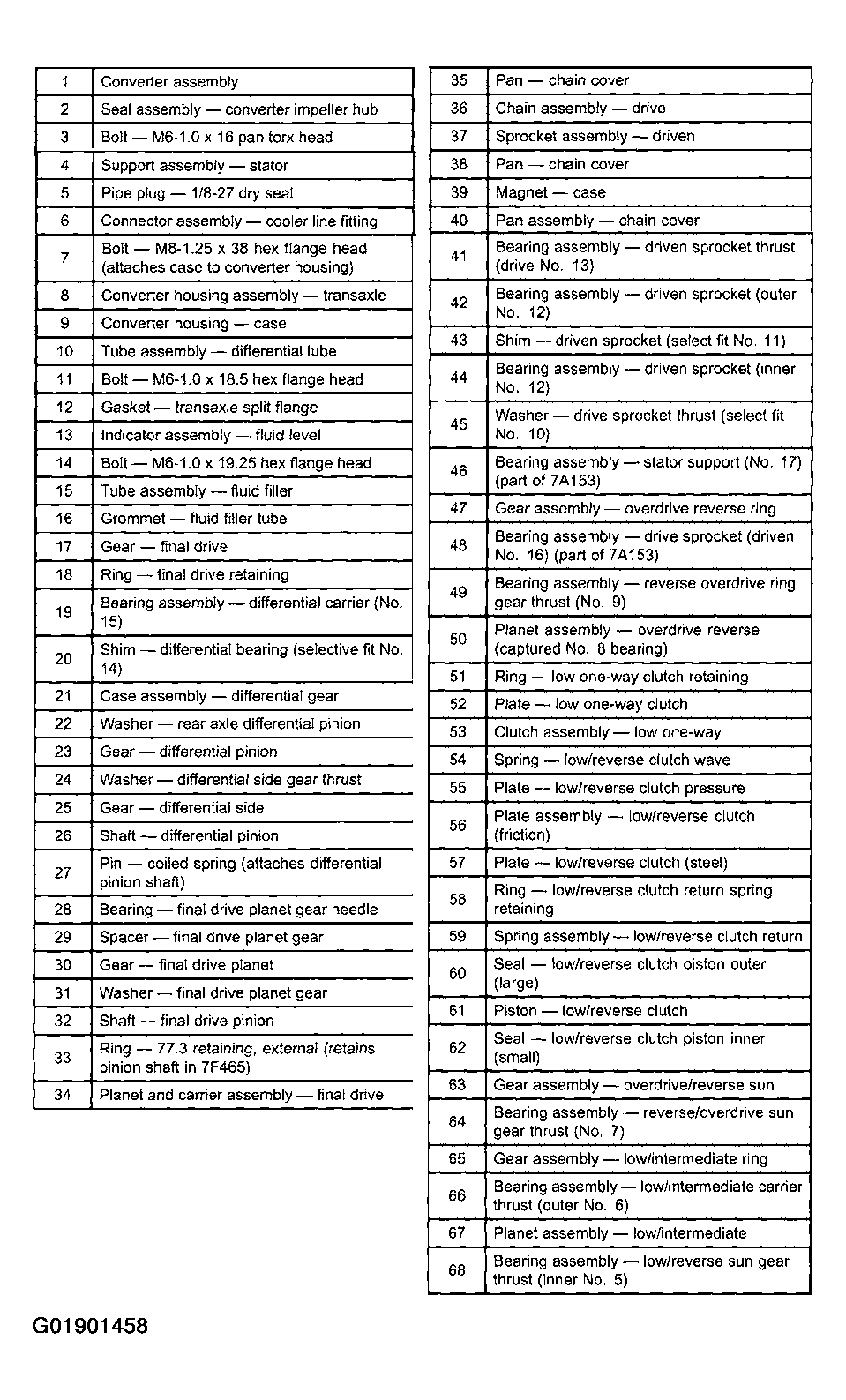

Fig 4: Legend For Exploded View Of Automatic Transaxle (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

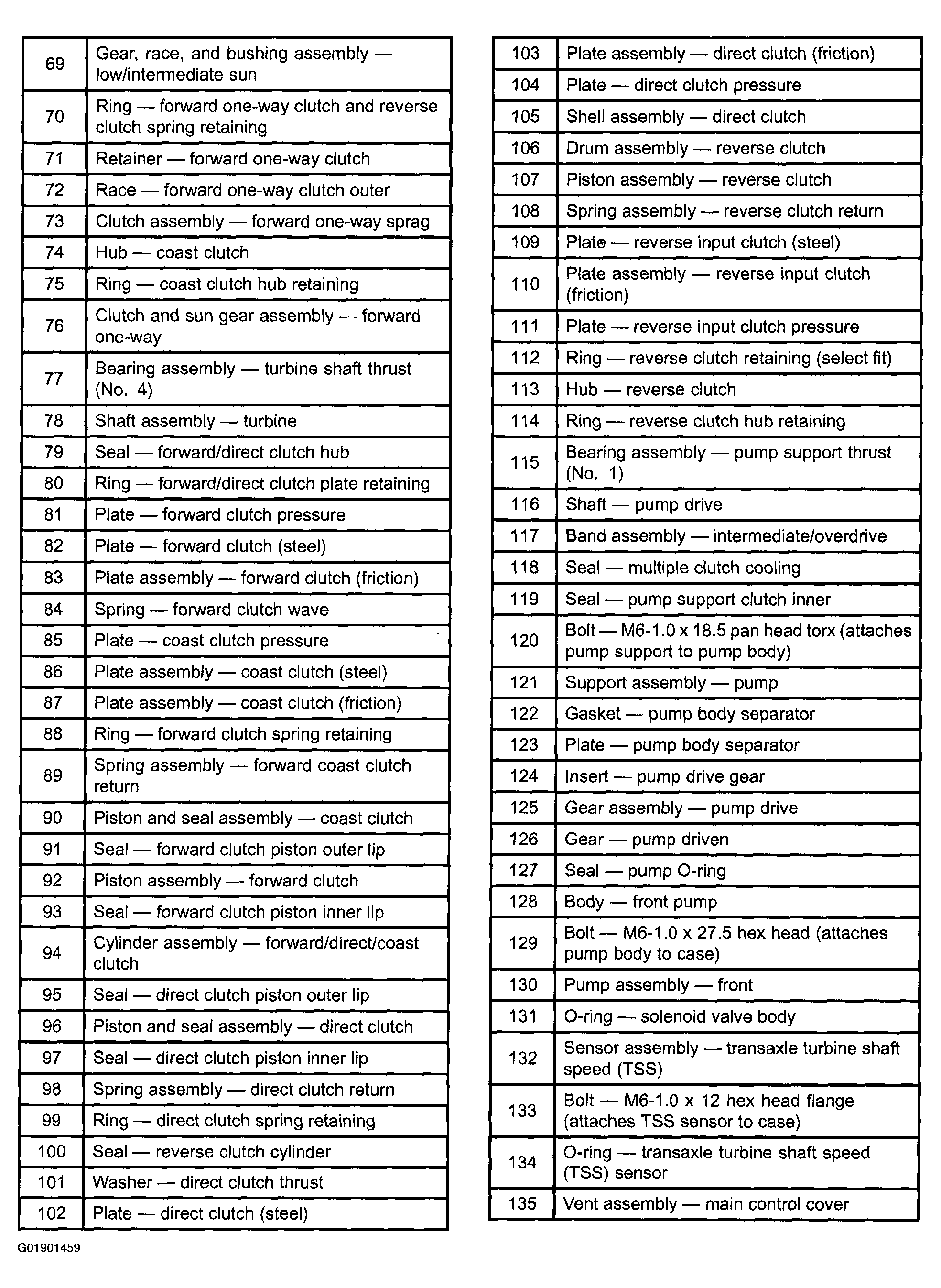

Fig 5: Legend For Exploded View Of Automatic Transaxle (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

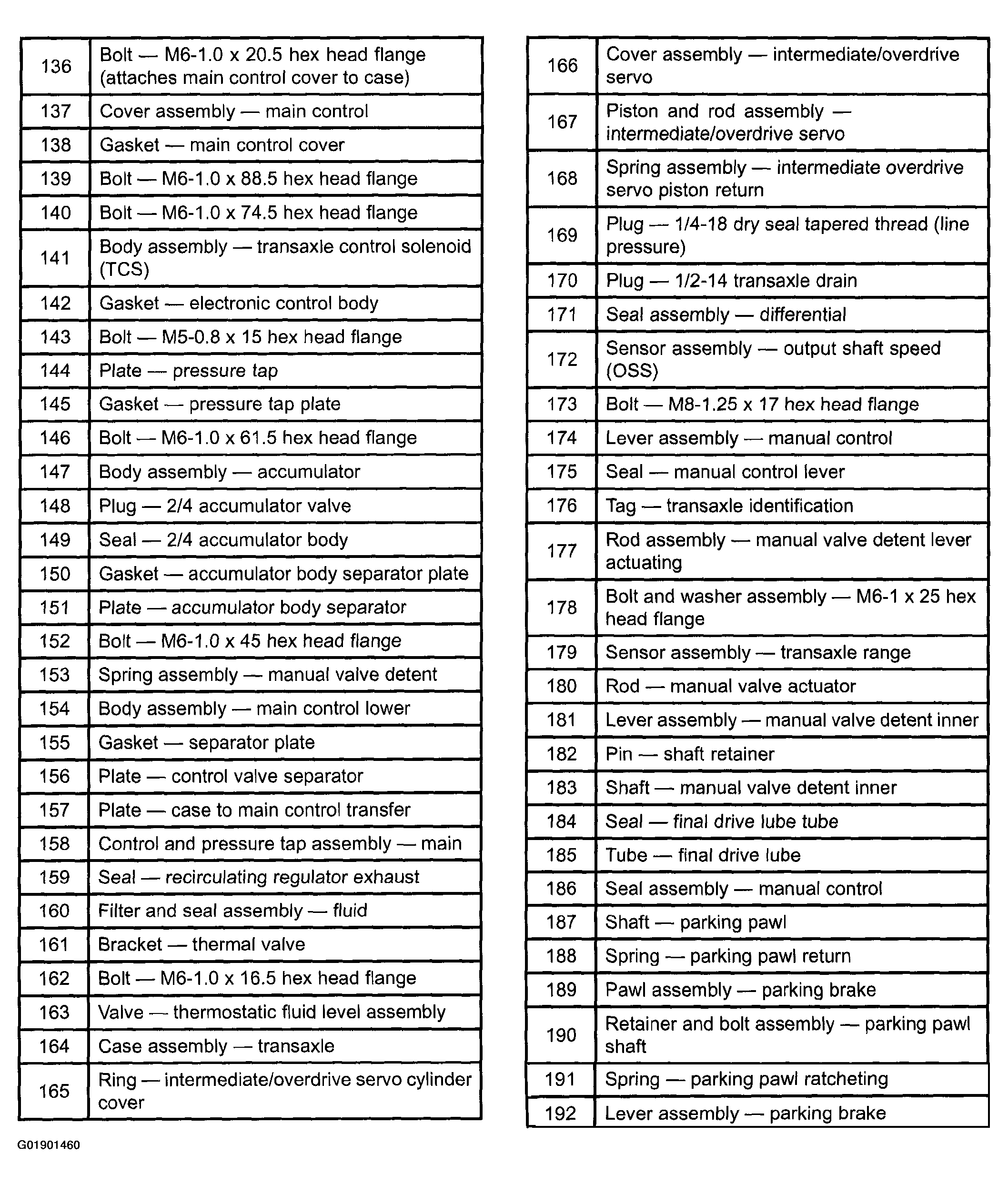

Fig 6: Legend For Exploded View Of Automatic Transaxle (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
