Transmission Hardware Unit Connector End View (C199)

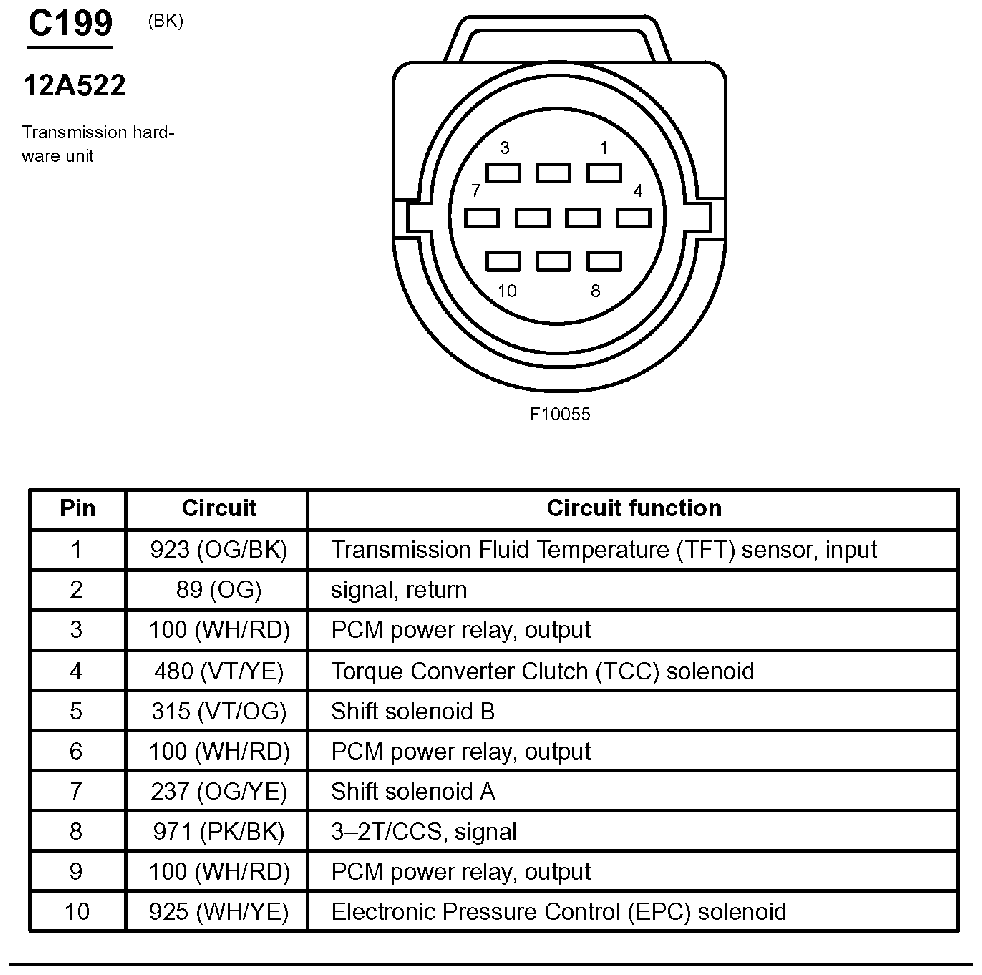

Fig 1: Transmission Hardware Unit Connector End View (C199)

G07831457

Courtesy of FORD MOTOR CO.
