Parking Aid Module (PAM) Connector End View (C4014)

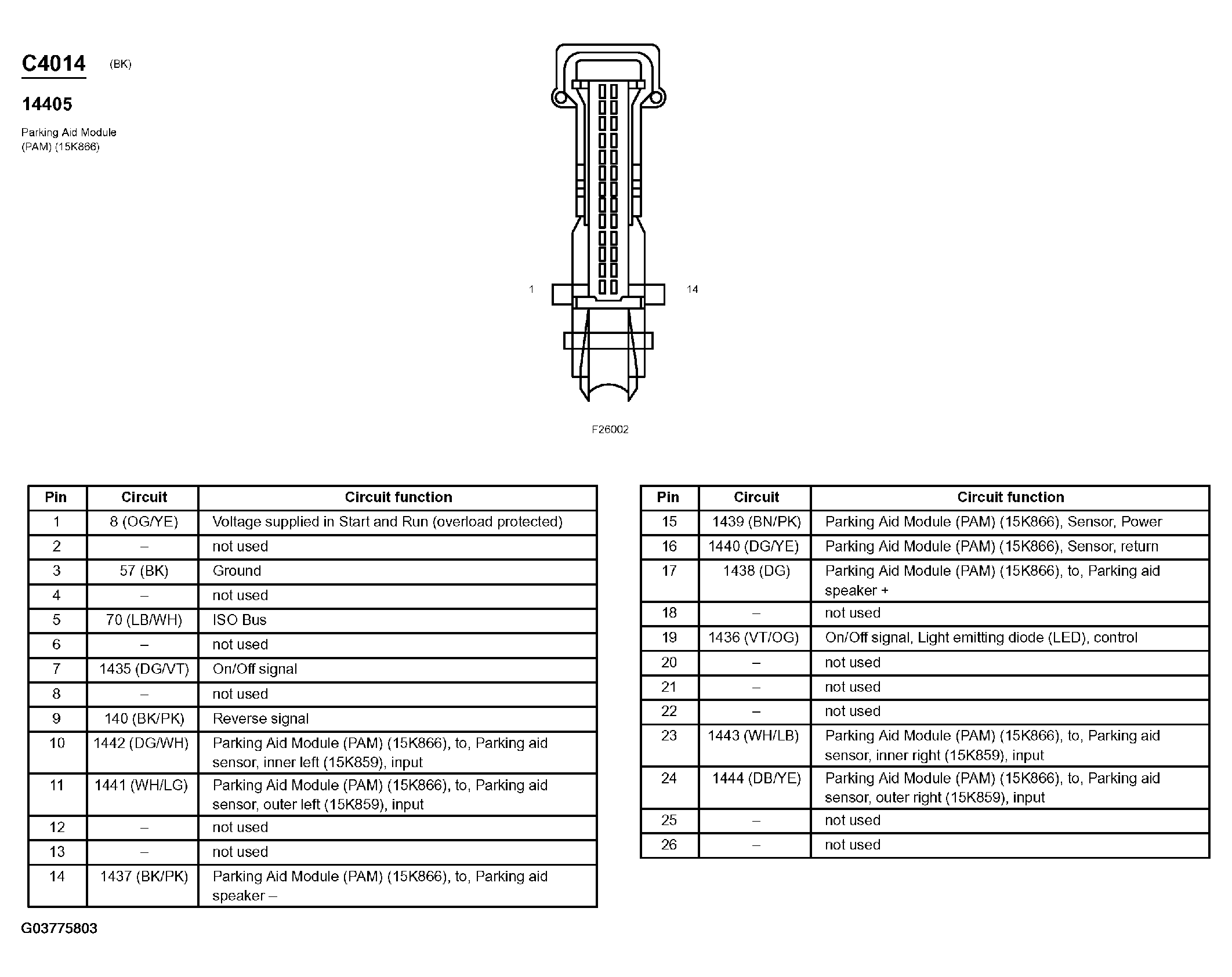

Fig 1: Parking Aid Module (PAM) Connector End View (C4014)

G03775803

Courtesy of FORD MOTOR CO.
