Test 7: Fuel Pressure Regulator

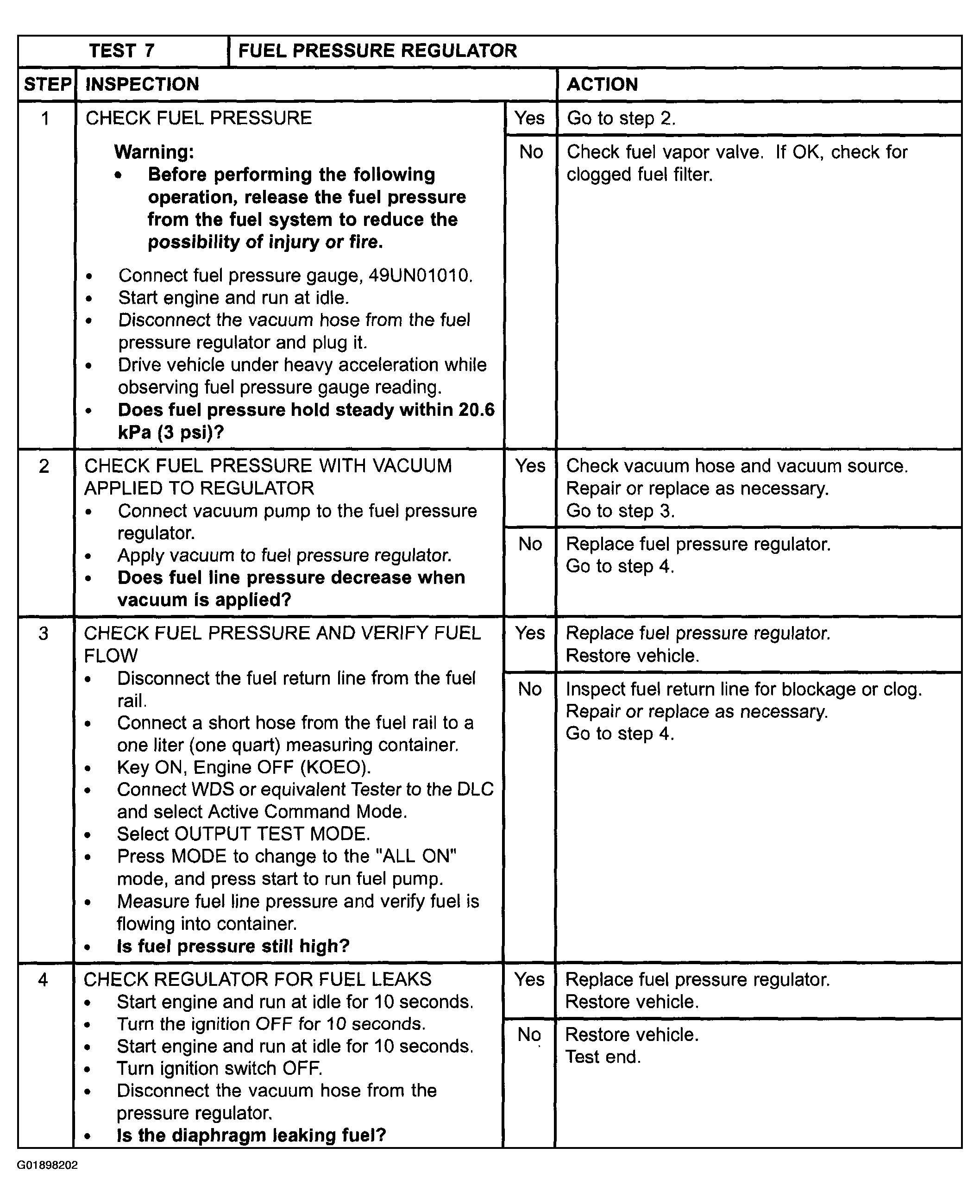

Fig 1: Fuel Pressure Regulator Inspection Procedure

G01898202

Courtesy of FORD MOTOR CO.
