Pinpoint Test 1: The Speed Control Is Inoperative

Fig 1: Speed Control Is Inoperative Inspection Procedure (1 Of 11)

Courtesy of FORD MOTOR CO.

Fig 2: Speed Control Is Inoperative Inspection Procedure (2 Of 11)

Courtesy of FORD MOTOR CO.

Fig 3: Speed Control Is Inoperative Inspection Procedure (3 Of 11)

Courtesy of FORD MOTOR CO.

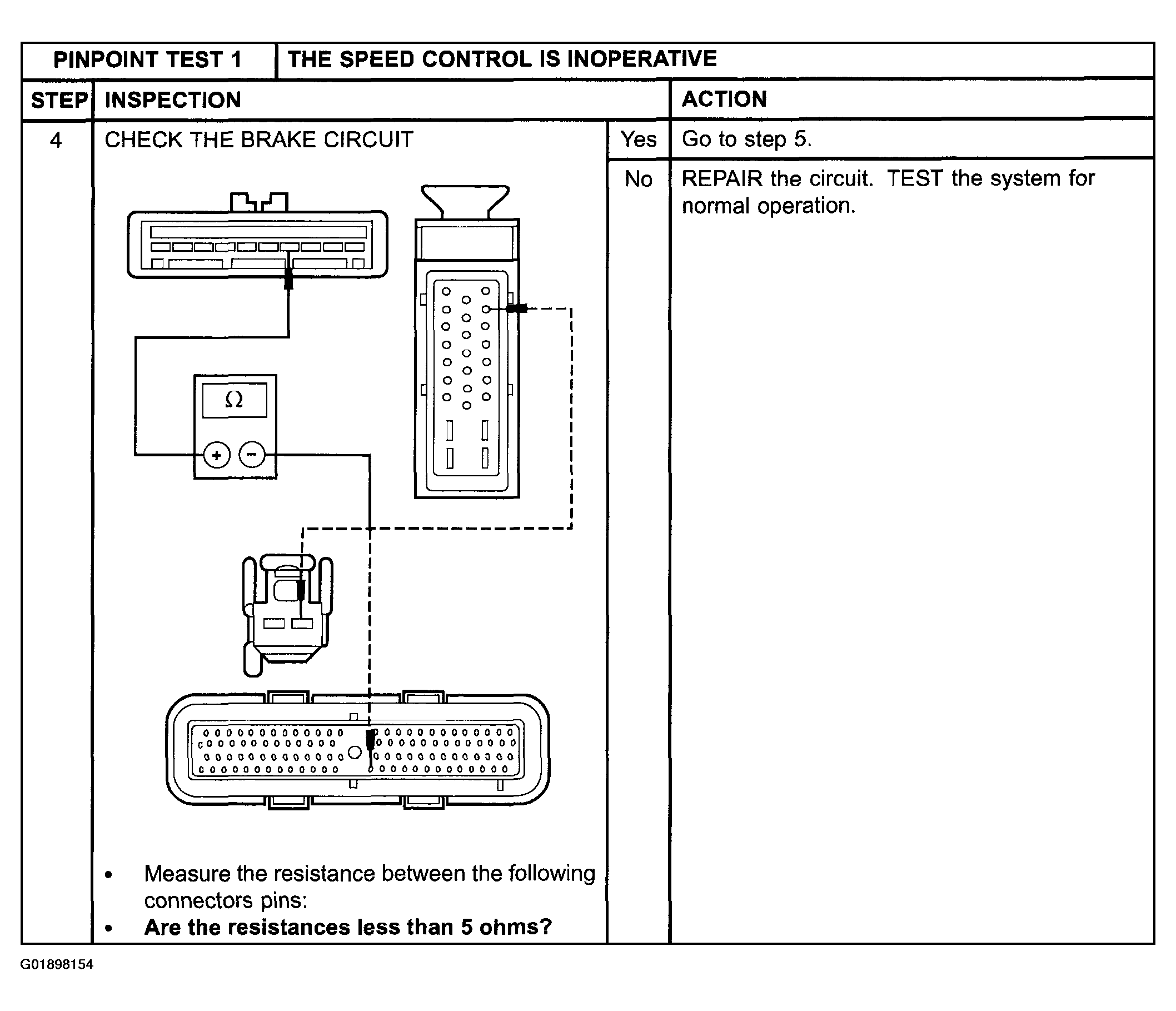

Fig 4: Speed Control Is Inoperative Inspection Procedure (4 Of 11)

Courtesy of FORD MOTOR CO.

Fig 5: Speed Control Is Inoperative Inspection Procedure (5 Of 11)

Courtesy of FORD MOTOR CO.

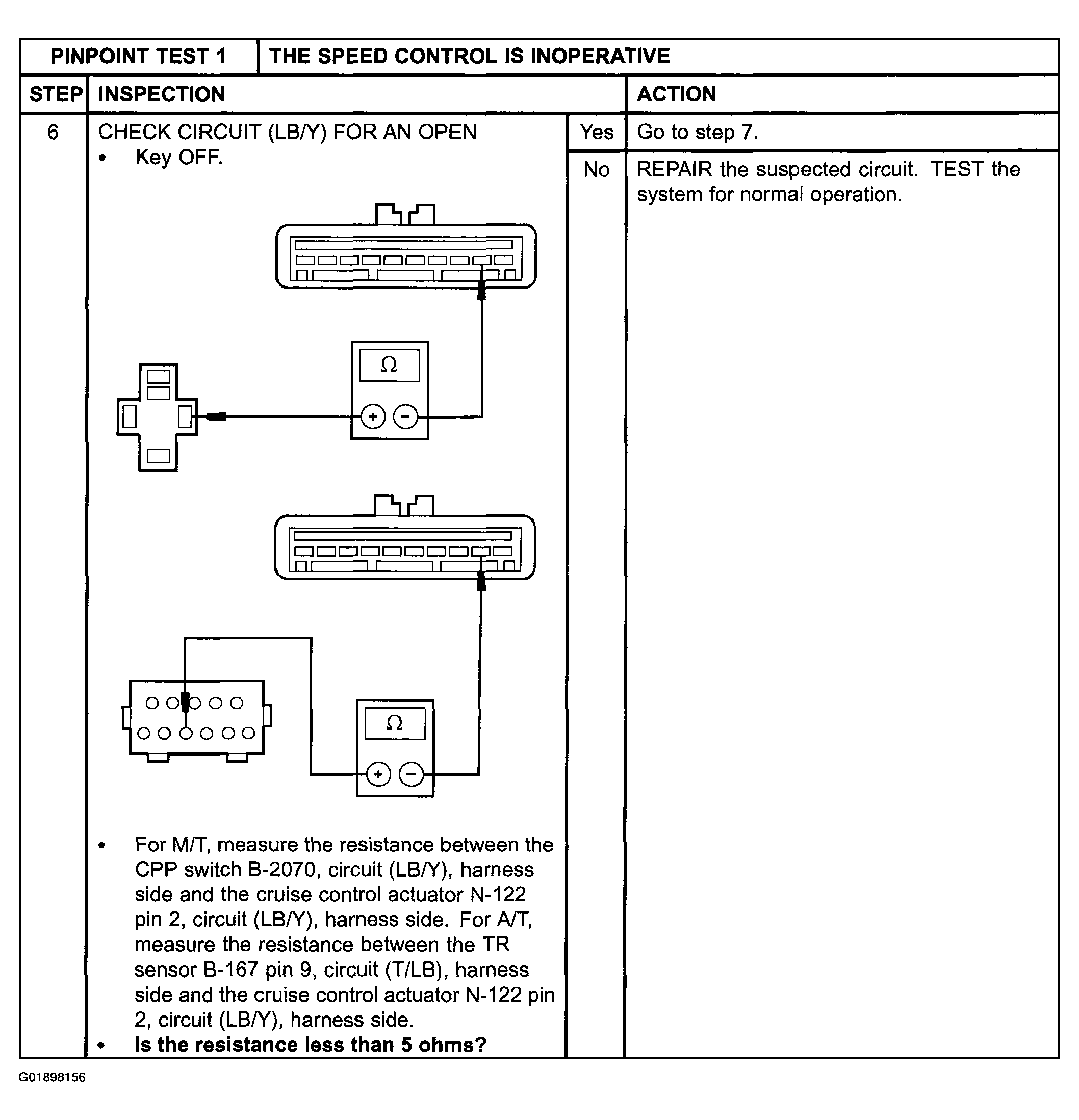

Fig 6: Speed Control Is Inoperative Inspection Procedure (6 Of 11)

Courtesy of FORD MOTOR CO.

Fig 7: Speed Control Is Inoperative Inspection Procedure (7 Of 11)

Courtesy of FORD MOTOR CO.

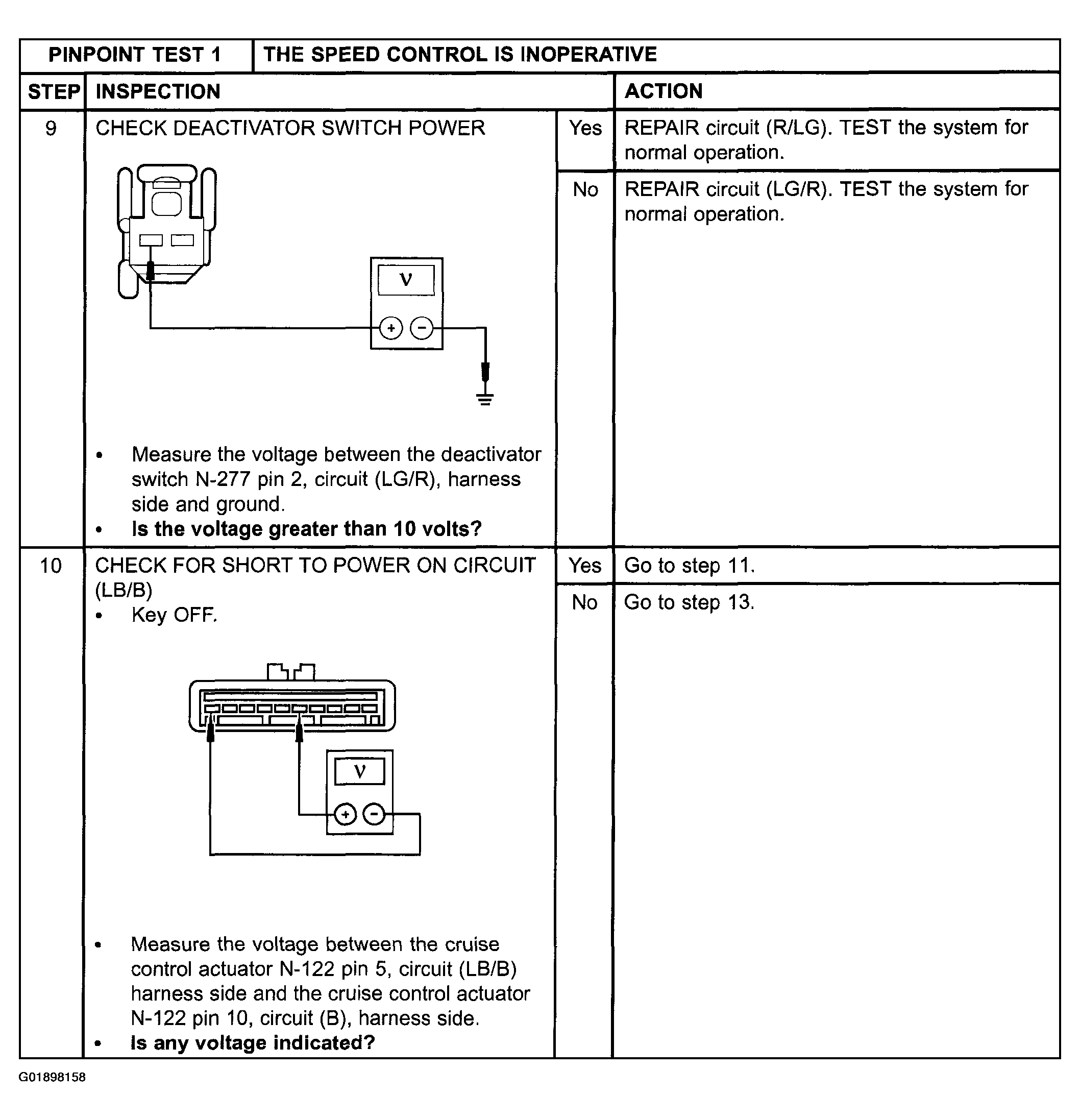

Fig 8: Speed Control Is Inoperative Inspection Procedure (8 Of 11)

Courtesy of FORD MOTOR CO.

Fig 9: Speed Control Is Inoperative Inspection Procedure (9 Of 11)

Courtesy of FORD MOTOR CO.

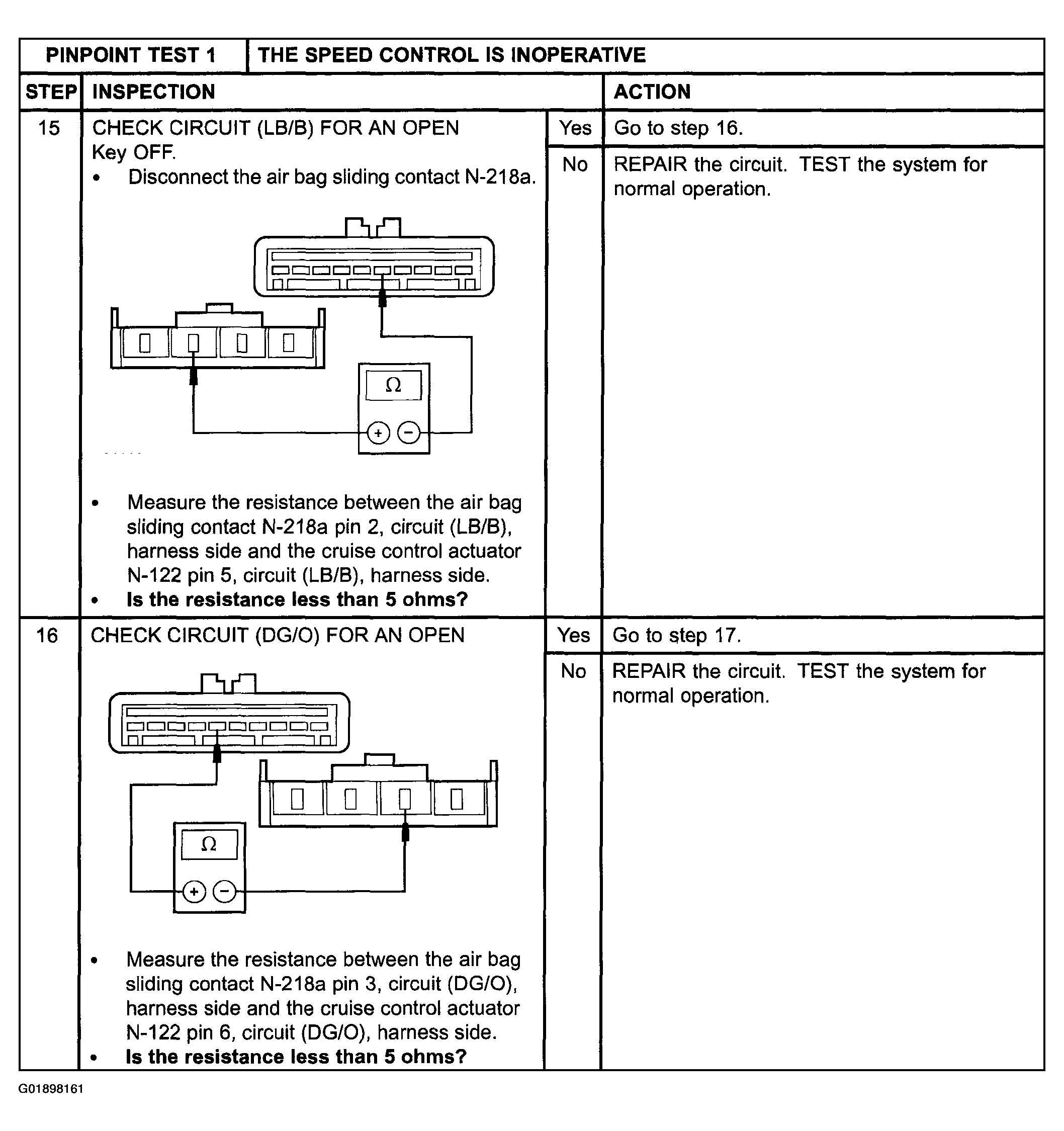

Fig 10: Speed Control Is Inoperative Inspection Procedure (10 Of 11)

Courtesy of FORD MOTOR CO.

Fig 11: Speed Control Is Inoperative Inspection Procedure (11 Of 11)

Courtesy of FORD MOTOR CO.
