Removal and Installation

  1. Remove the audio unit. For additional information, Refer to AUDIO UNIT .

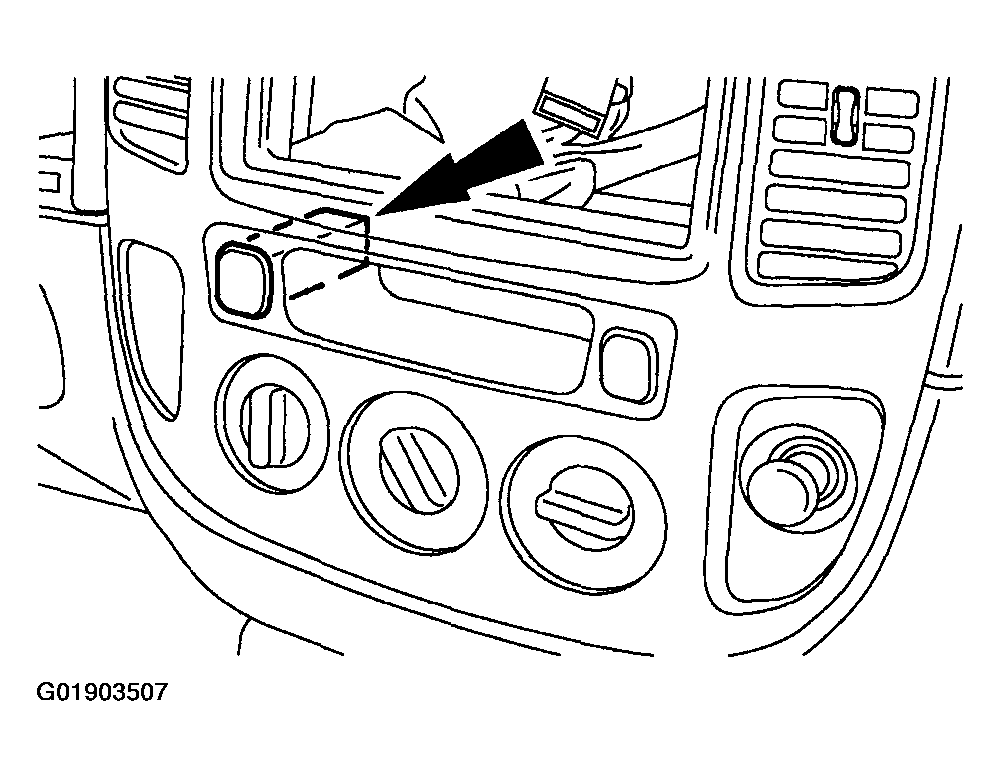

    Fig 1: Disconnecting Electrical Connector
    G01903507Courtesy of MAZDA MOTORS CORP.
  2. Push outward on the rear window defrost switch to remove it from the instrument panel center finish panel.
    1. Disconnect the electrical connector.
  3. To install, reverse the removal procedure.
