Transaxle Range (Tr) Sensor

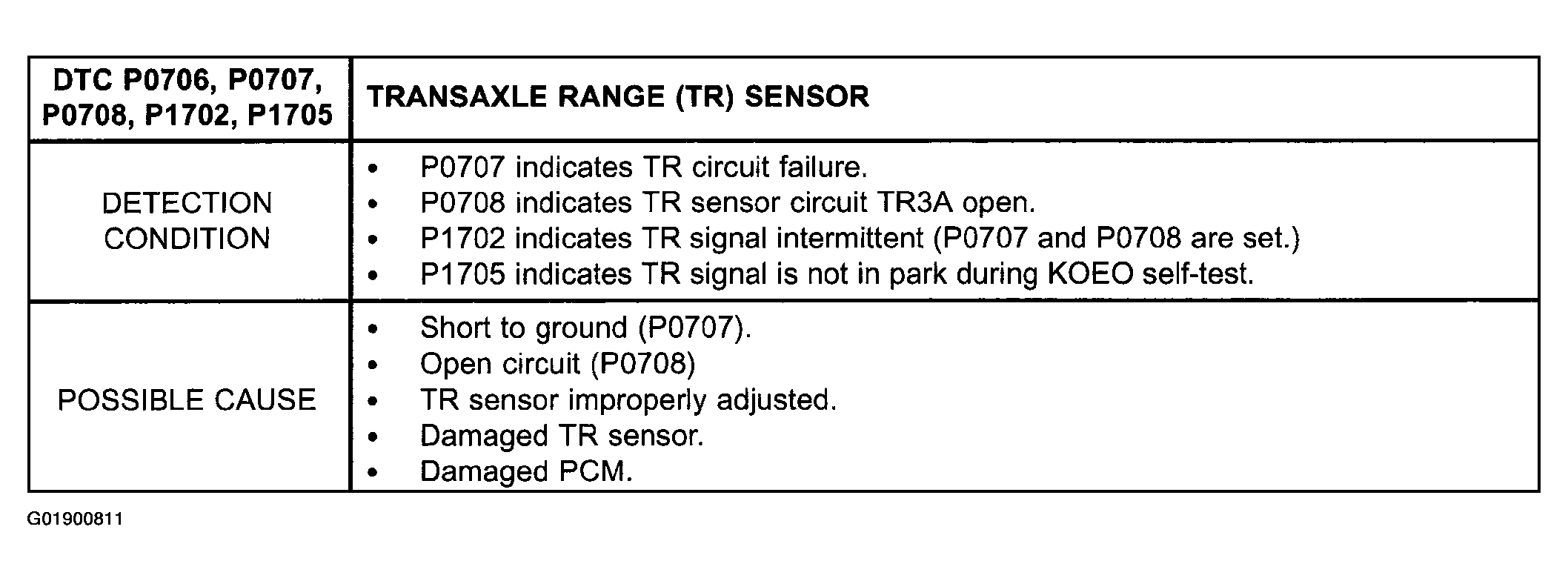

Fig 1: Transaxle Range (TR) Sensor Possible Causes (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

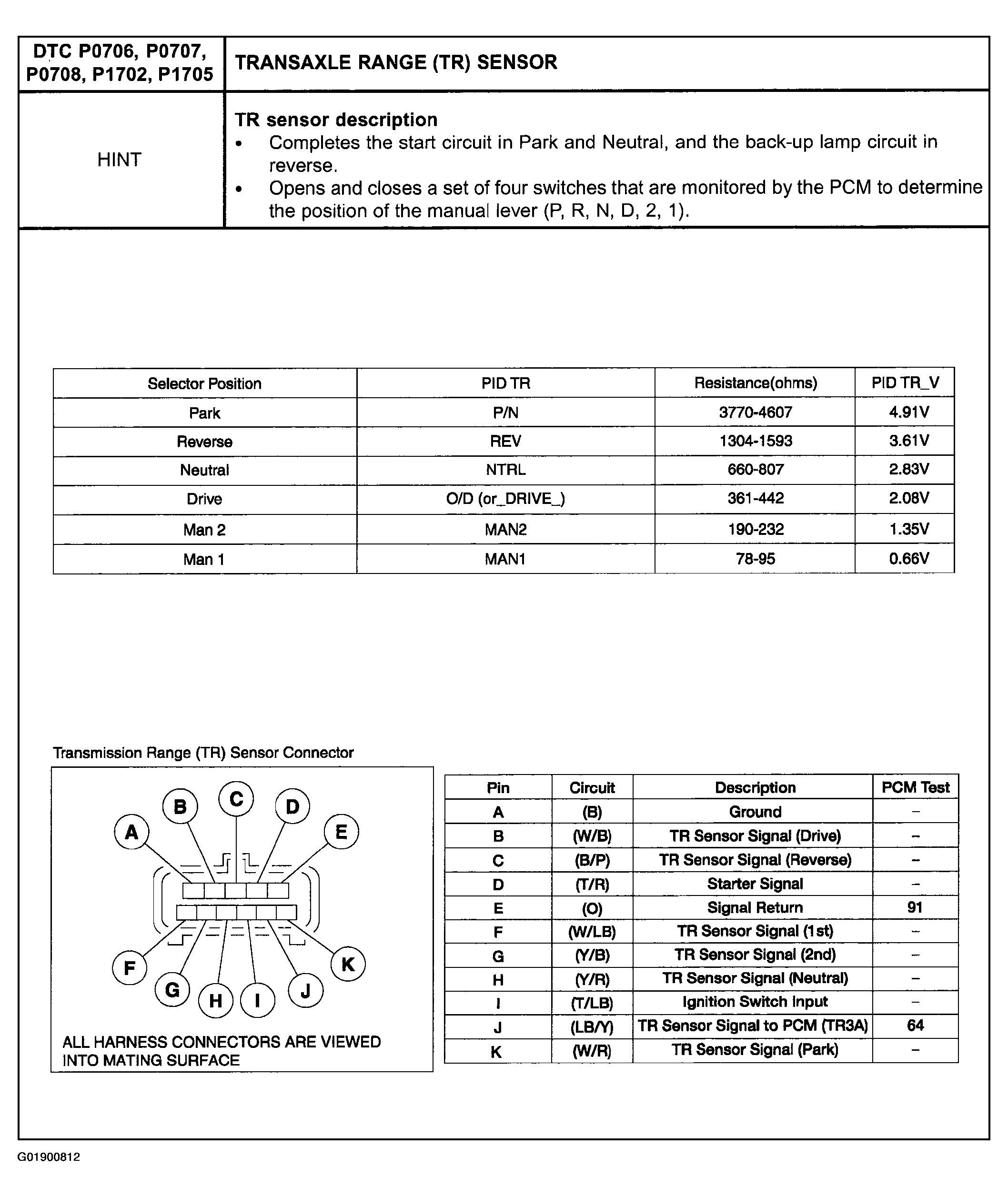

Fig 2: Transaxle Range (TR) Sensor Possible Causes (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

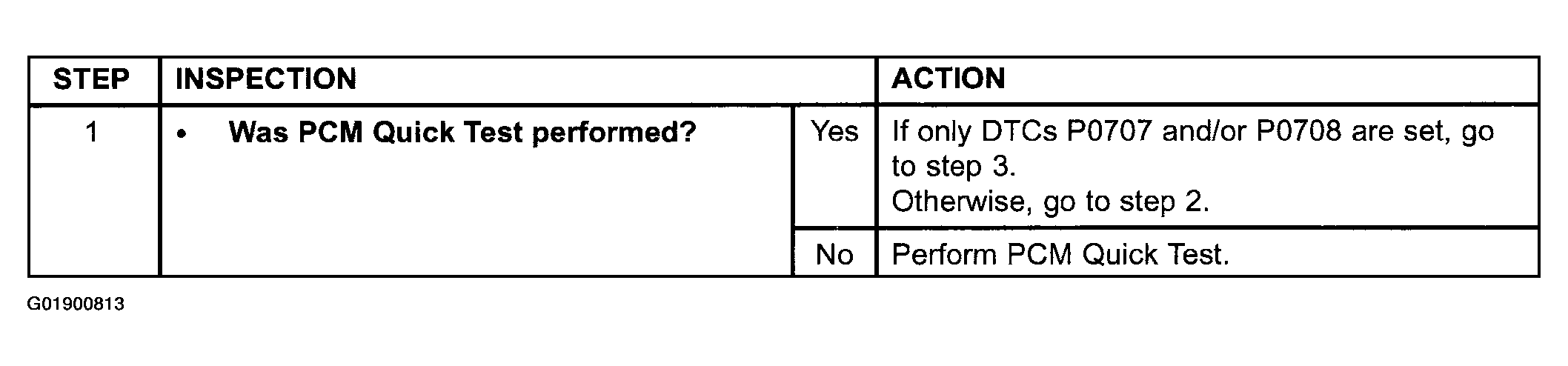

Fig 3: Transaxle Range (TR) Sensor Test Procedure (Steps 1)

Courtesy of MAZDA MOTORS CORP.

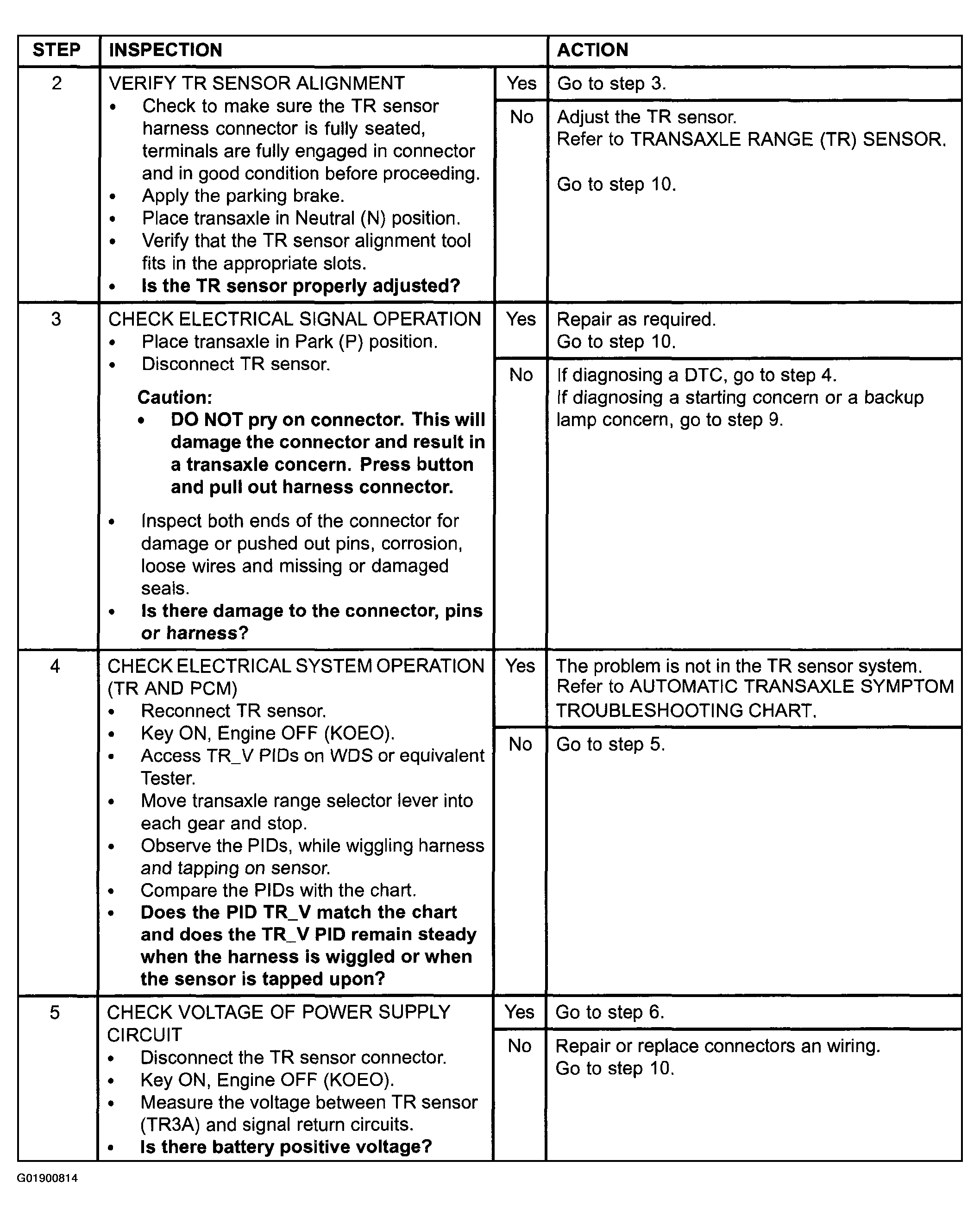

Fig 4: Transaxle Range (TR) Sensor Test Procedure (Steps 2-5)

Courtesy of MAZDA MOTORS CORP.

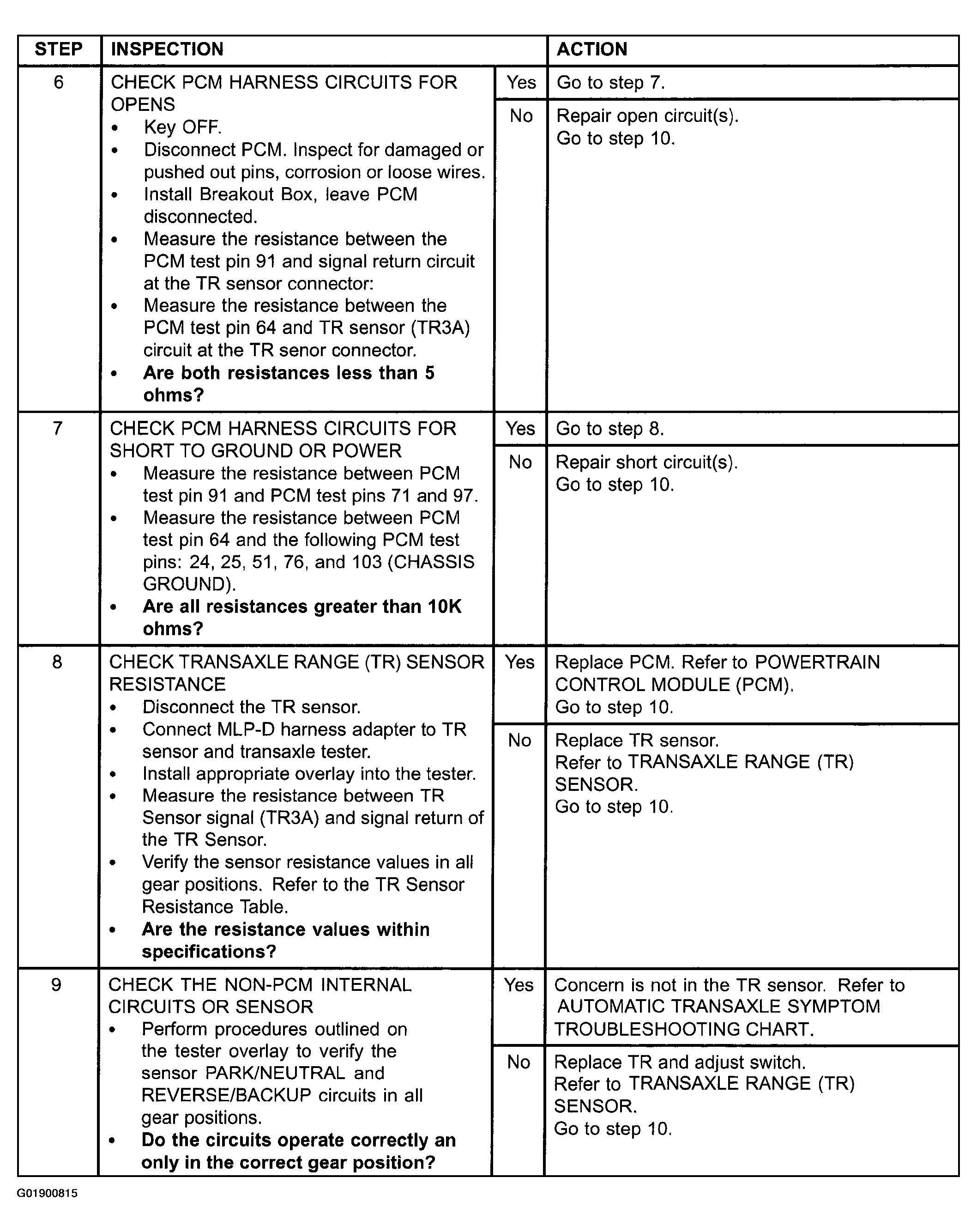

Fig 5: Transaxle Range (TR) Sensor Test Procedure (Steps 6-9)

Courtesy of MAZDA MOTORS CORP.

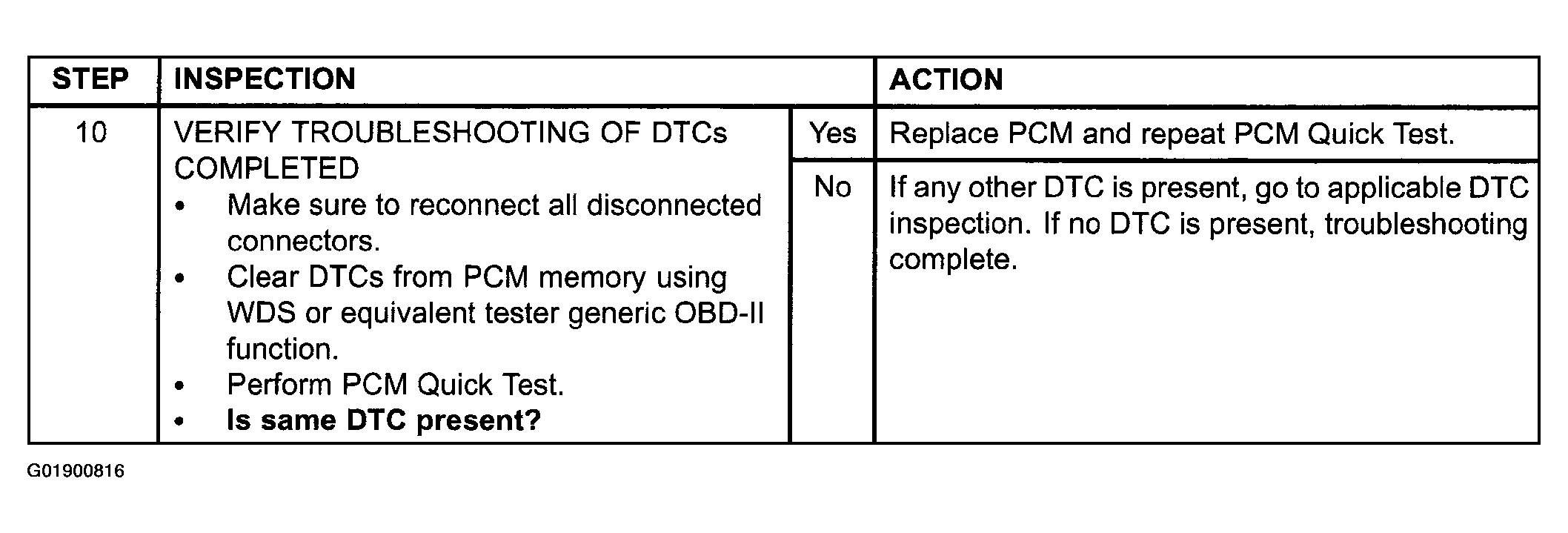

Fig 6: Transaxle Range (TR) Sensor Test Procedure (Step 10)

Courtesy of MAZDA MOTORS CORP.
