Rack Bushing Assembly Note

  1. Align the tab of a new rack bushing with the hole in the column.
  2. Push the rack bushing in until it is locked in place by the tab.

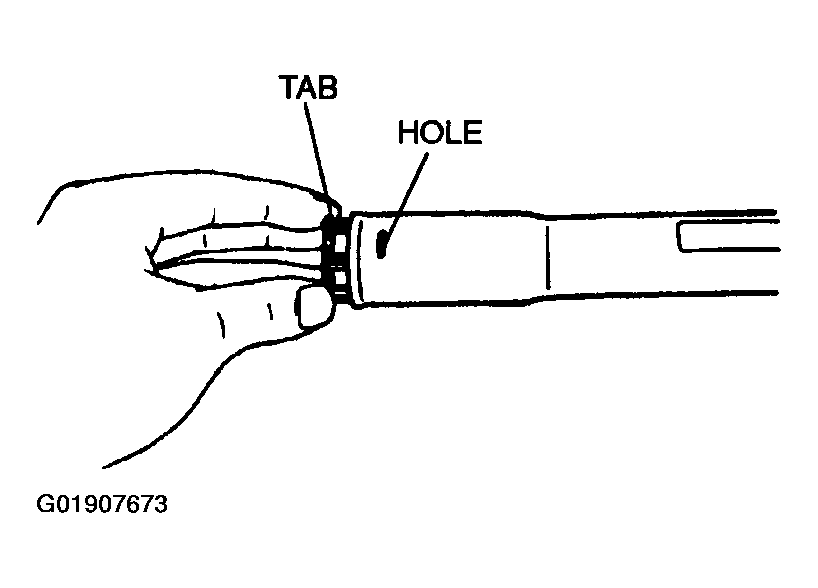

    Fig 1: Aligning Tab Of Rack Bushing With Hole In Column
    G01907673Courtesy of MAZDA MOTORS CORP.
