Power Antenna Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.

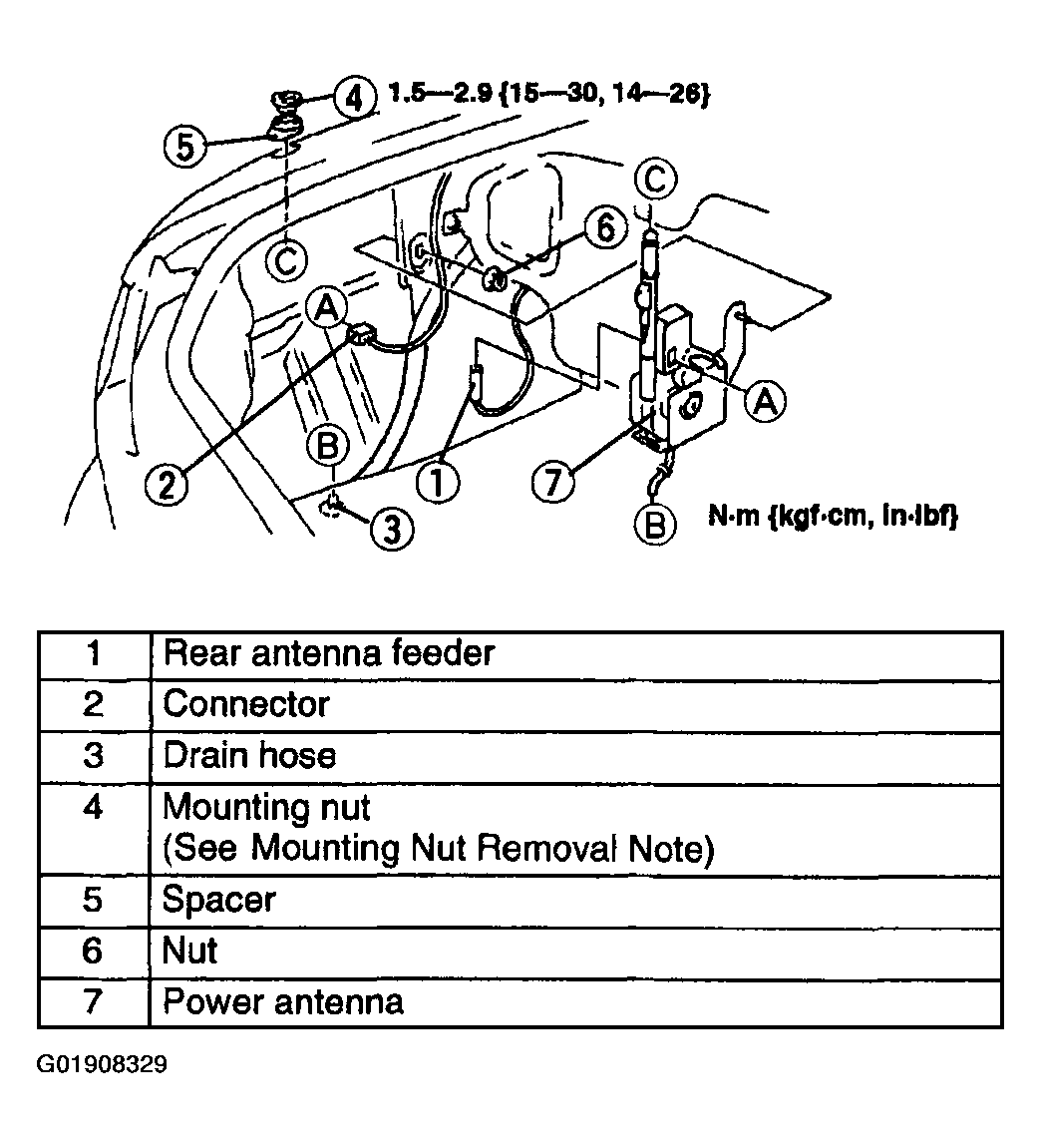

    Fig 1: Removing/Installing Power Antenna
    G01908329Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
