Diagnostic procedure

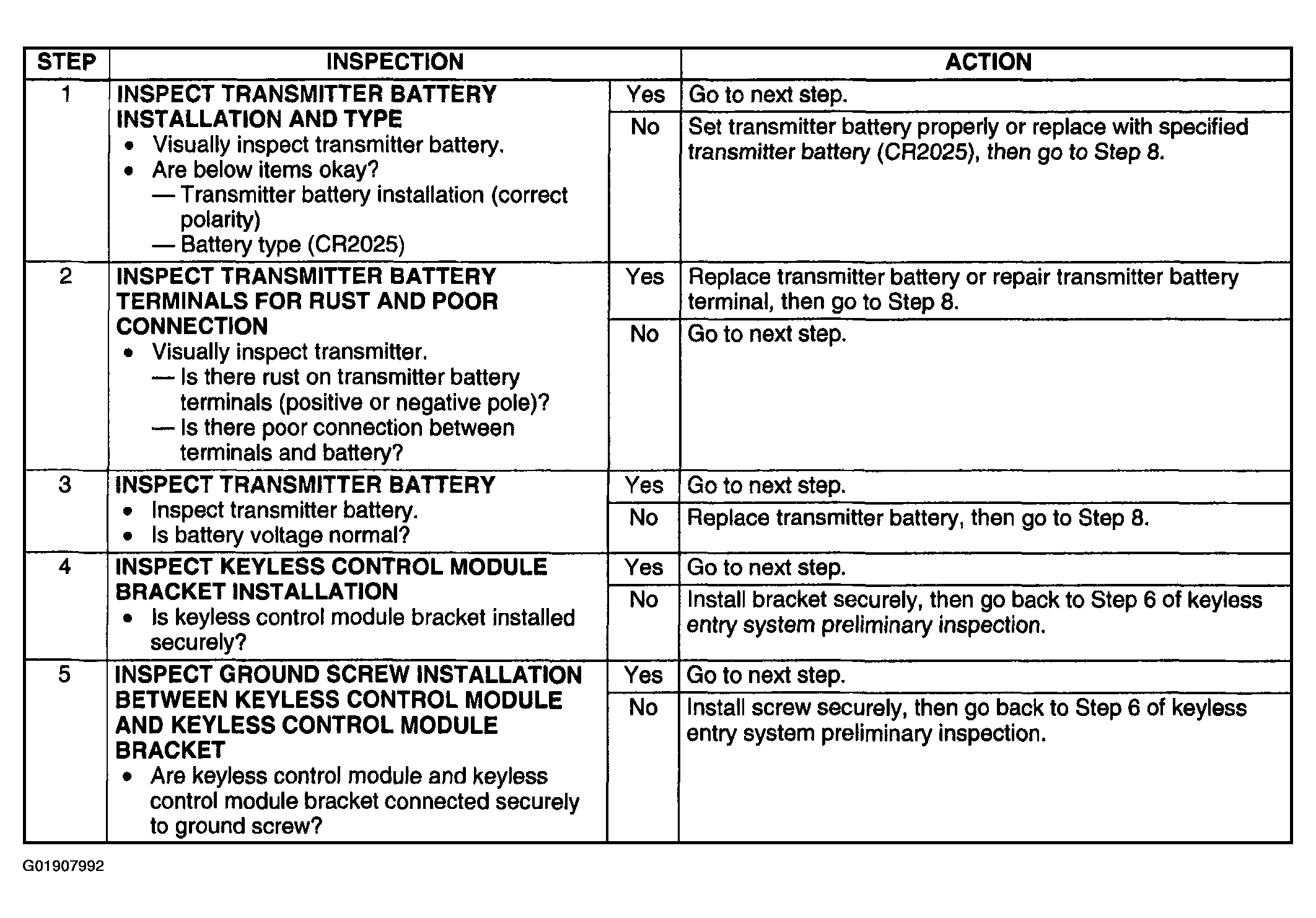

Fig 1: Diagnostic Procedure Chart - No. 3 Transmitter ID Code Cannot Be Reprogrammed (Steps 1-5)
G01907992Courtesy of MAZDA MOTORS CORP.

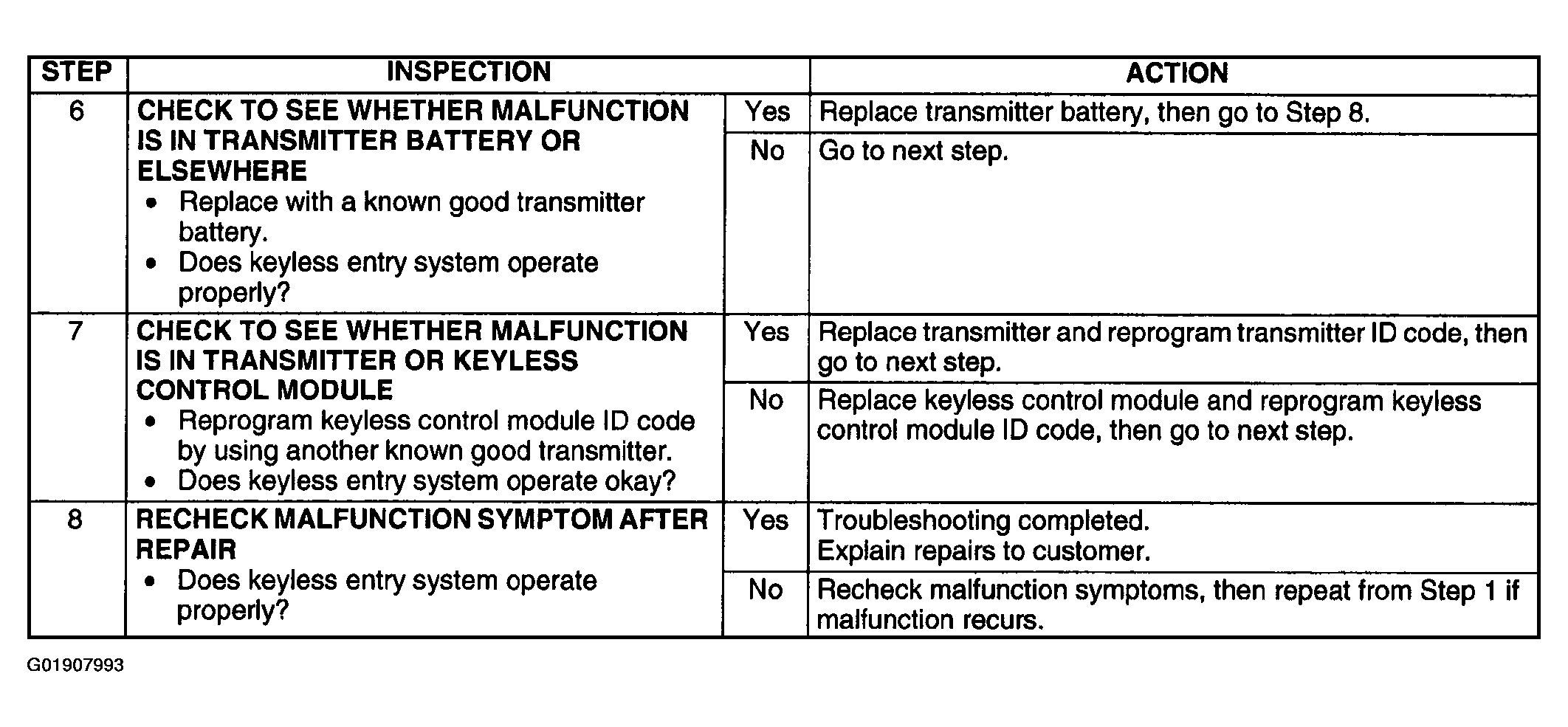

Fig 2: Diagnostic Procedure Chart - No. 3 Transmitter ID Code Cannot Be Reprogrammed (Steps 6-8)
G01907993Courtesy of MAZDA MOTORS CORP.
