Locknut Installation Note

  1. Install a new locknut and stake it as shown.

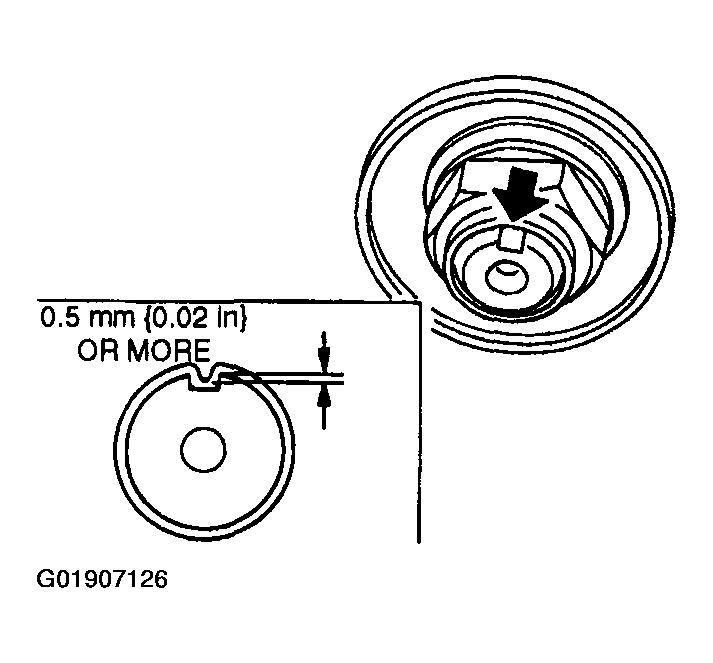

    Fig 1: Installing And Staking Locknut
    G01907126Courtesy of MAZDA MOTORS CORP.
