Front Blower Relay Removal/Installation

NOTE:
  • Because the lock section of the unit is damaged easily, do not remove the front blower relay from the bracket unless replacement is necessary. Always perform an inspection of the front blower relay before removal.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figures.

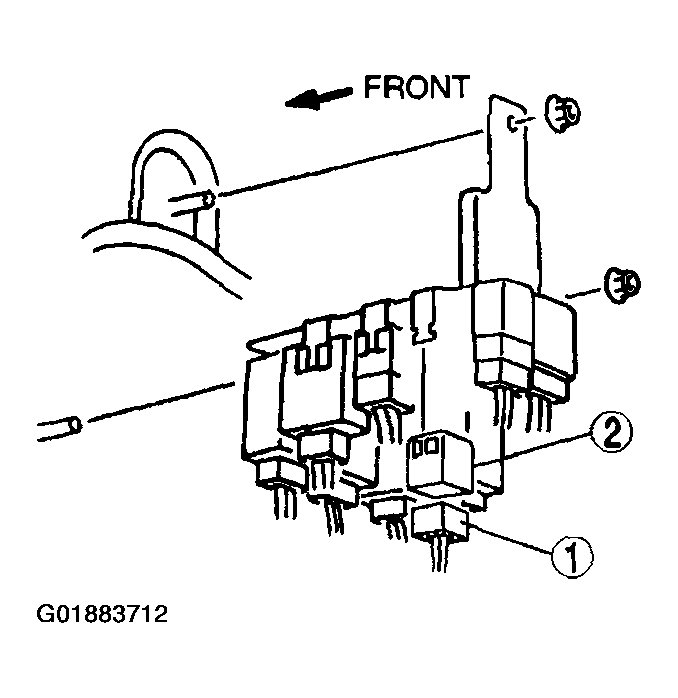

    Fig 1: Removing Front Blower Relay
    G01883712Courtesy of MAZDA MOTORS CORP.

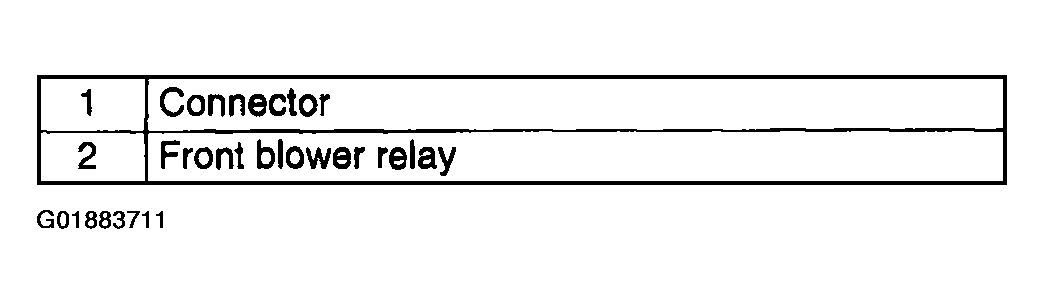

    Fig 2: Front Blower Relay Removal Sequence
    G01883711Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
