DTC U0100: TCM Cannot Receive Any Signals From Pcm: Notes

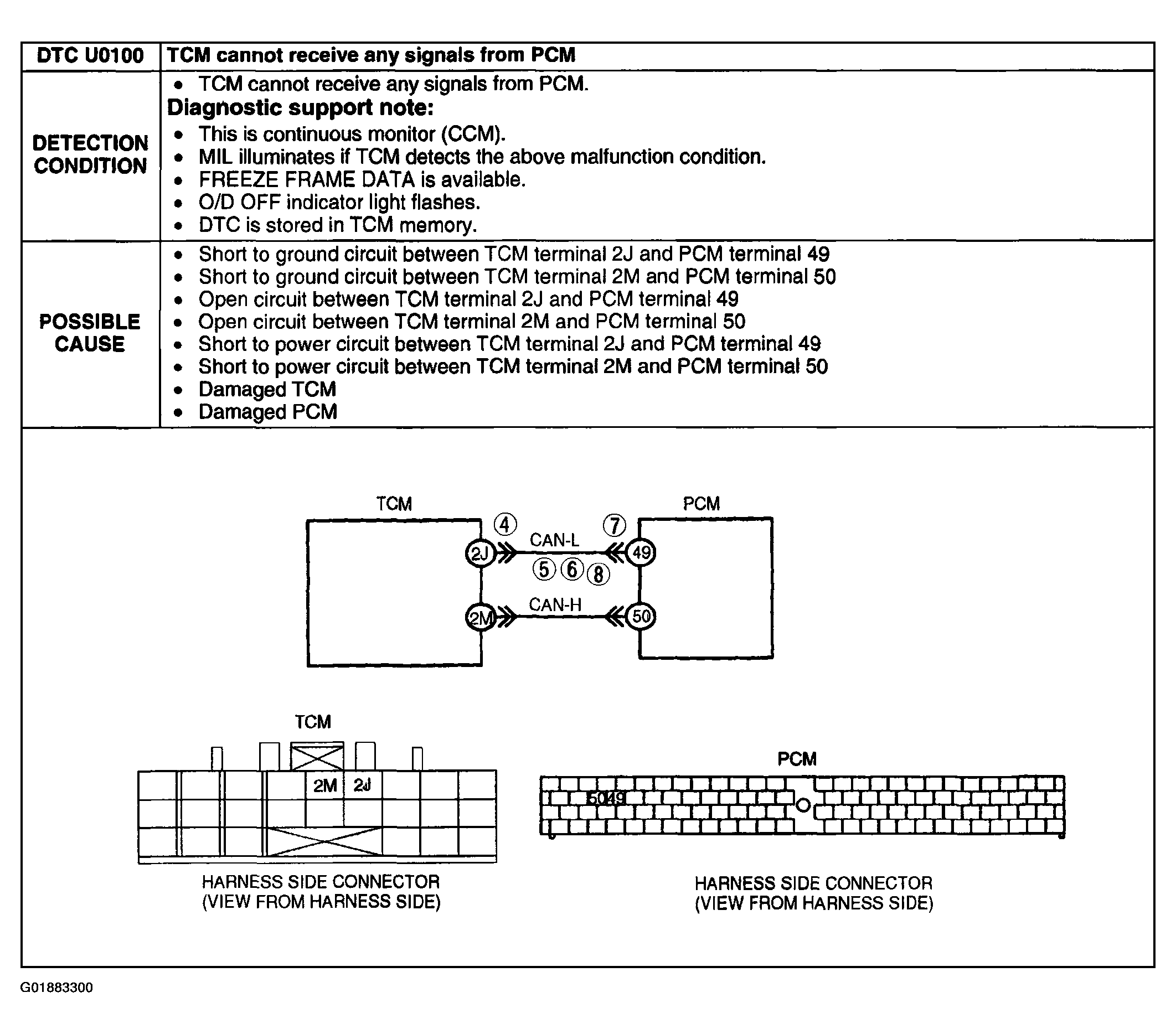

Fig 1: DTC U0100 - Detection Conditions & Possible Causes

G01883300

Courtesy of MAZDA MOTORS CORP.
