DTC P0715: Input/Turbine Speed Sensor Circuit Malfunction: Notes

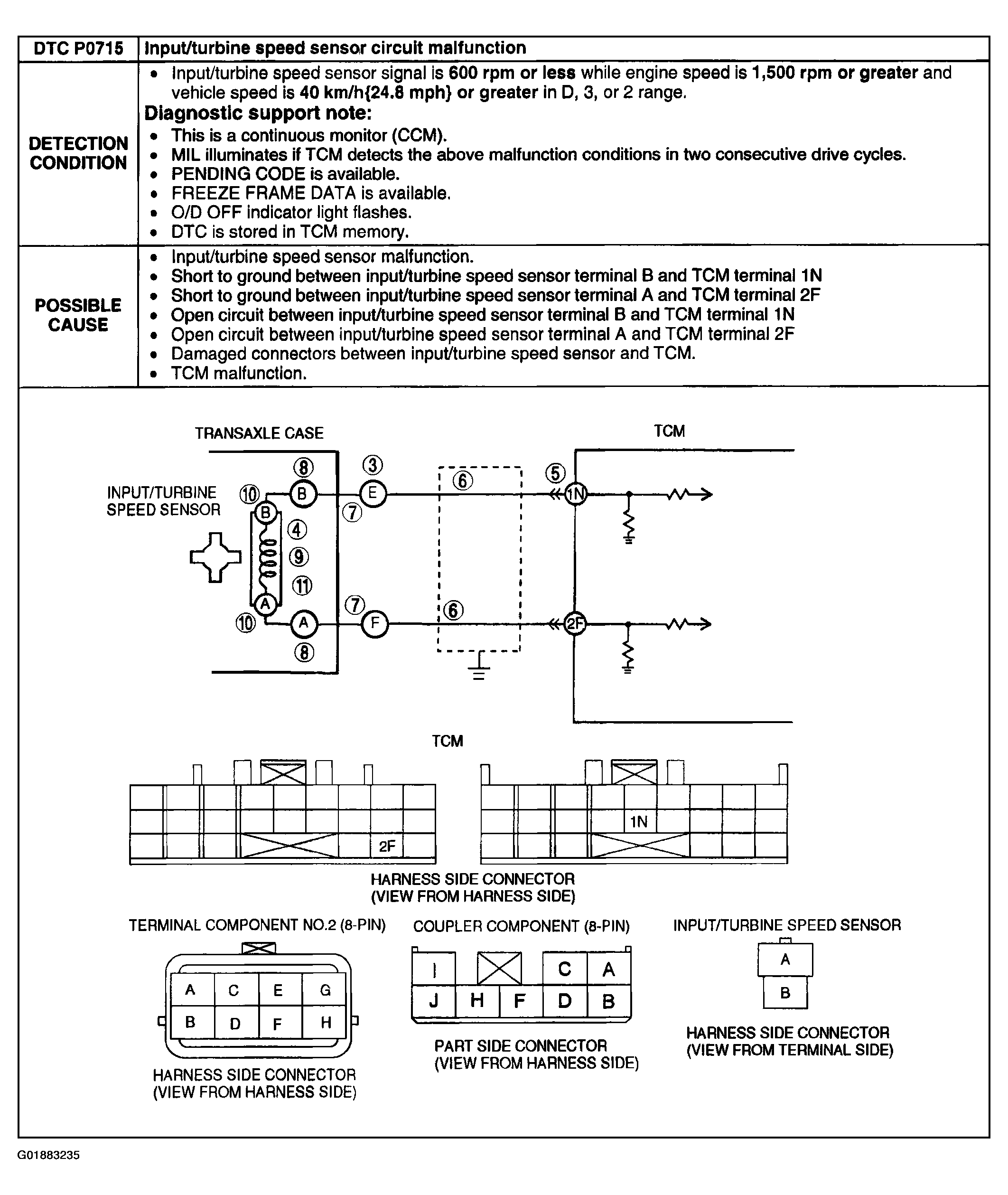

Fig 1: DTC P0715 - Detection Conditions & Possible Causes

G01883235

Courtesy of MAZDA MOTORS CORP.
