Airflow Mode Link Removal/Installation

Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Disconnect the airflow mode wire from the airflow mode link.
Remove in the order indicated in the figure below.

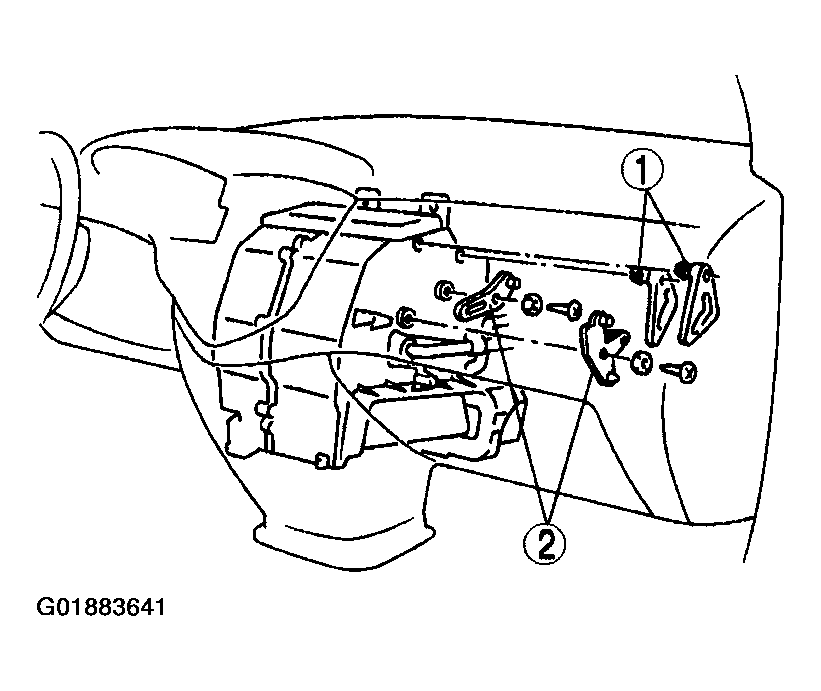

Fig 1: Airflow Mode Link Component Table
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
NOTE:
- Apply silicone grease or all-purpose grease to each link.

  Fig 2: Disconnecting Airflow Mode Wire From Airflow Mode Link
  Courtesy of MAZDA MOTORS CORP.
Adjust the airflow mode wire. (See FRONT CLIMATE CONTROL UNIT WIRE ADJUSTMENT .)
