Manual Transaxle Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Set the transaxle on a jack and lift into place.

Fig 1: Setting Transaxle On Jack And Lift Into Place
Courtesy of MAZDA MOTORS CORP.
Install the transaxle mounting bolts.
Install the stud of the No. 4 engine mount.
Tightening torque

27.4-40.2 N.m

{2.8-4.0 kgf.m, 20.2-29.6 ft.lbf}

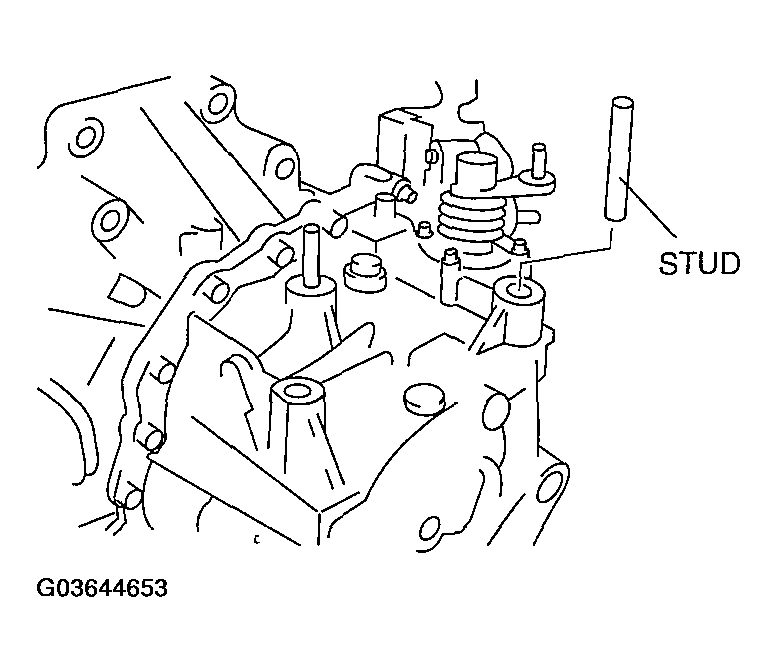

Fig 2: Installing Stud Of No. 4 Engine Mount
Courtesy of MAZDA MOTORS CORP.
Tighten the SST (49 E017 5A0)so that the engine is located at the specified position.
