G35M-R manual transaxle models

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SSTs.
  2. Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.

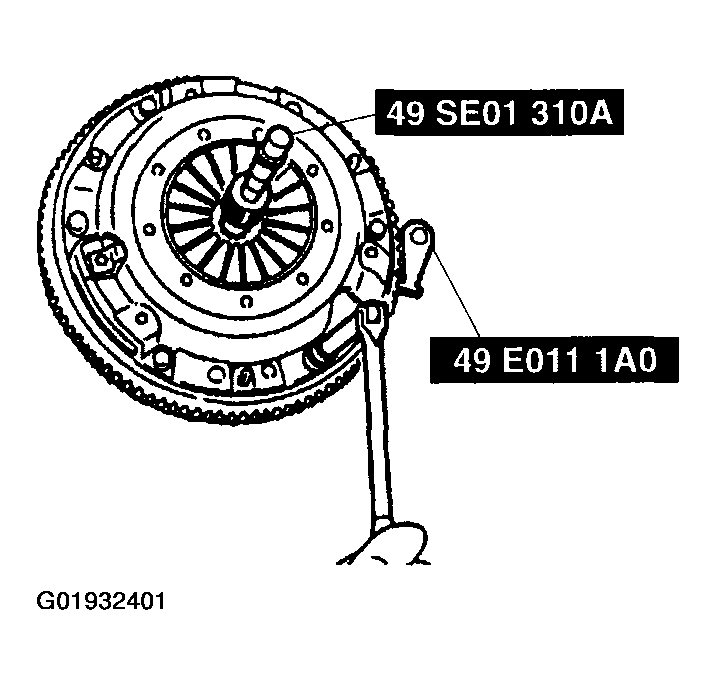

    Fig 1: Removing Clutch Cover And Disc (G35M-R)
    G01932401Courtesy of MAZDA MOTORS CORP.
  3. Remove the clutch cover and disc.
