Removal & Installation (Miata)

  1. Remove air hose. See INTAKE AIR SYSTEM .
  2. Remove in order indicated in illustration. See Fig 1.
  3. To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

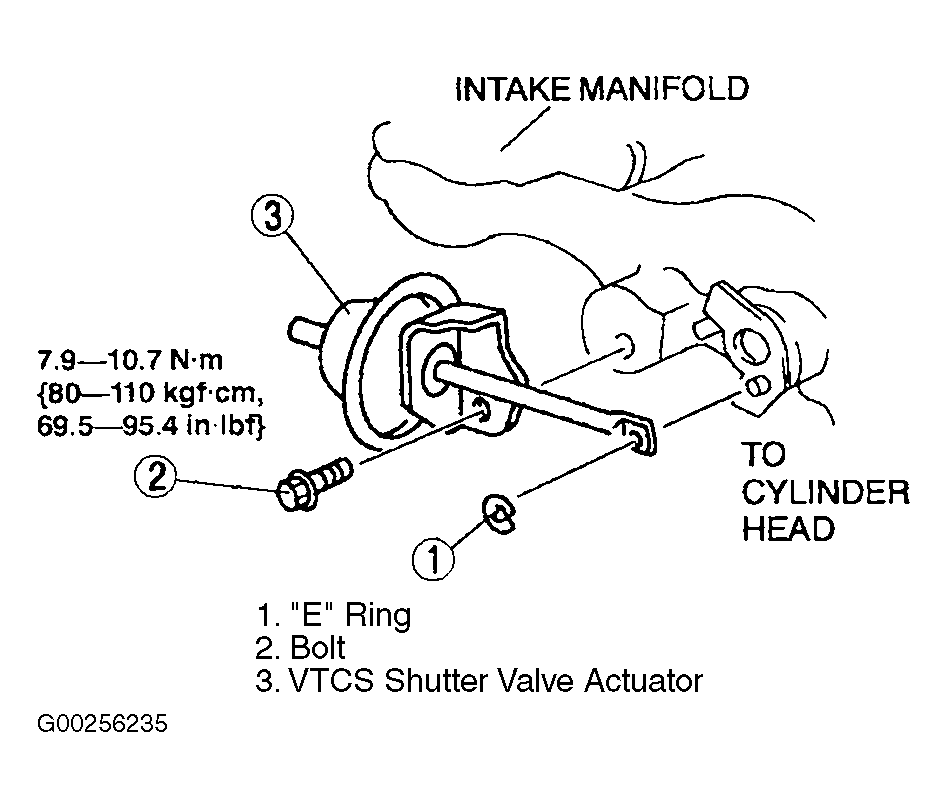

Fig 1: Removing & Installing VTCS Shutter Valve Actuator - Miata
G00256235Courtesy of MAZDA MOTORS CORP.
