Exhaust Manifold (LH) Installation Note

  1. Tighten the exhaust manifold installation nuts in the order shown.

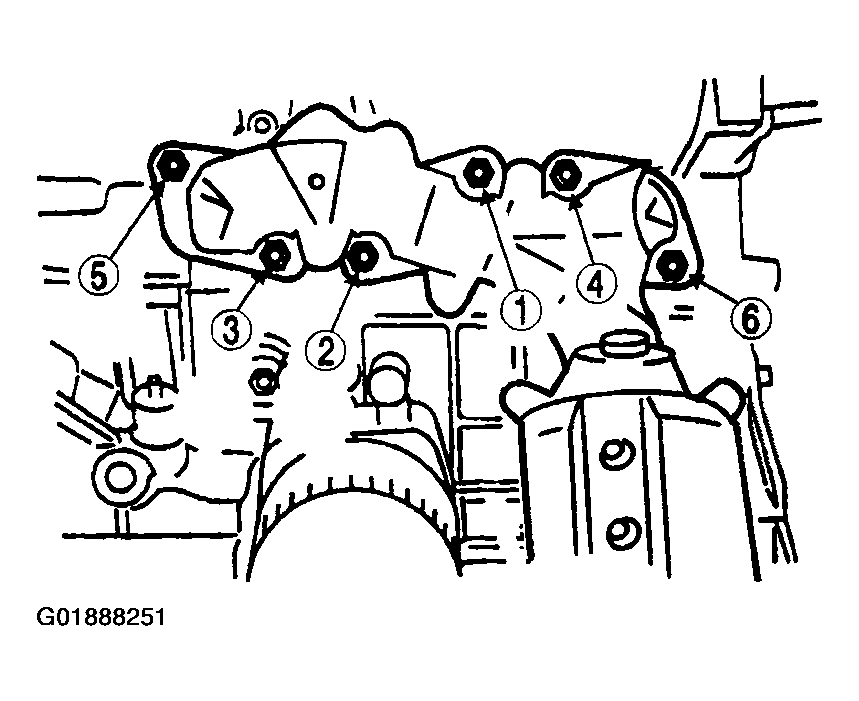

    Fig 1: Exhaust Manifold Installation Nuts Tightening Sequence (LH)
    G01888251Courtesy of MAZDA MOTORS CORP.
