Cargo Compartment Light Switch Inspection

  1. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  2. Disconnect the cargo compartment light switch connector.
  3. Inspect for continuity between the cargo compartment light switch terminals using an ohmmeter.
    • If not as specified, replace the liftgate lock.

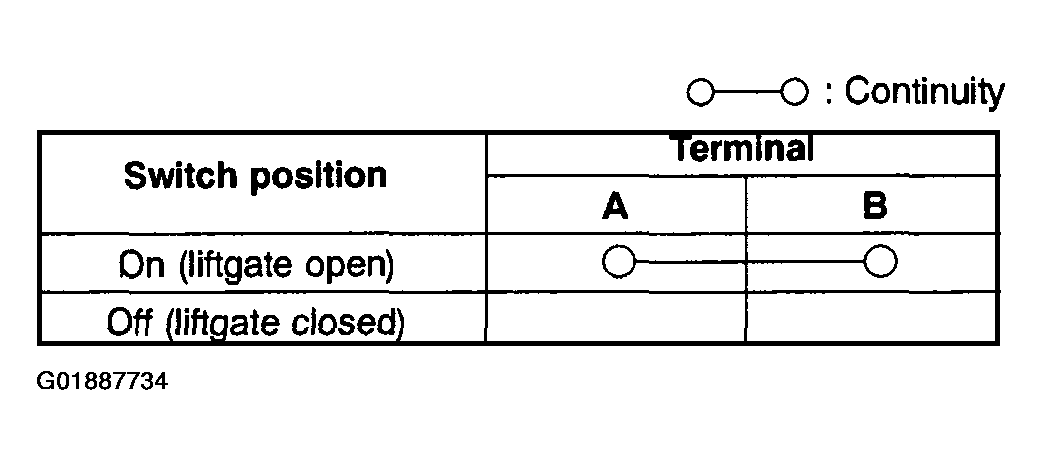

      Fig 1: Inspecting Cargo Compartment Light Switch (1 Of 2)
      G01887734Courtesy of MAZDA MOTORS CORP.

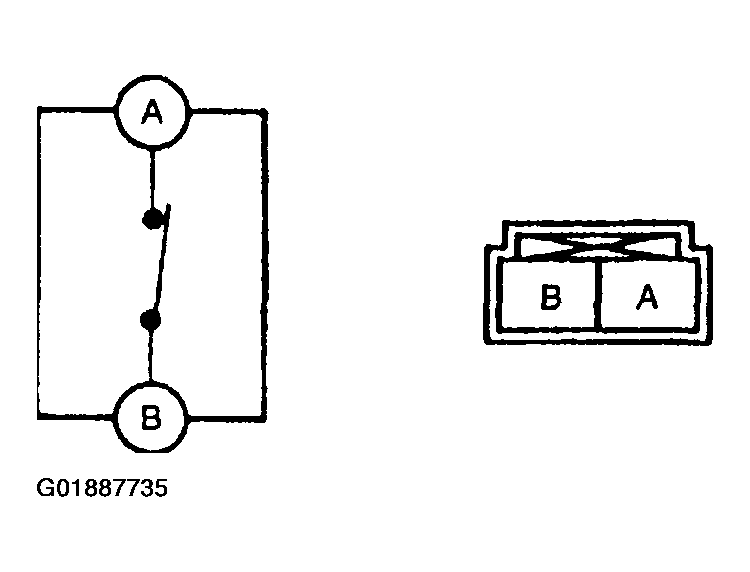

      Fig 2: Inspecting Cargo Compartment Light Switch (2 Of 2)
      G01887735Courtesy of MAZDA MOTORS CORP.
