Home >> Mazda >> 2003 >> MPV ES >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> On-Board Diagnostic [Cruise Control System] >> DTC 31: Brake Switch >> Notes

DTC 31: Brake Switch: Notes

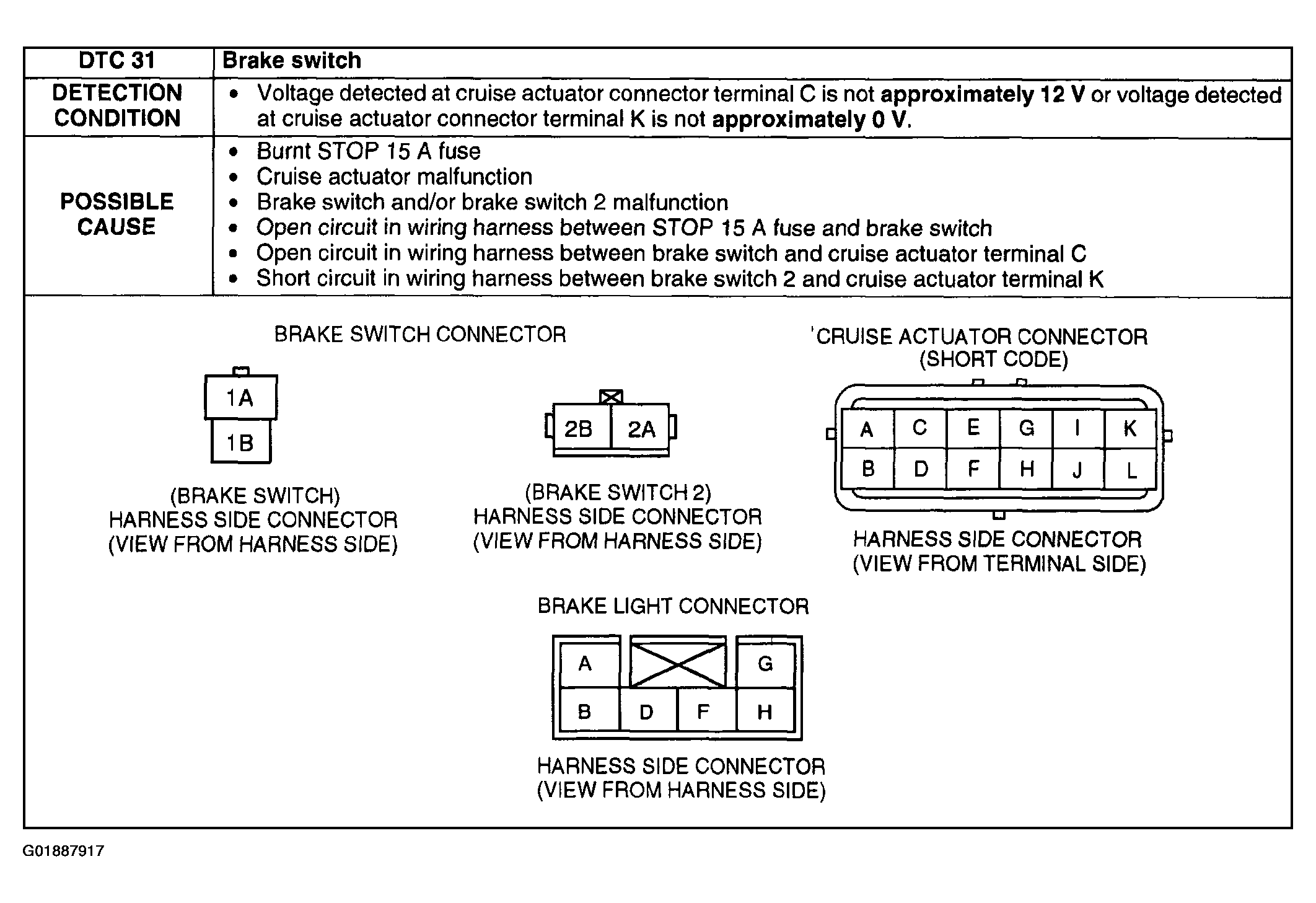

Fig 1: Inspection Of Diagnostic Trouble Code (DTC 31)

G01887917

Courtesy of MAZDA MOTORS CORP.
