DTC 07: Brake Switch, Brake Switch 2: Notes

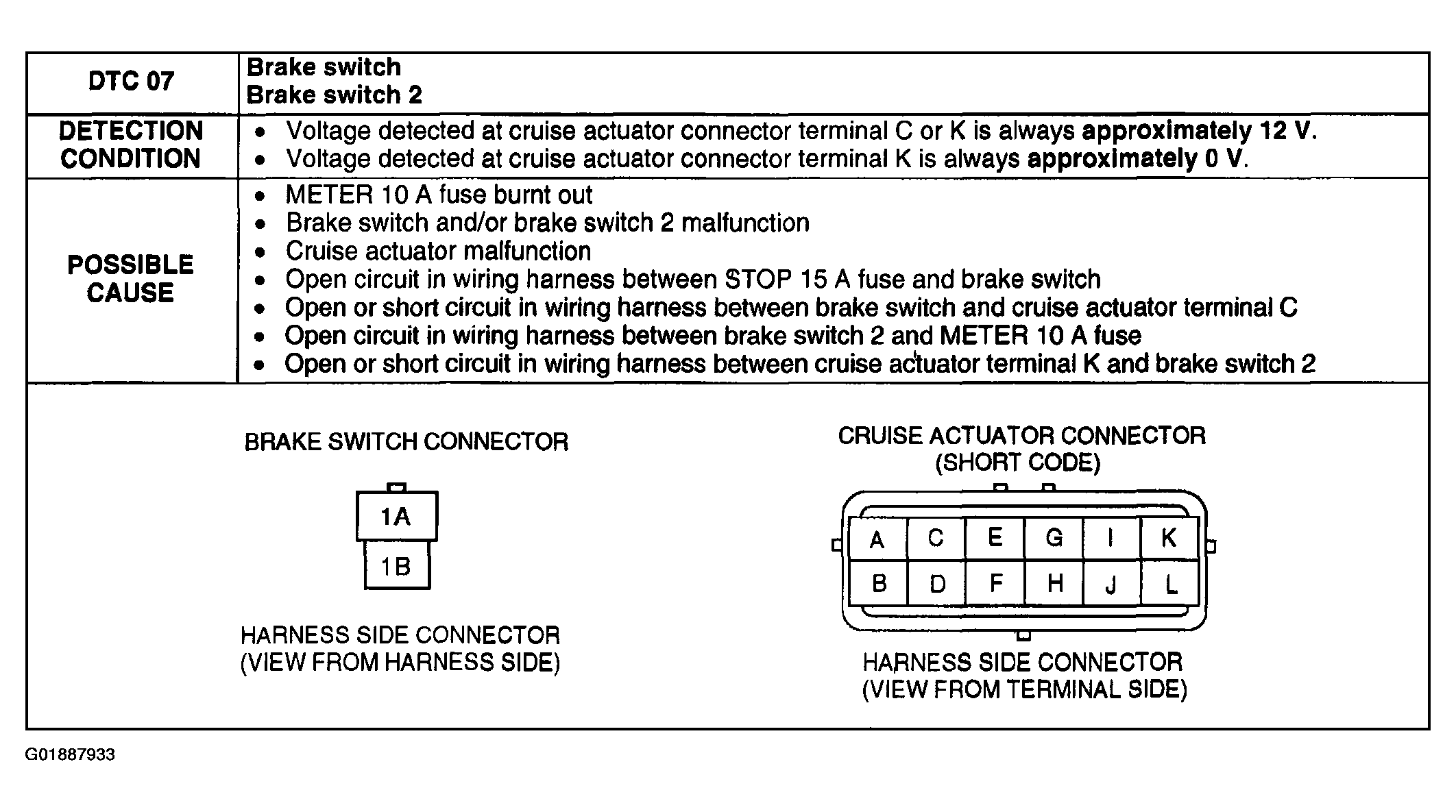

Fig 1: Inspection Of Diagnostic Trouble Code (DTC 07)

G01887933

Courtesy of MAZDA MOTORS CORP.
