Condition Code List

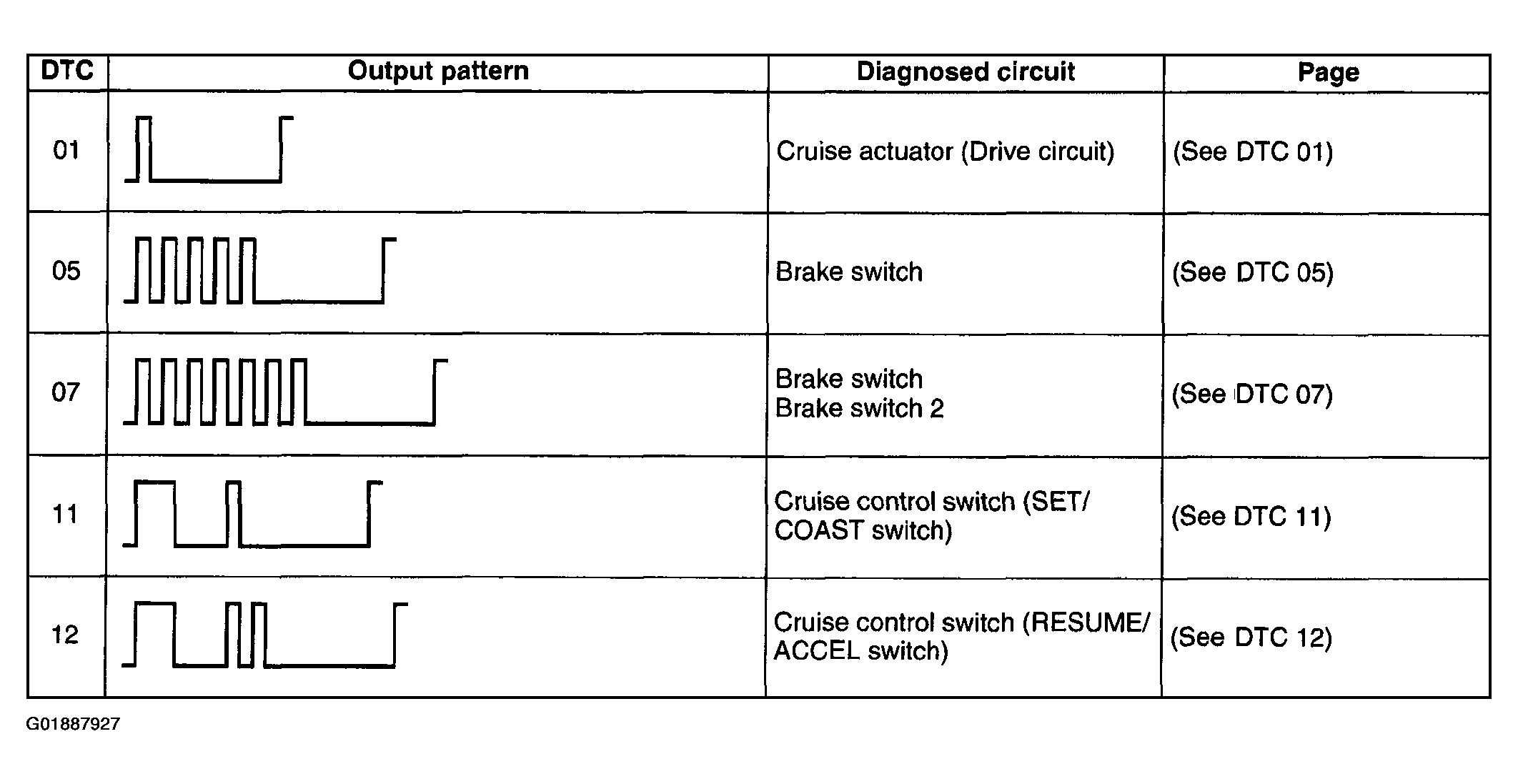

Fig 1: Condition Code List (1 Of 2)
G01887927Courtesy of MAZDA MOTORS CORP.

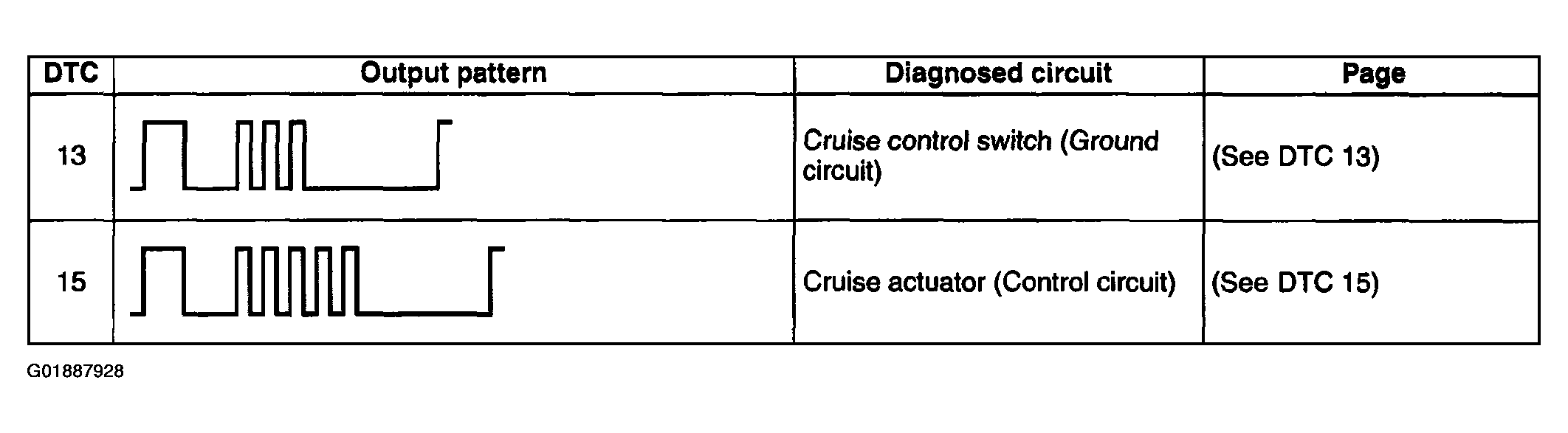

Fig 2: Condition Code List (2 Of 2)
G01887928Courtesy of MAZDA MOTORS CORP.
NOTE:
  • When two or more DTCs are indicated, inspect the malfunction with the smallest number first.
