Automatic Transmission External Controls Pinpoint Test 2: Shift Control Is Out Of Proper Gear Relationship

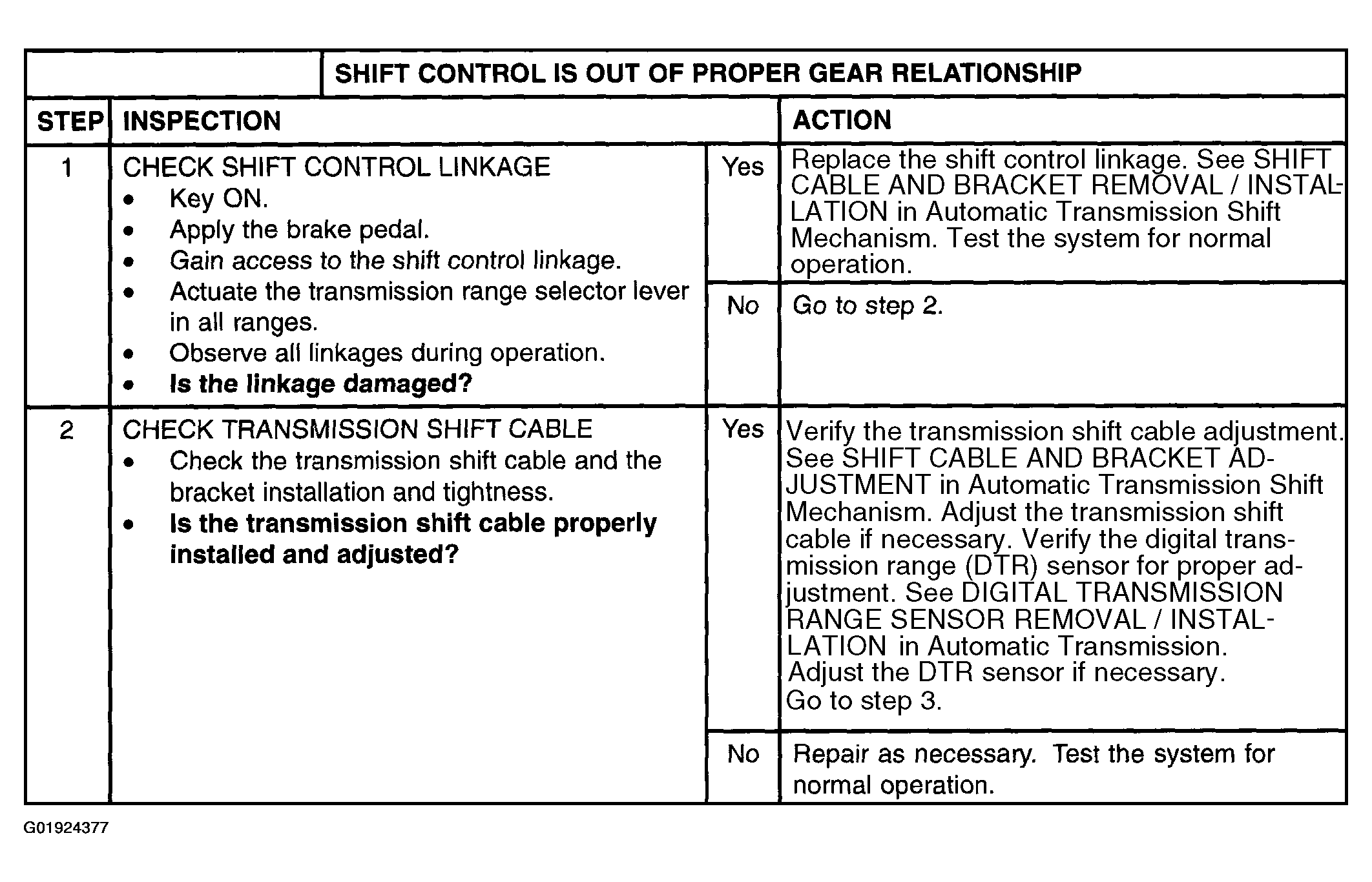

Fig 1: Automatic Transmission External Controls Pinpoint Test 2: Shift Control Is Out Of Proper Gear Relationship (Steps 1-2)
G01924377Courtesy of MAZDA MOTORS CORP.

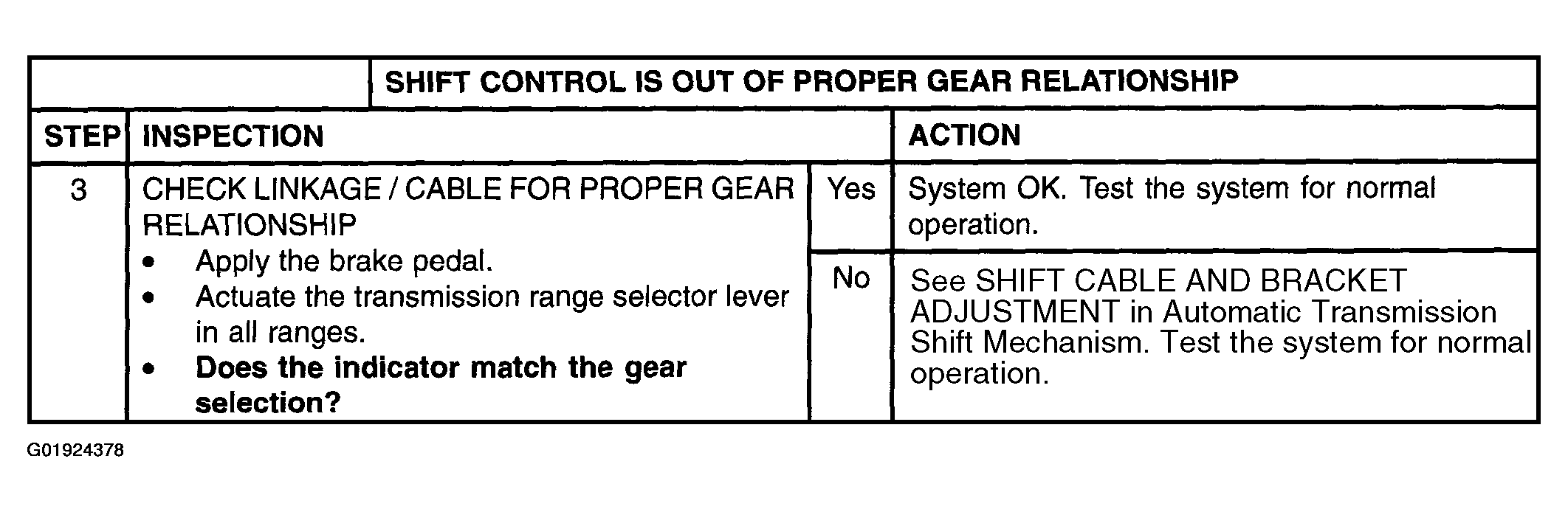

Fig 2: Automatic Transmission External Controls Pinpoint Test 2: Shift Control Is Out Of Proper Gear Relationship (Step 3)
G01924378Courtesy of MAZDA MOTORS CORP.
