Climate Control Specifications
Climate Control Specifications

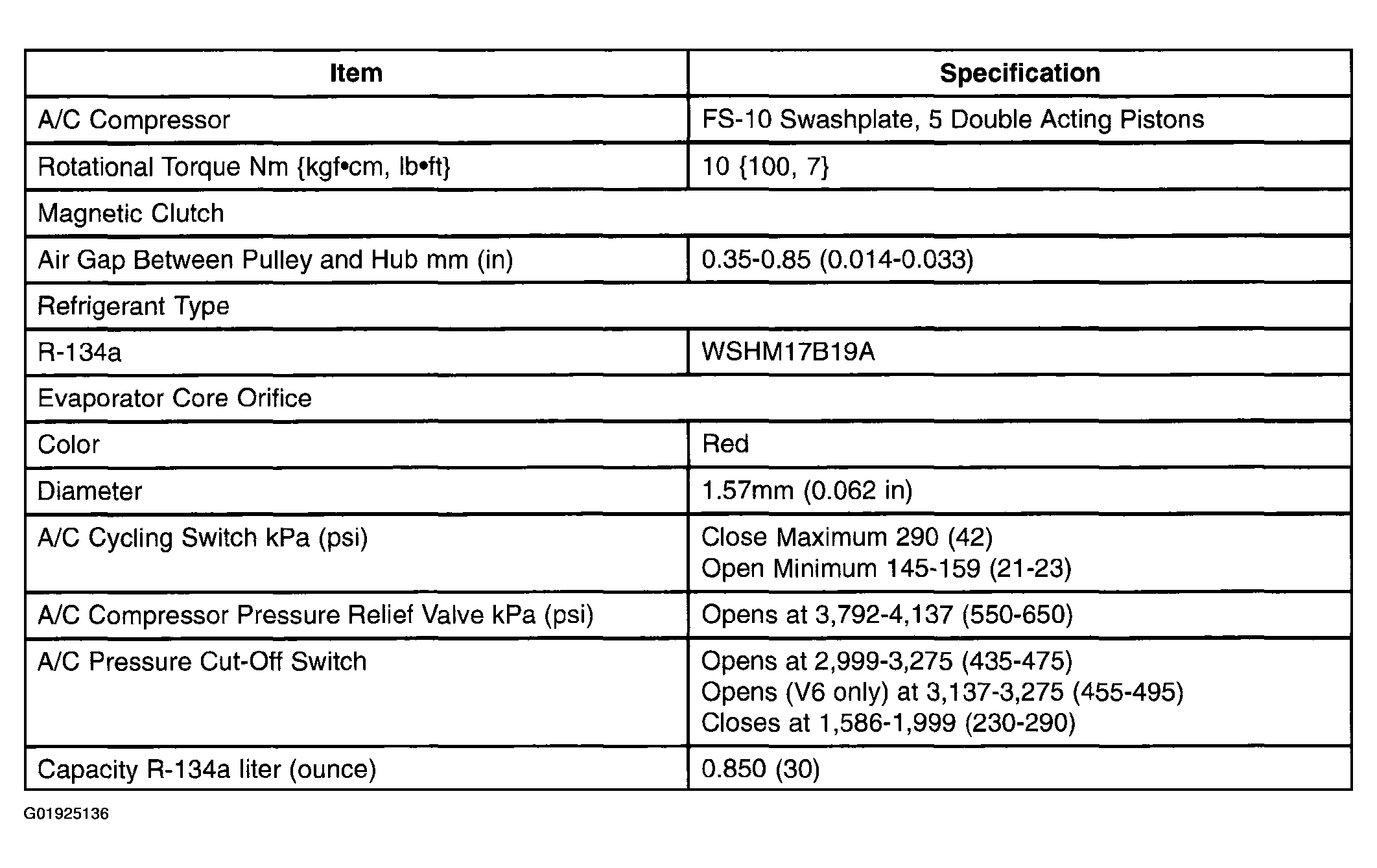

Fig 1: Climate Control Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
