NOTE:

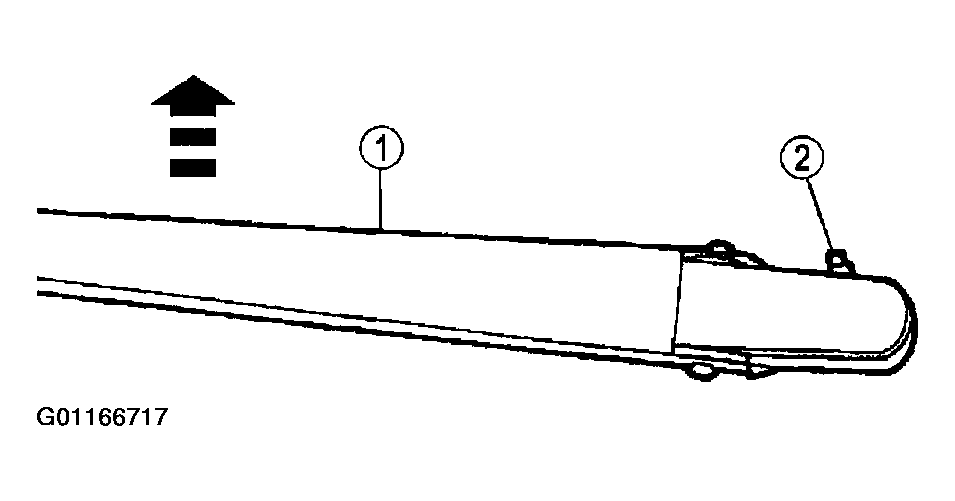

Numbers in parenthesis correspond to numbers in illustration.
Pull up on the pivot arm (1).
Pull out on the retainer tabs (2) and remove pivot arm.
