Home >> Mazda >> 2003 >> B4000 Base, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Symptom Troubleshooting (Windows/Mirrors) >> Symptom Troubleshooting Chart - Power Windows

Symptom Troubleshooting Chart - Power Windows

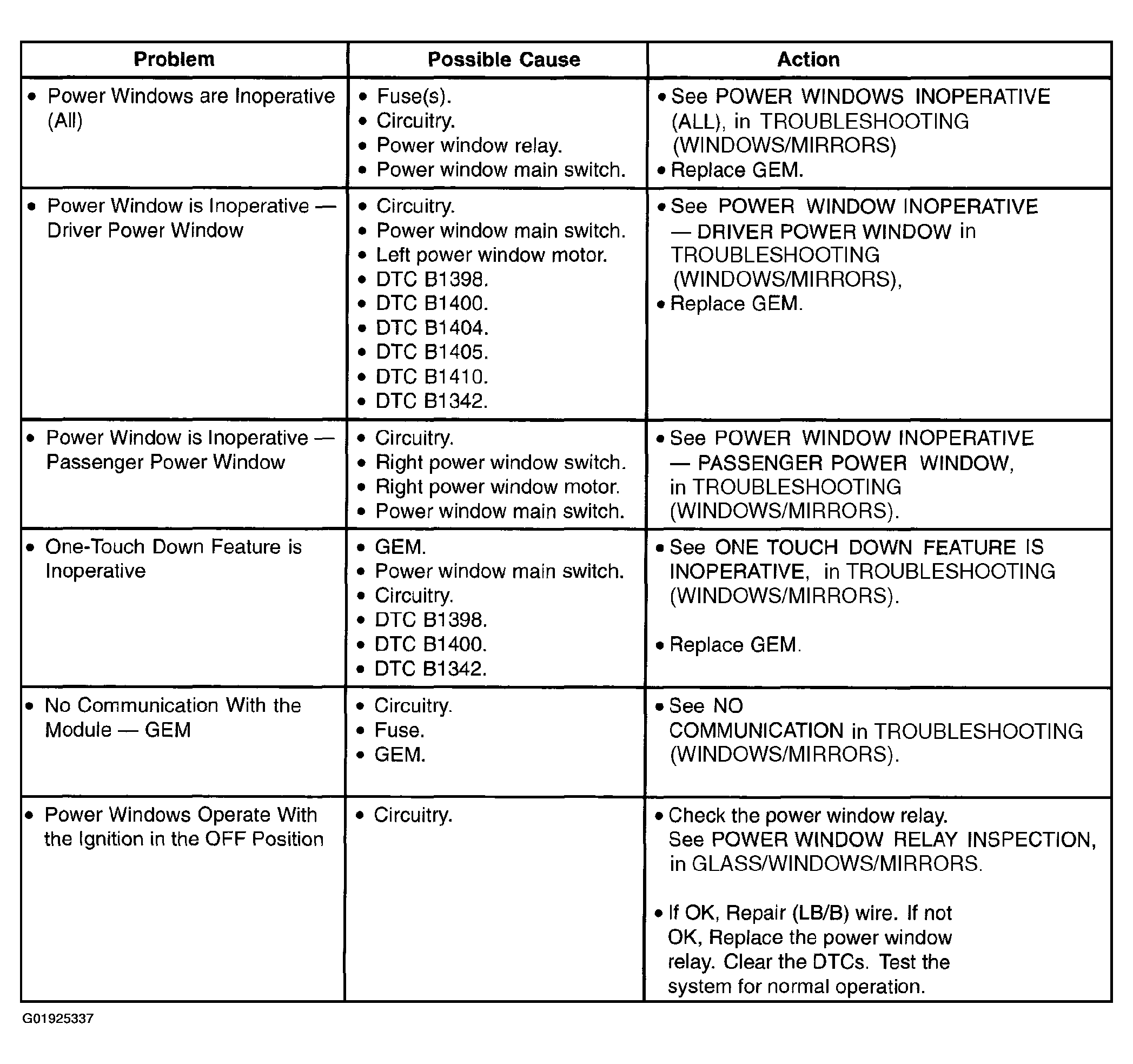

Fig 1: Power Windows Troubleshooting Symptom Chart
G01925337Courtesy of MAZDA MOTORS CORP.
