Home >> Mazda >> 2003 >> B4000 Base, Standard >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Trim >> Instrument Panel Removal/Installation >> Notes

Instrument Panel Removal/Installation: Notes

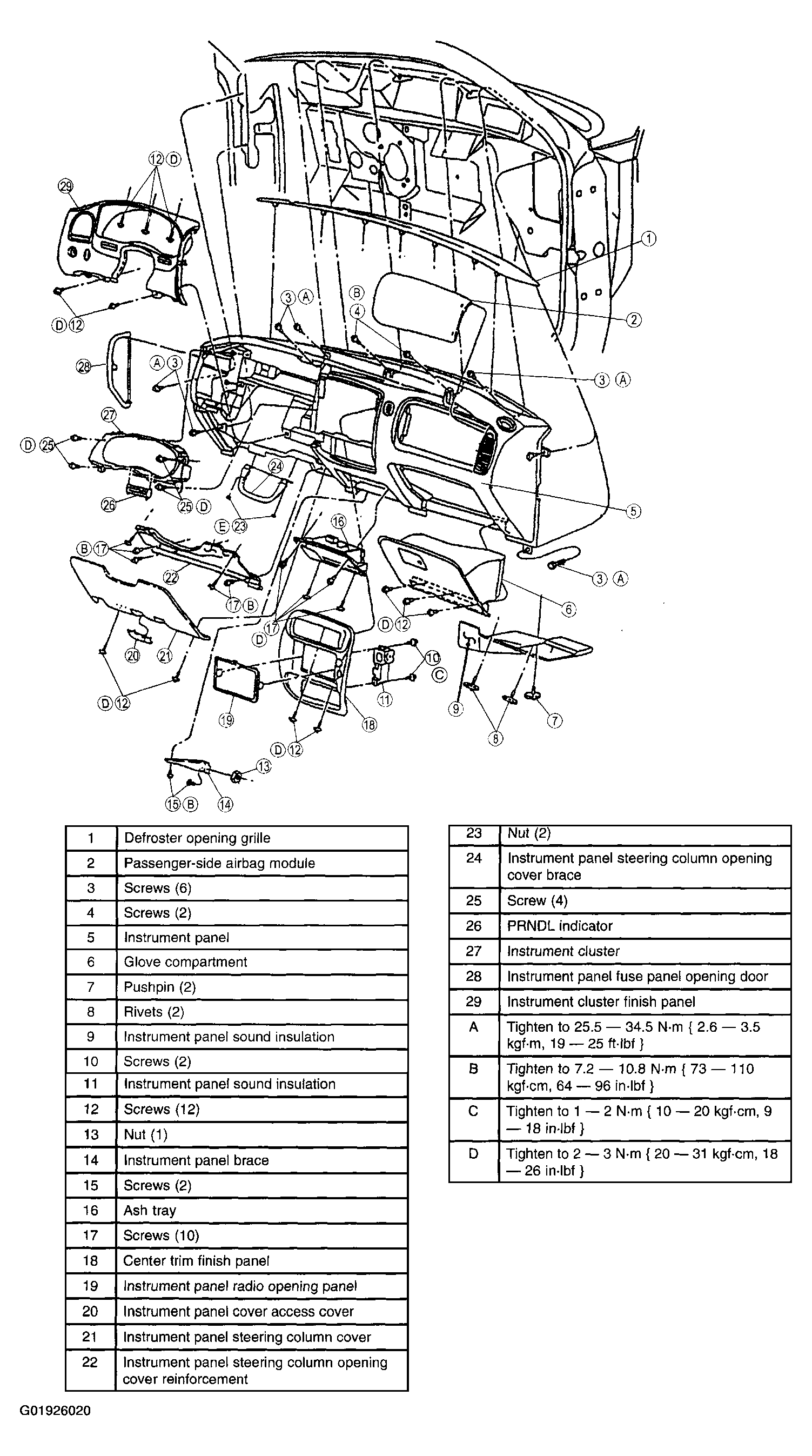

Fig 1: Instrument Panel Components

G01926020

Courtesy of MAZDA MOTORS CORP.
