Symptom Troubleshooting Chart - Security And Locks

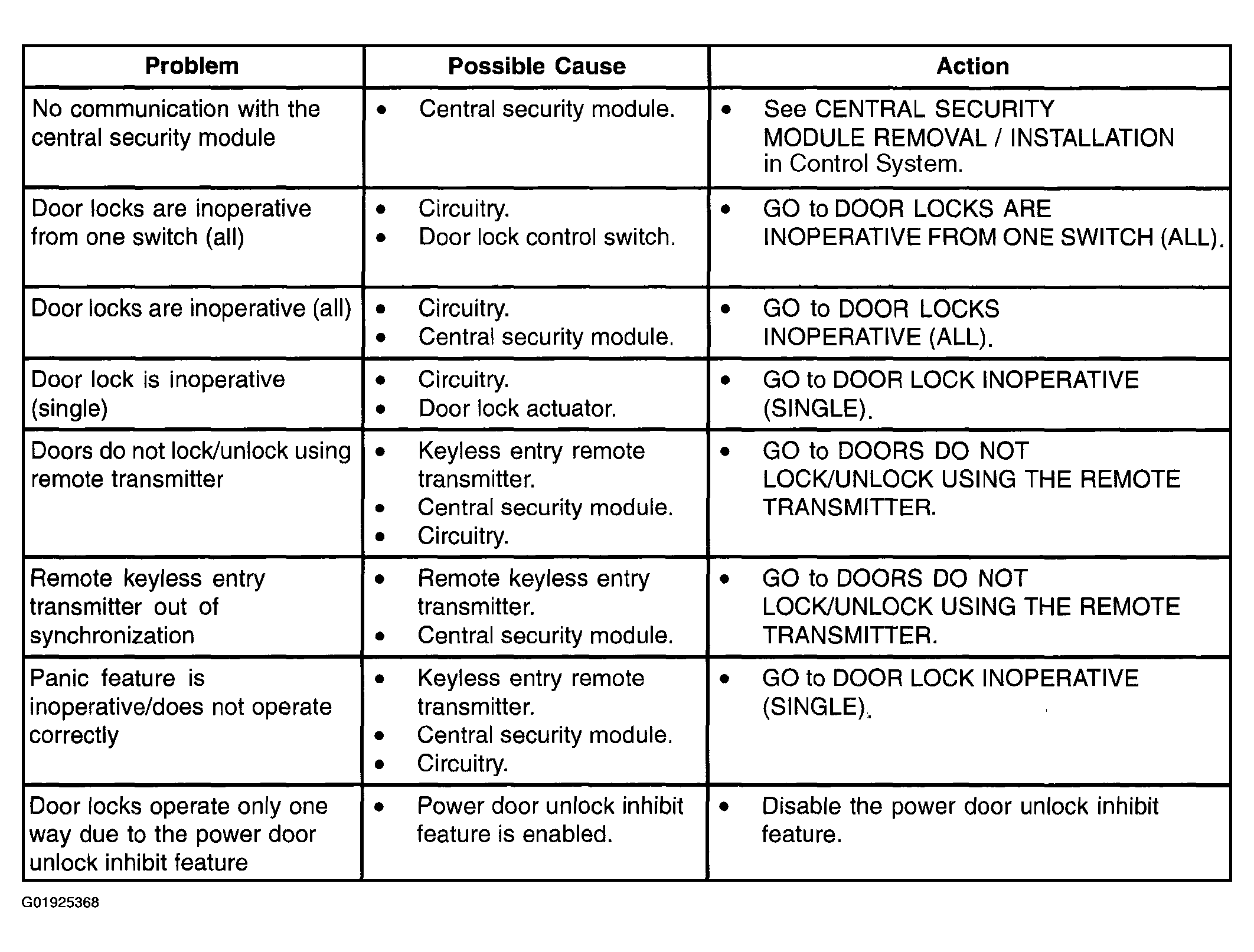

Fig 1: Symptom Troubleshooting Chart (Security And Locks)

G01925368

Courtesy of MAZDA MOTORS CORP.
