Module Does Not Respond To The WDS Tester - Diagnostic Monitor

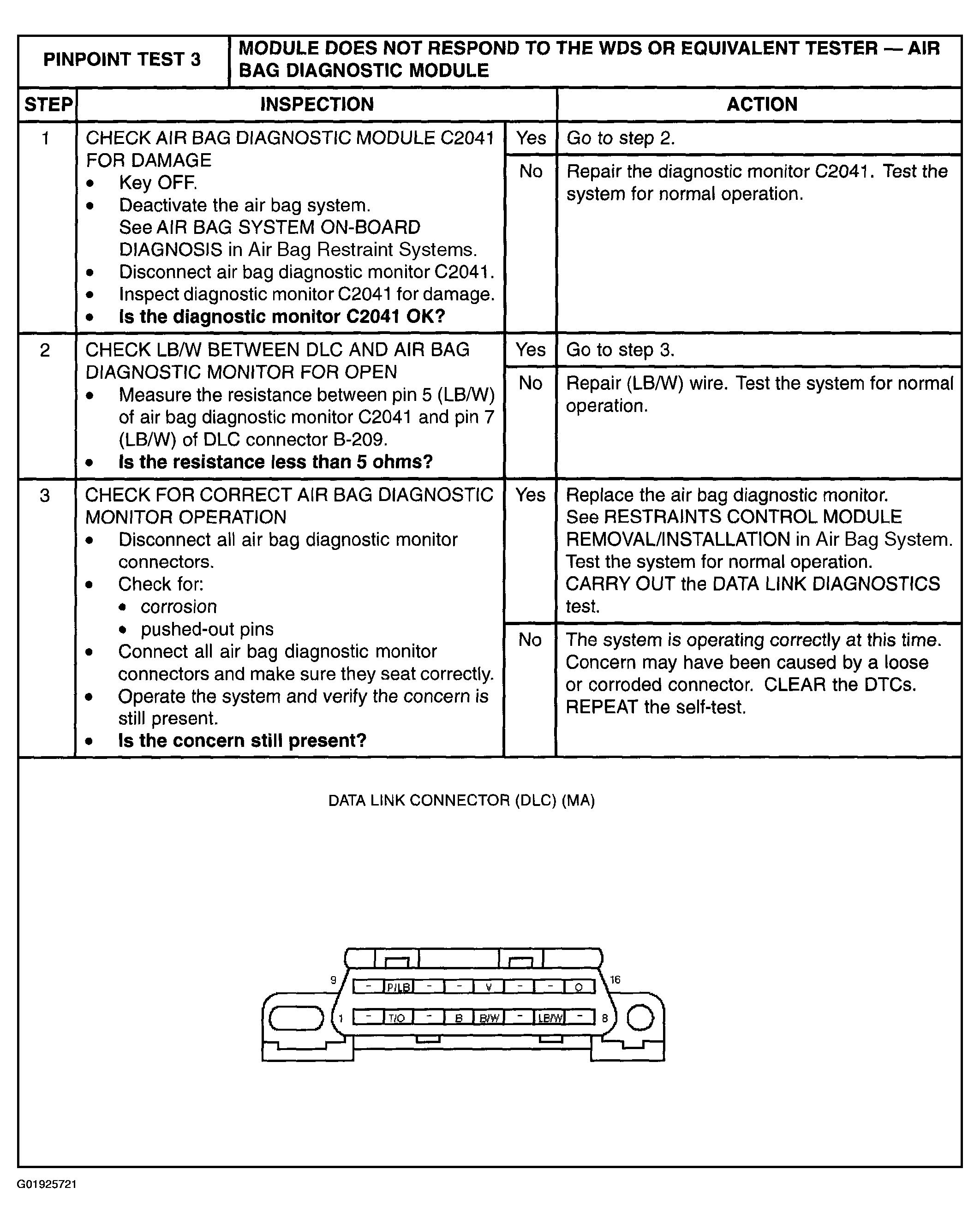

Fig 1: Diagnosis Procedure -- Diagnostic Monitor

G01925721

Courtesy of MAZDA MOTORS CORP.
