Module Does Not Respond To The WDS Tester (Pcm)

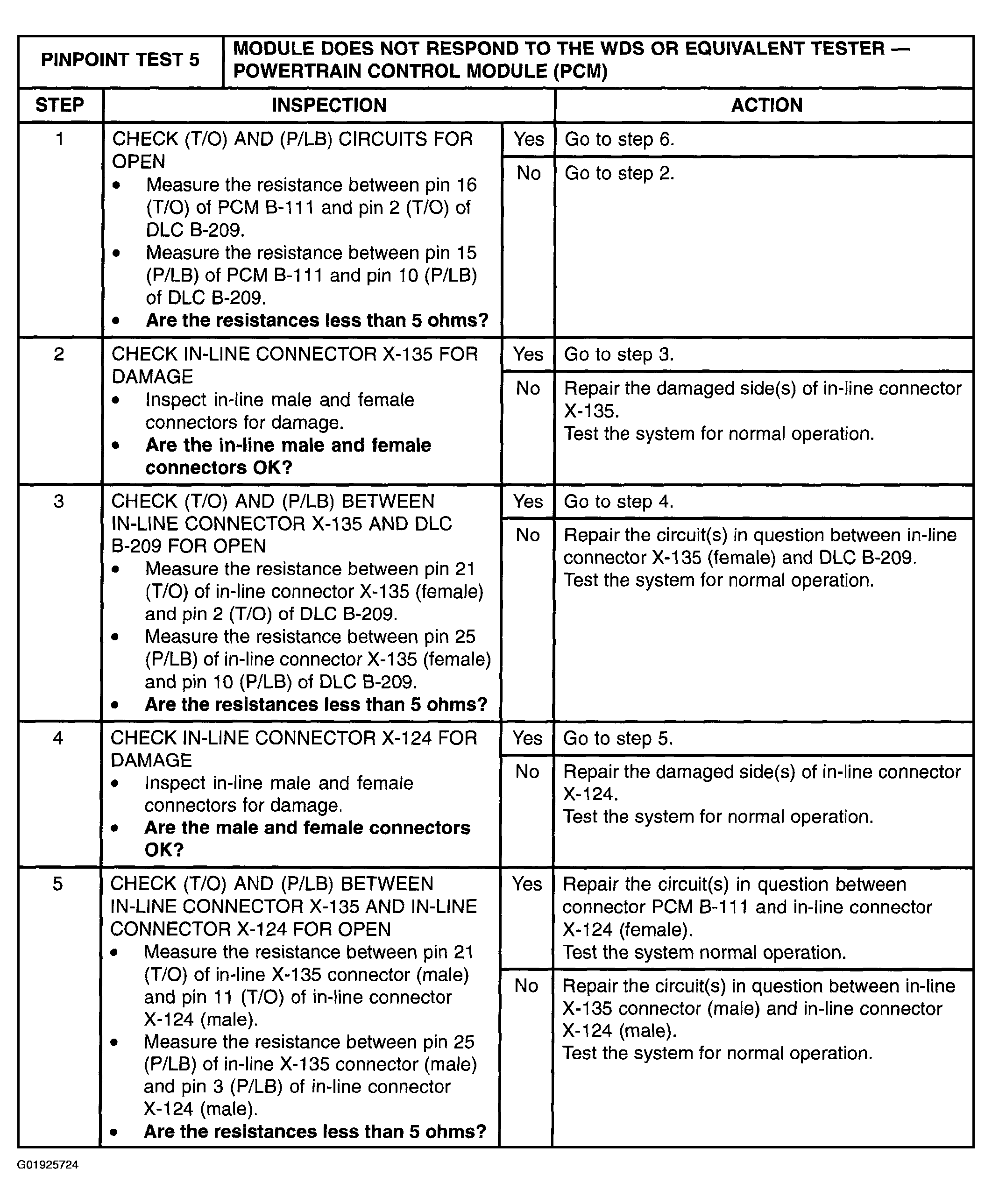

Fig 1: Diagnosis Procedure -- Module Does Not Respond To The WDS Tester (PCM) (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

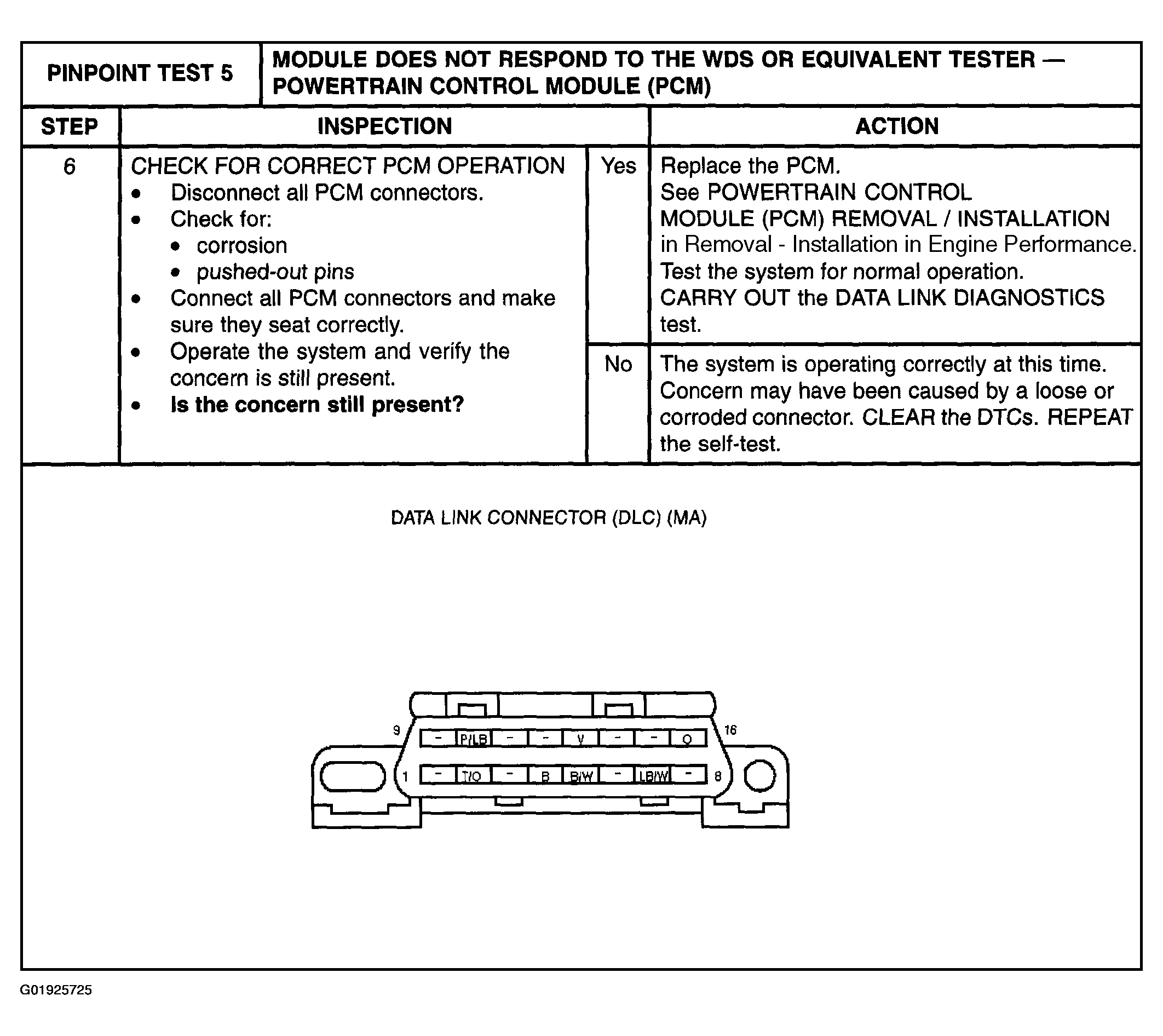

Fig 2: Diagnosis Procedure -- Module Does Not Respond To The WDS Tester (PCM) (Step 6)

Courtesy of MAZDA MOTORS CORP.

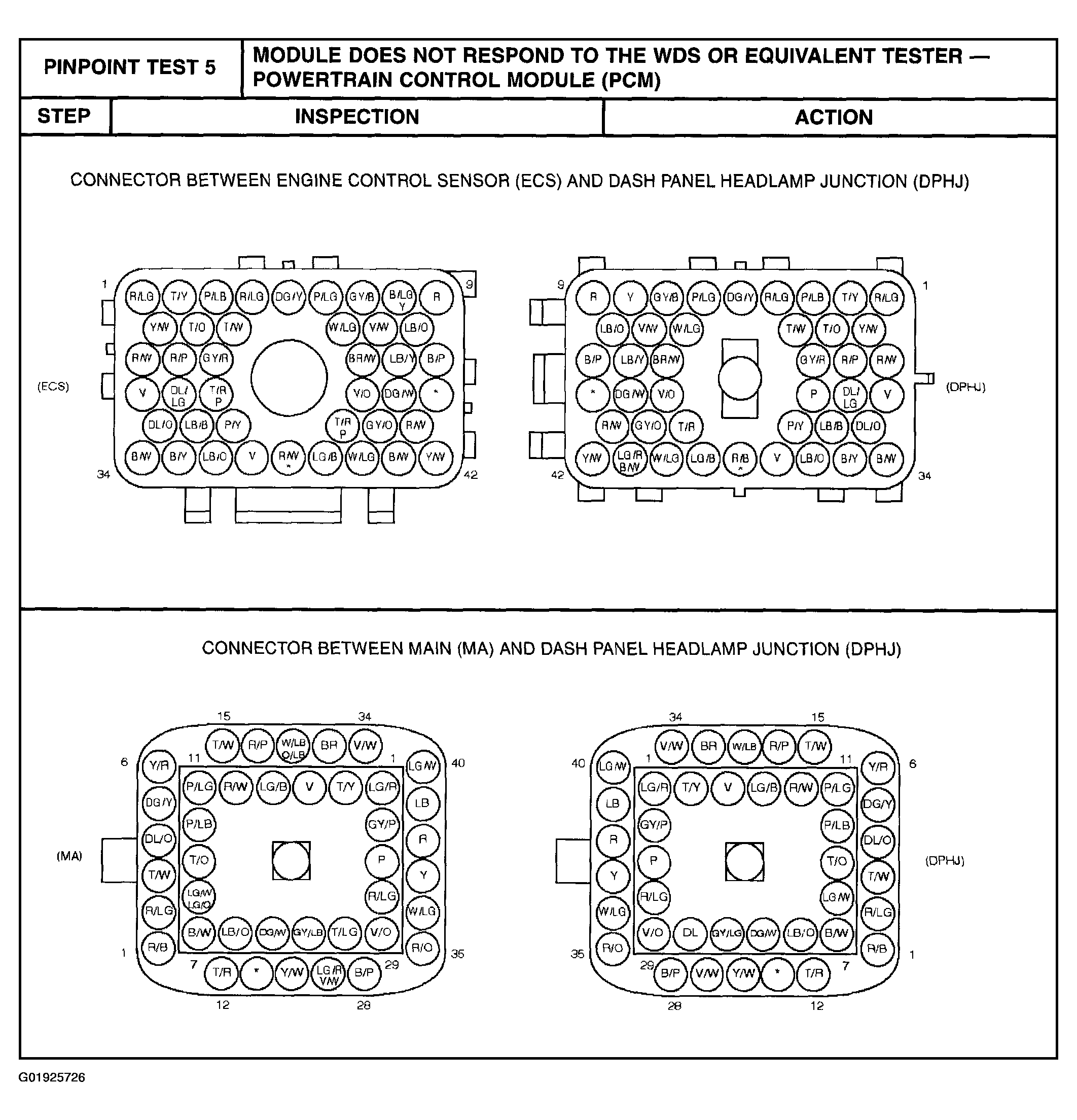

Fig 3: Identifying Inline Connectors

Courtesy of MAZDA MOTORS CORP.
