GEM Parameter Identification (PID) Index

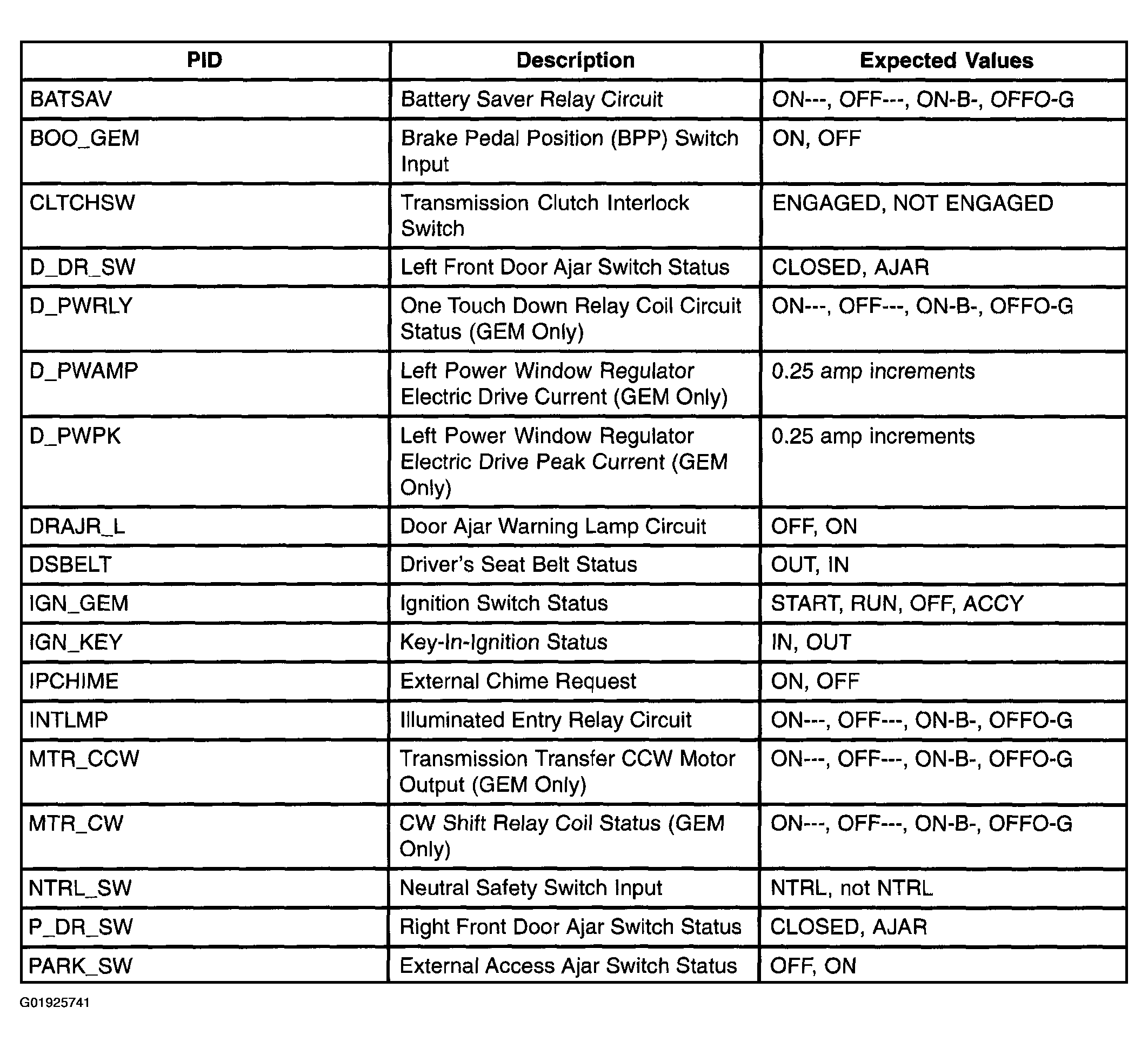

Fig 1: GEM Parameter Identification (PID) Index (1 Of 2)
G01925741Courtesy of MAZDA MOTORS CORP.

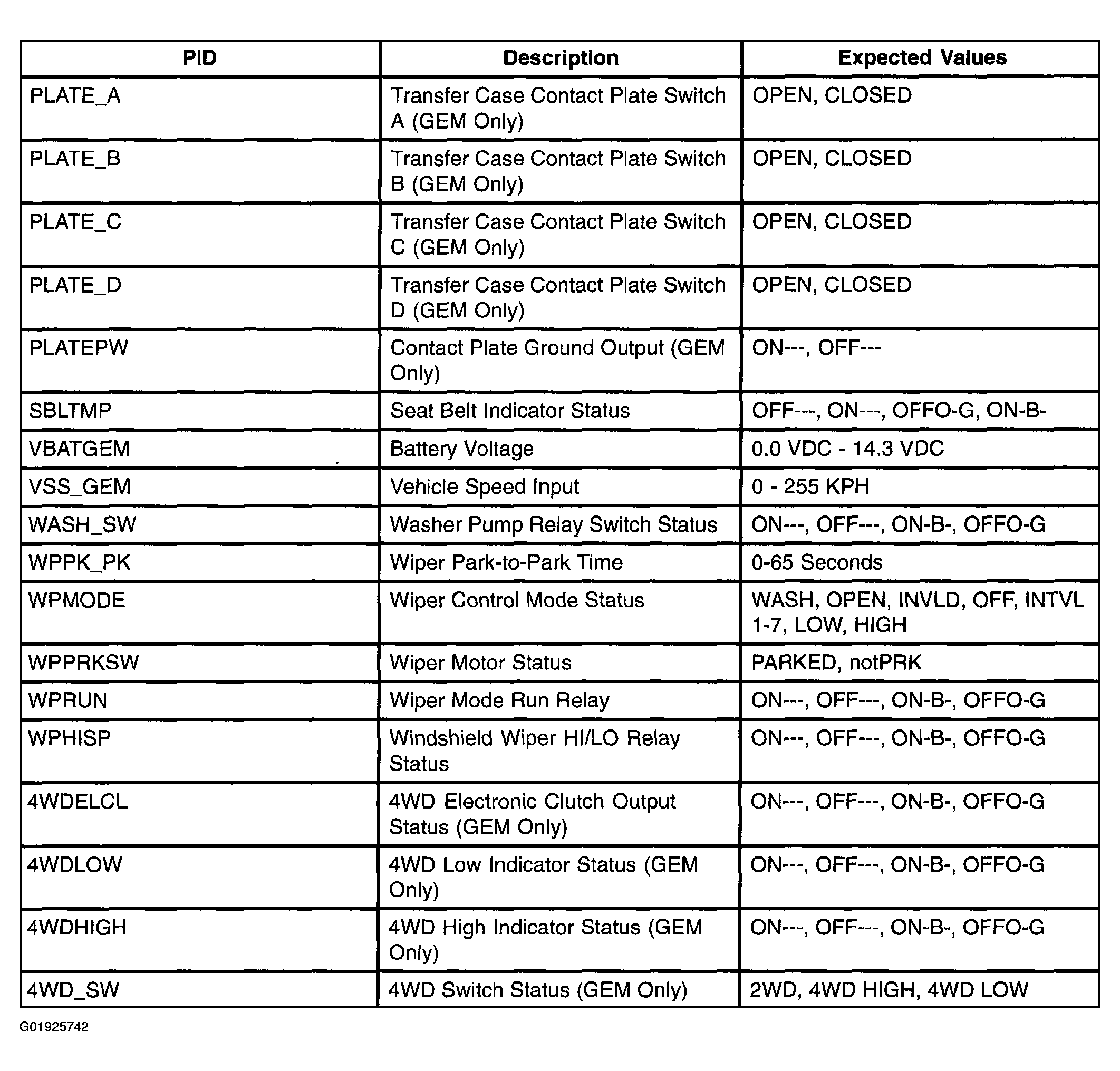

Fig 2: GEM Parameter Identification (PID) Index (2 Of 2)
G01925742Courtesy of MAZDA MOTORS CORP.
