GEM Active Command Index

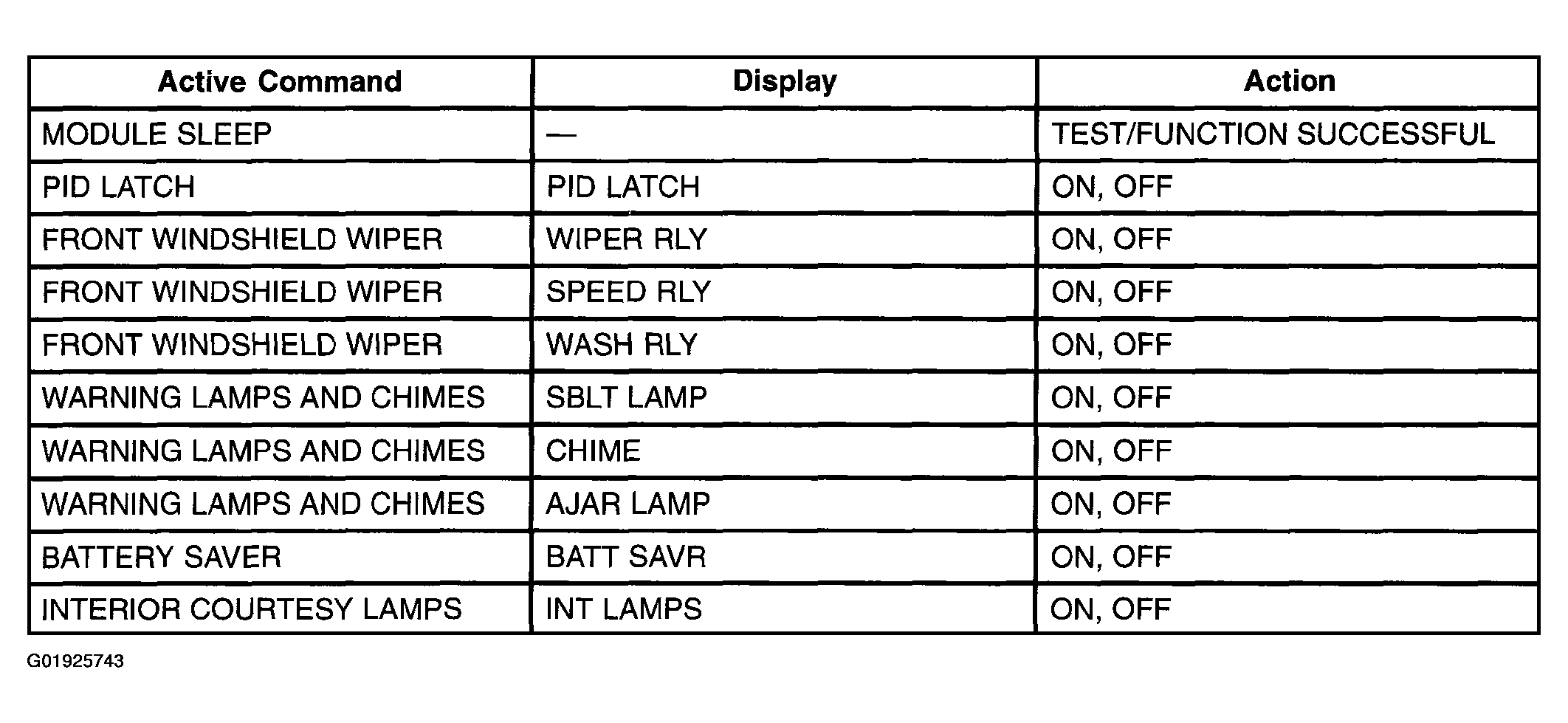

Fig 1: GEM Active Command Index (1 Of 2)

G01925743

Courtesy of MAZDA MOTORS CORP.

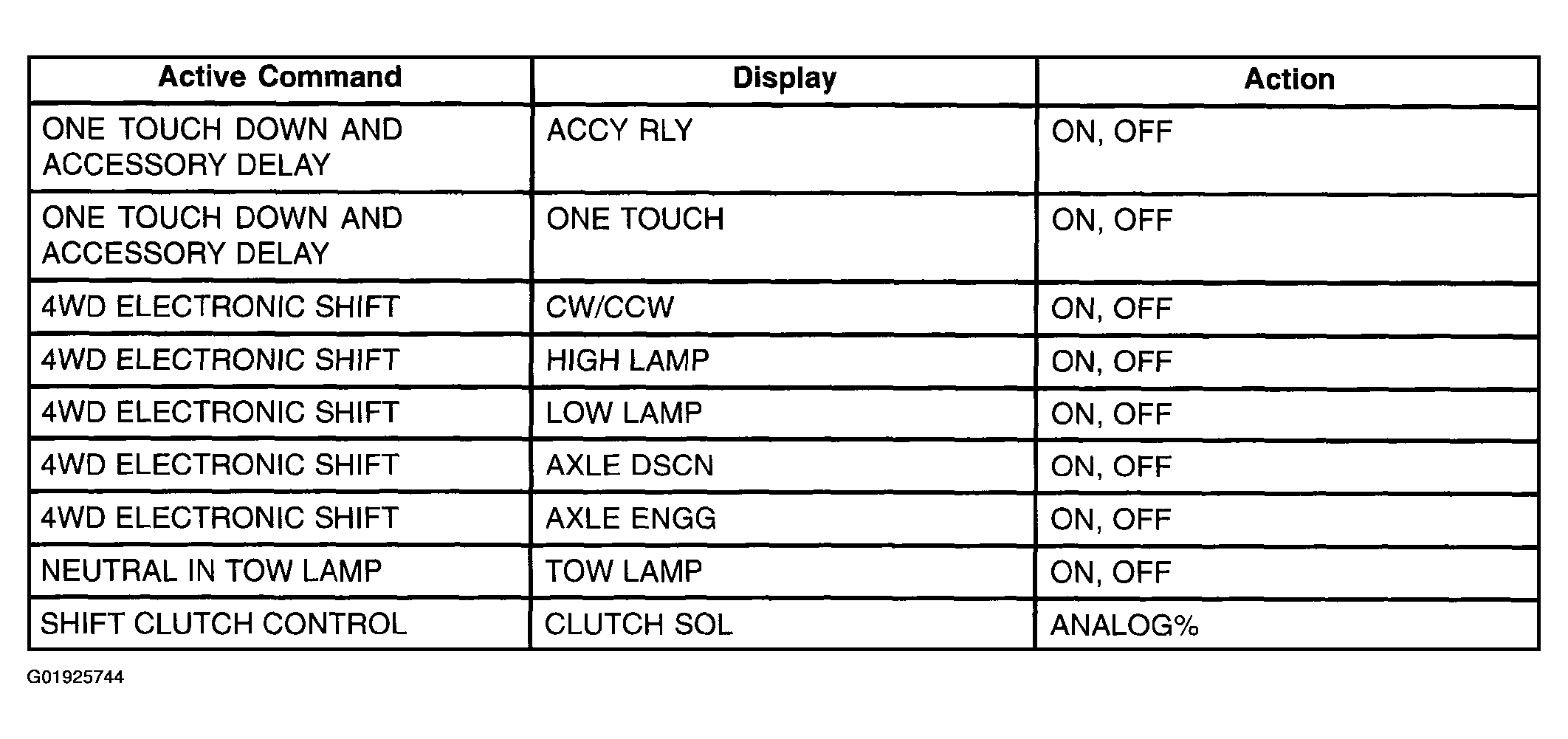

Fig 2: GEM Active Command Index (2 Of 2)

G01925744

Courtesy of MAZDA MOTORS CORP.
