Automatic Transmission Cooling Components View

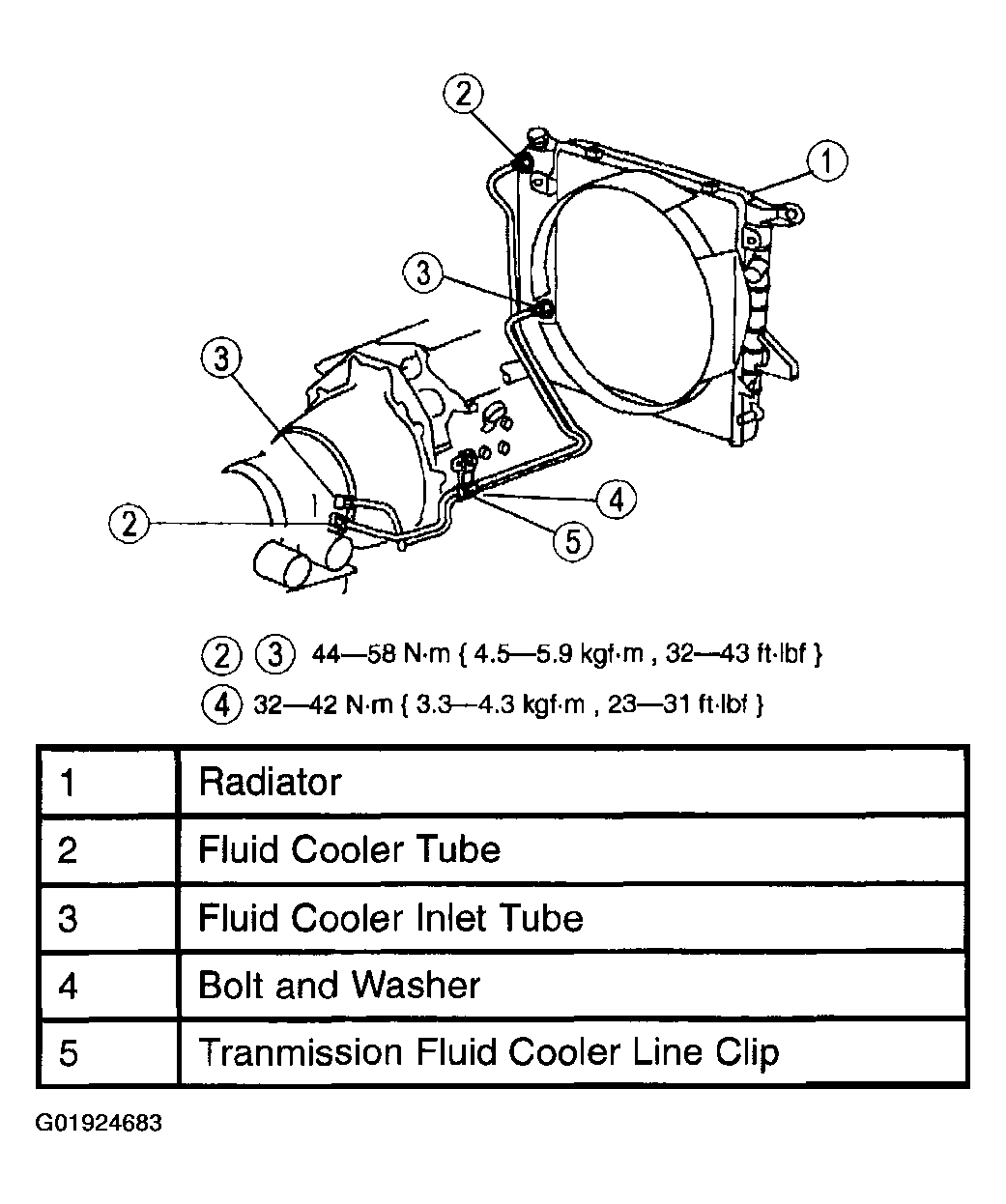

Fig 1: Identifying Automatic Transmission Cooling Components - 3.0L
G01924683Courtesy of MAZDA MOTORS CORP.

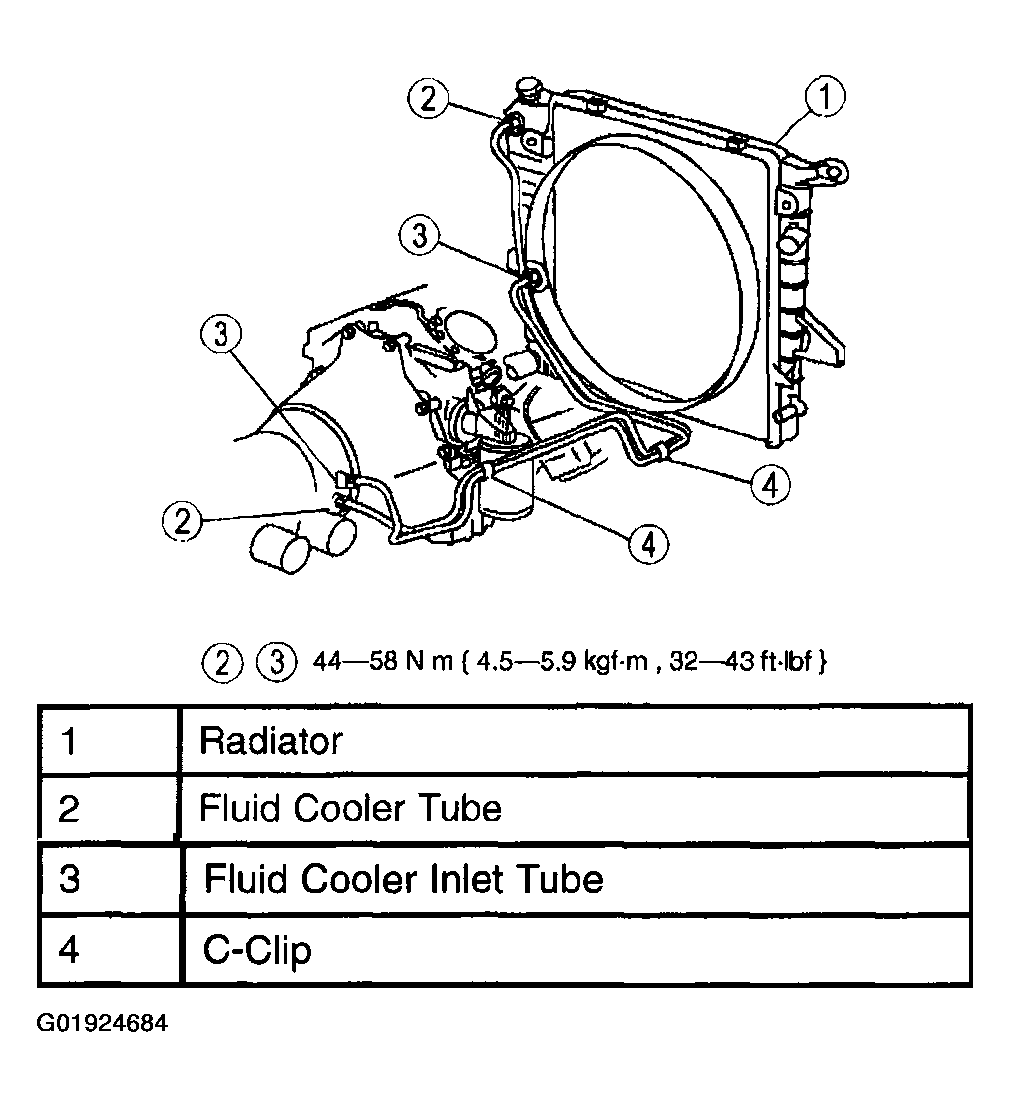

Fig 2: Identifying Automatic Transmission Cooling Components - 4.0L
G01924684Courtesy of MAZDA MOTORS CORP.
