3RD/4TH Synchronizer Key Spring, 3RD/4TH Synchronizer Key And 3RD/4TH Clutch Hub And Sleeve Assembly Note

Install the 3rd/4th synchronizer key spring, 3rd/4th synchronizer key and 3rd/4th clutch hub to the 3rd/4th clutch sleeve.
1. Install a new 3rd/4th clutch hub in the direction as shown in the figure.

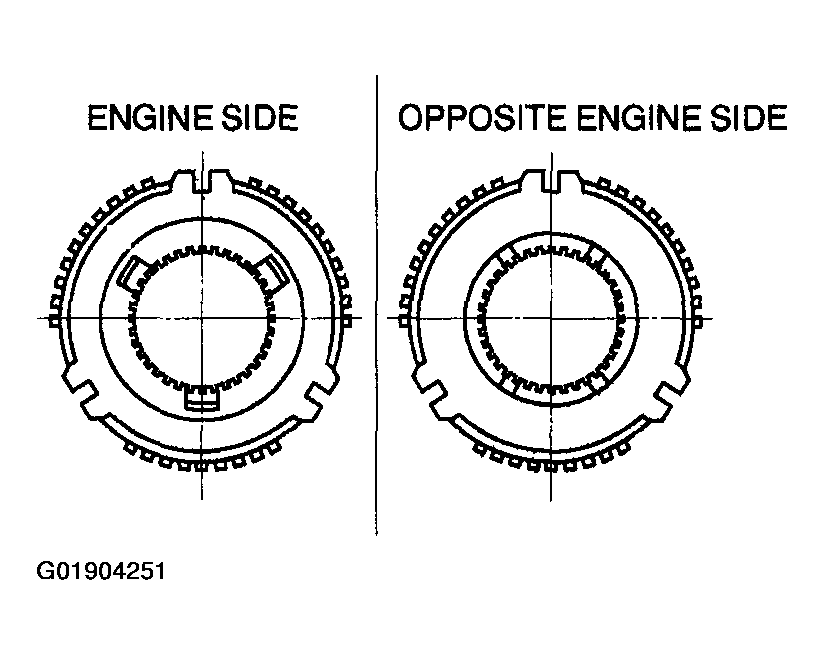

  Fig 1: Identifying 3rd/4th Clutch Hub Installation Direction
  Courtesy of MAZDA MOTORS CORP.
2. Install a new 3rd/4th clutch sleeve in the direction as shown in the figure.

  Fig 2: 3rd/4th Clutch Sleeve Installation Direction
  Courtesy of MAZDA MOTORS CORP.
3. Install center projection parts of 3rd/4th synchronizer key springs to different synchronizer keys on each side.

  Fig 3: Identifying Synchronizer Key Spring Center Projections
  Courtesy of MAZDA MOTORS CORP.
