Disassembly Components

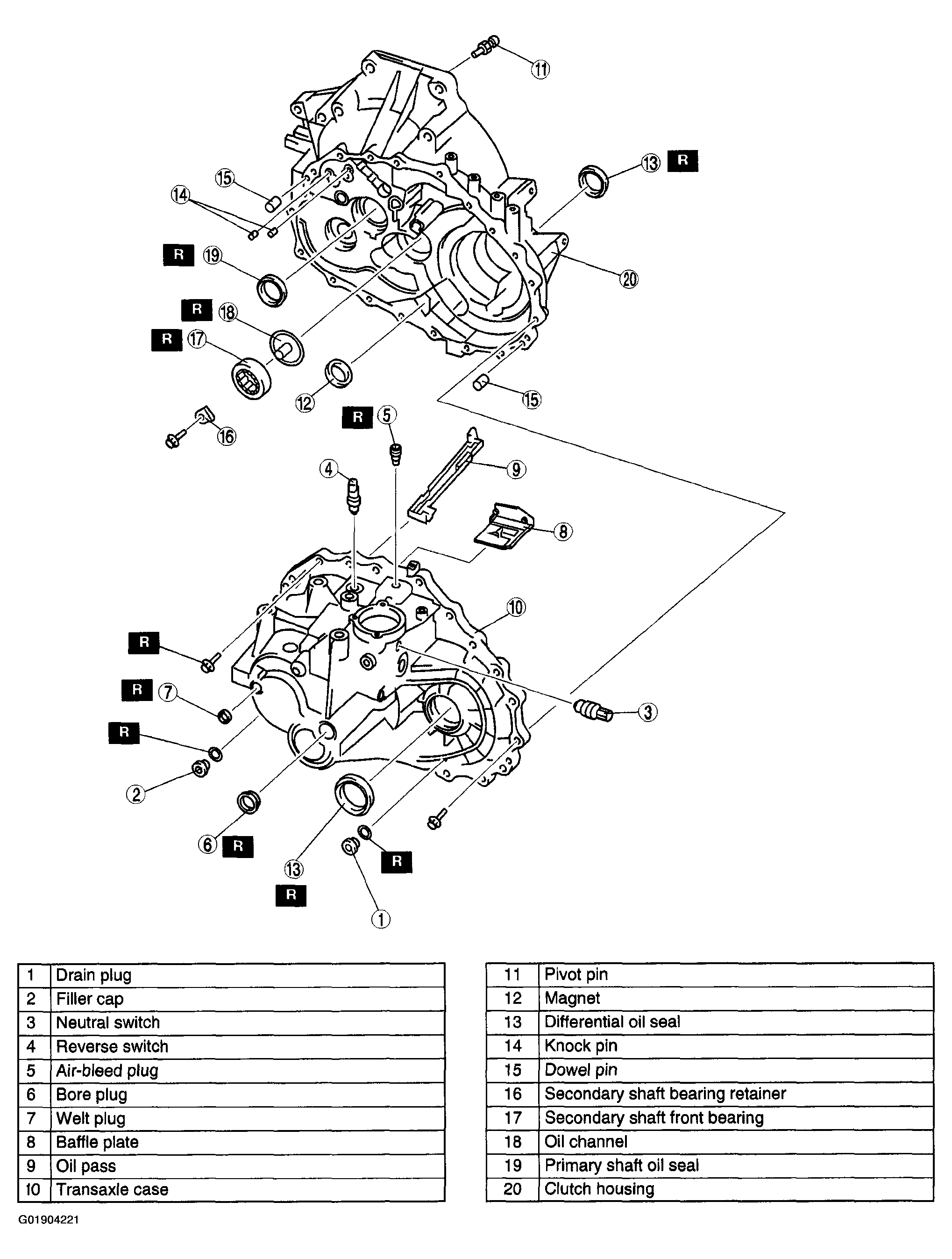

Fig 1: Disassembling Clutch Housing & Transaxle Case (1 Of 2)
G01904221Courtesy of MAZDA MOTORS CORP.

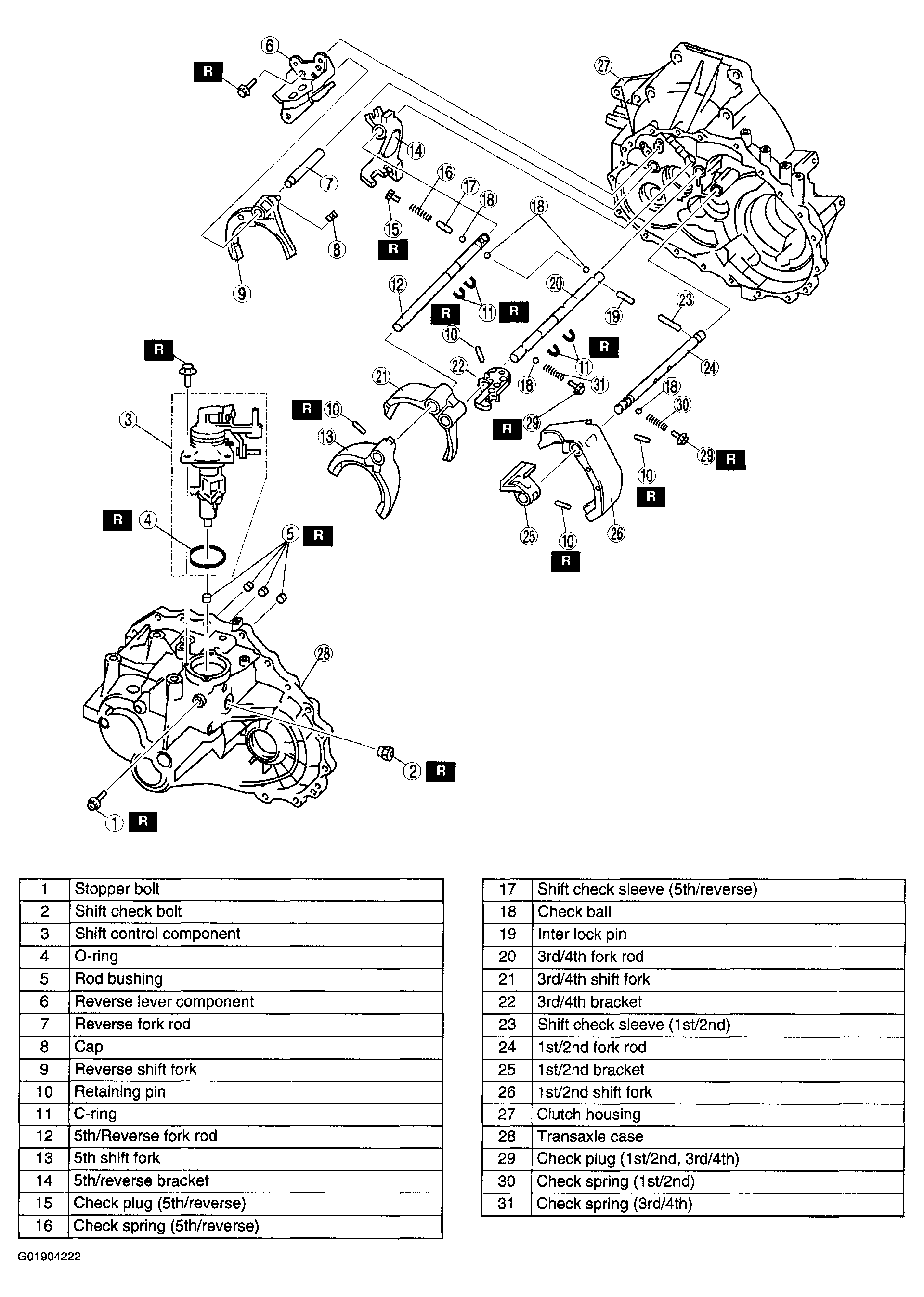

Fig 2: Disassembling Clutch Housing & Transaxle Case (2 Of 2)
G01904222Courtesy of MAZDA MOTORS CORP.
