Transaxle Oil Replacement

Remove the drain plug with the gasket.

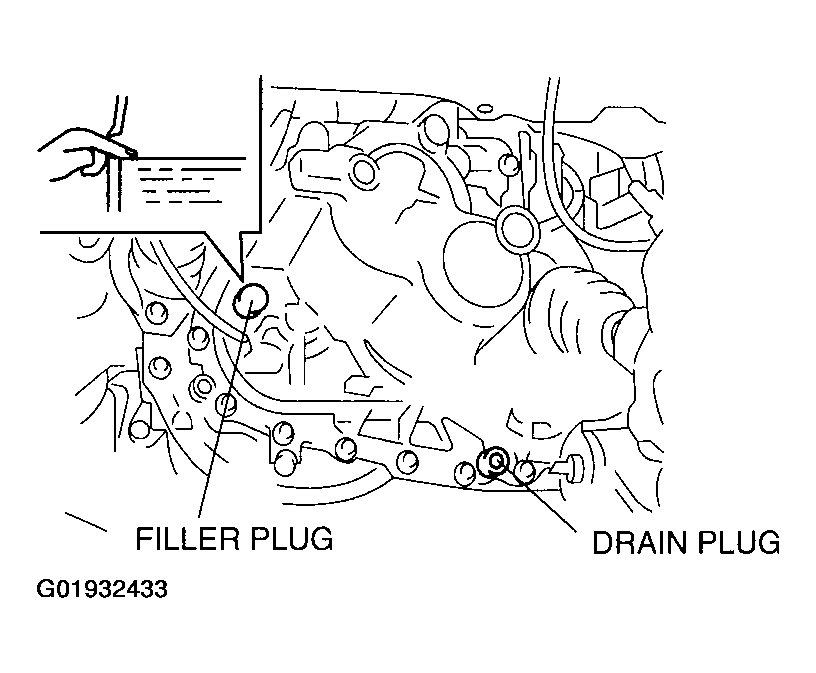

Fig 1: Locating Transaxle Oil Filler Plug And Drain Plug
Courtesy of MAZDA MOTORS CORP.
Drain the oil into a suitable container.
Install a new gasket and the drain plug.
1. Tightening torque 30.0-39.0 N.m {3.1-3.9 kgf.m, 22.1-28.8 in.lbf}
Remove the filler plug with gasket and add the specified amount and type of oil through the filler plug hole until the level reaches the bottom of the filler plug hole.
1. Specified oil grade API Service GL-4 or GL-5
2. Specified oil viscosity SAE 75W-90
3. Capacity (approximate quantity) 2.3 L {2.4 US qt, 2.0 Imp qt}
Install a new gasket and the filler plug.
1. Tightening torque 30.0-39.0 N.m {3.1-3.9 kgf.m, 22.1-28.8 in.lbf}
