Seat Belt Location Index

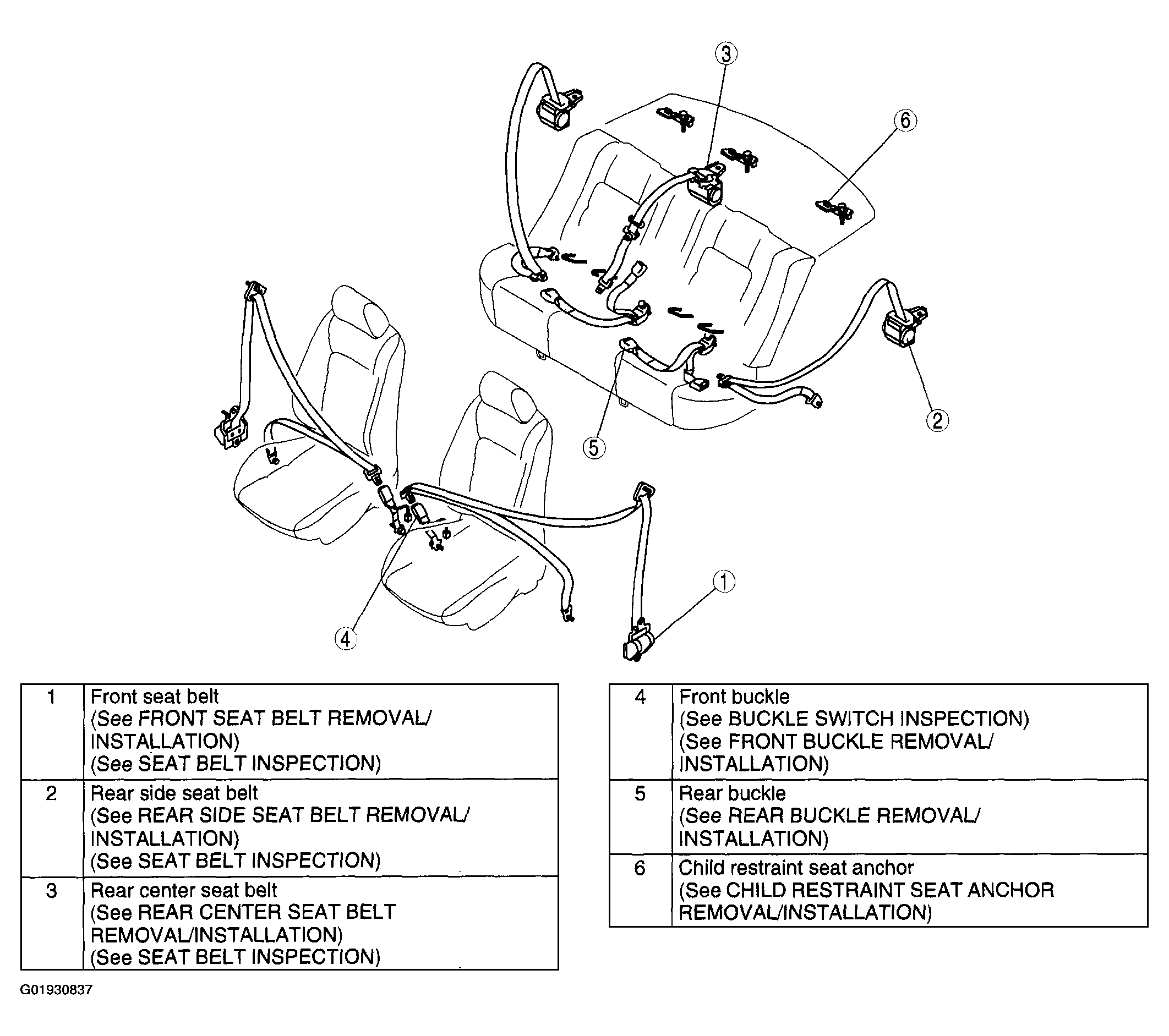

Fig 1: Identifying Seat Belt Location

G01930837

Courtesy of MAZDA MOTORS CORP.
