Keyless Entry System On-Board Diagnosis

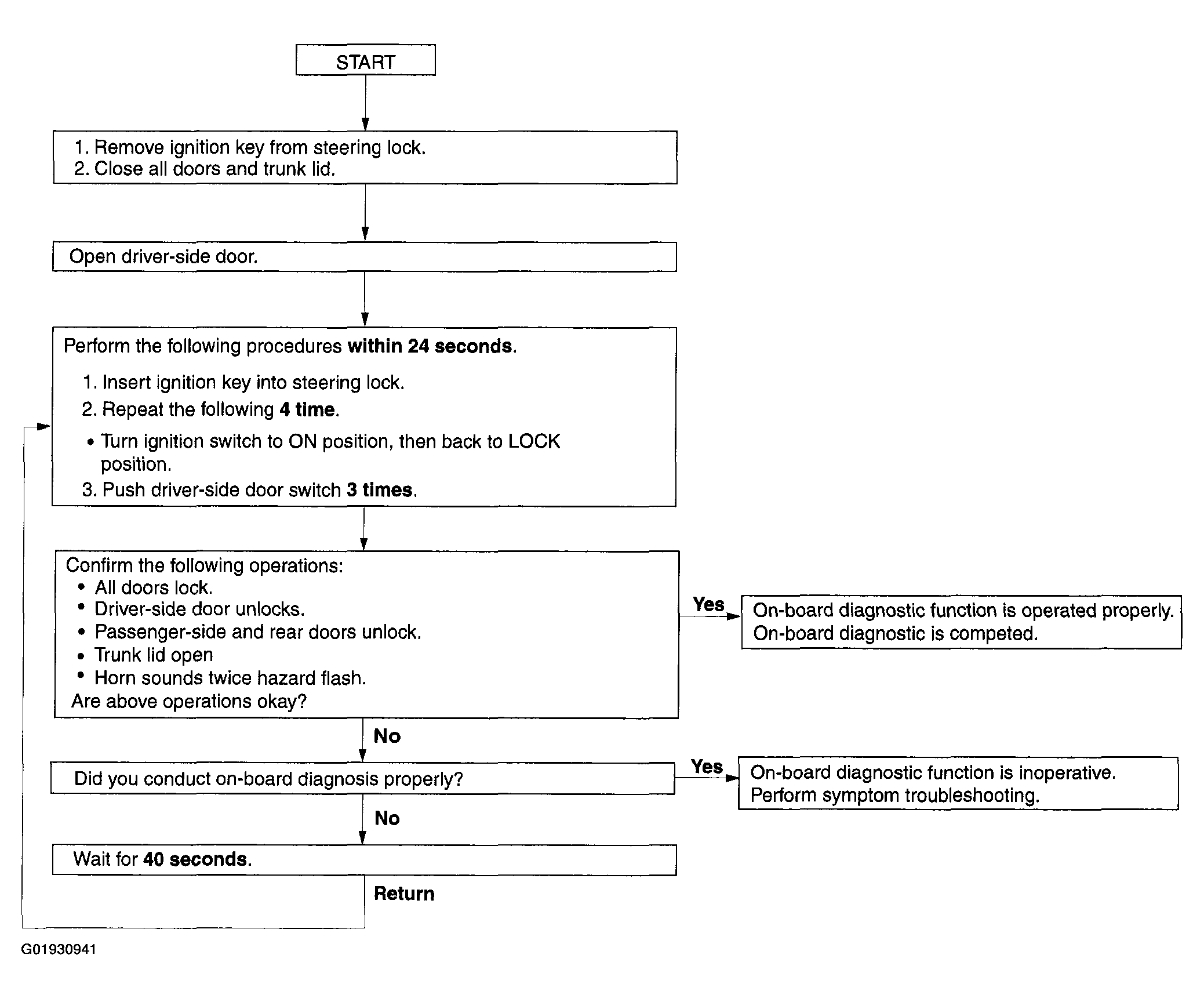

Fig 1: Keyless Entry System On-Board Diagnosis Flow Chart

G01930941

Courtesy of MAZDA MOTORS CORP.
