Keyless Entry System Wiring Diagram

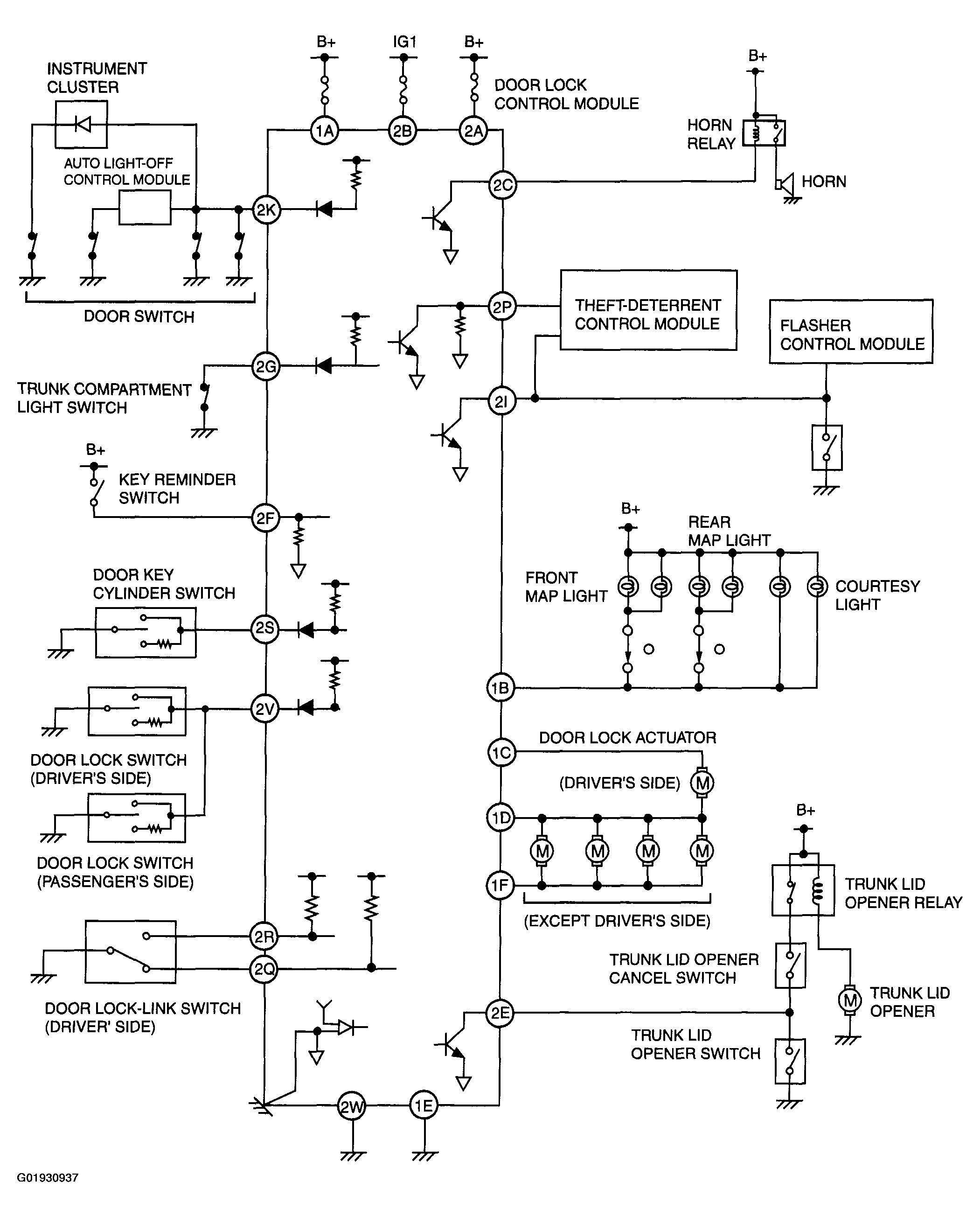

Fig 1: Keyless Entry System Wiring Diagram

G01930937

Courtesy of MAZDA MOTORS CORP.
