3RD/4TH Clutch Hub Assembly Note

  1. Install the synchronizer key springs in the clutch hub with the hooks in the grooves to hold the three synchronizer key in place.

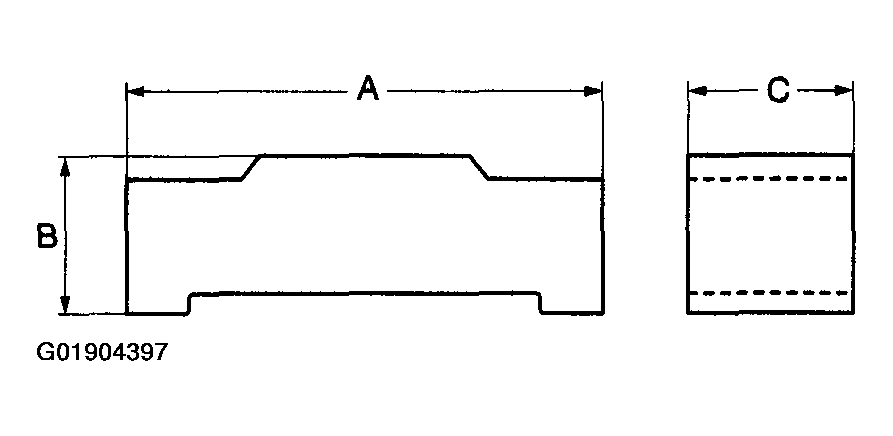

    Synchronizer Key Size

    1. A: 17.0 mm {0.669 in}
    2. B: 4.25 mm {0.167 in}
    3. C: 5.0 mm {0.20 in}
      4. Fig 1: Measuring Synchronizer Key Size
      G01904397Courtesy of MAZDA MOTORS CORP.

  2. Align the synchronizer ring grooves with the synchronizer key during assembly.
