Diagnostic procedure

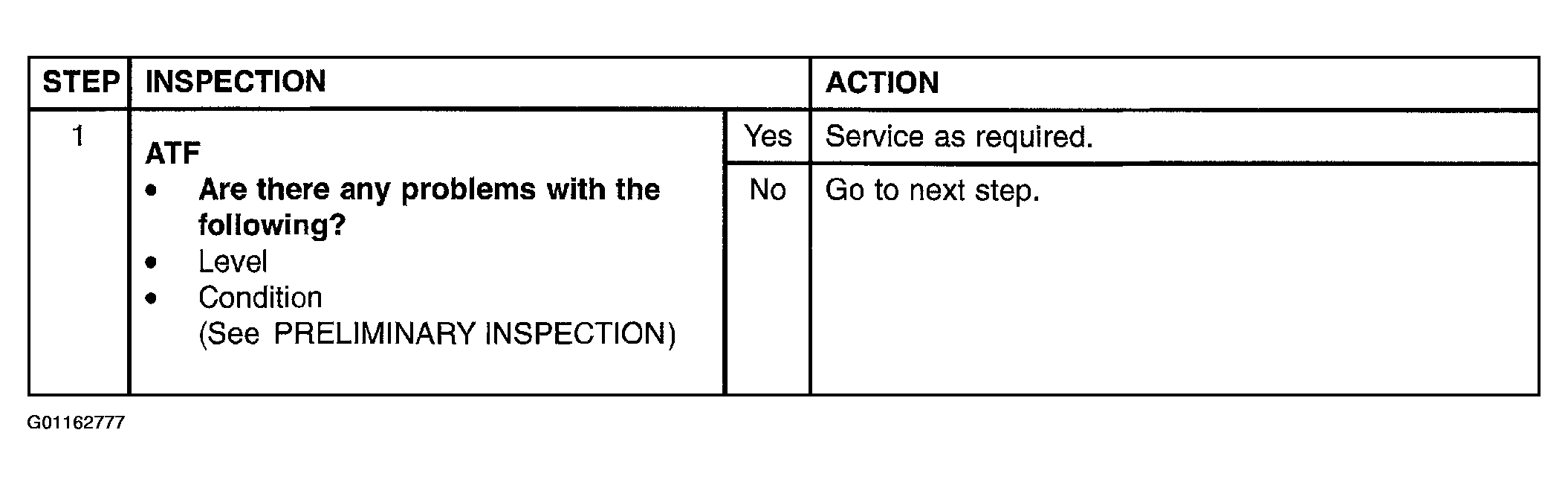

Fig 1: Pinpoint Test 32: Transaxle Overheating (Step 1)
G01162777Courtesy of MAZDA MOTORS CORP.

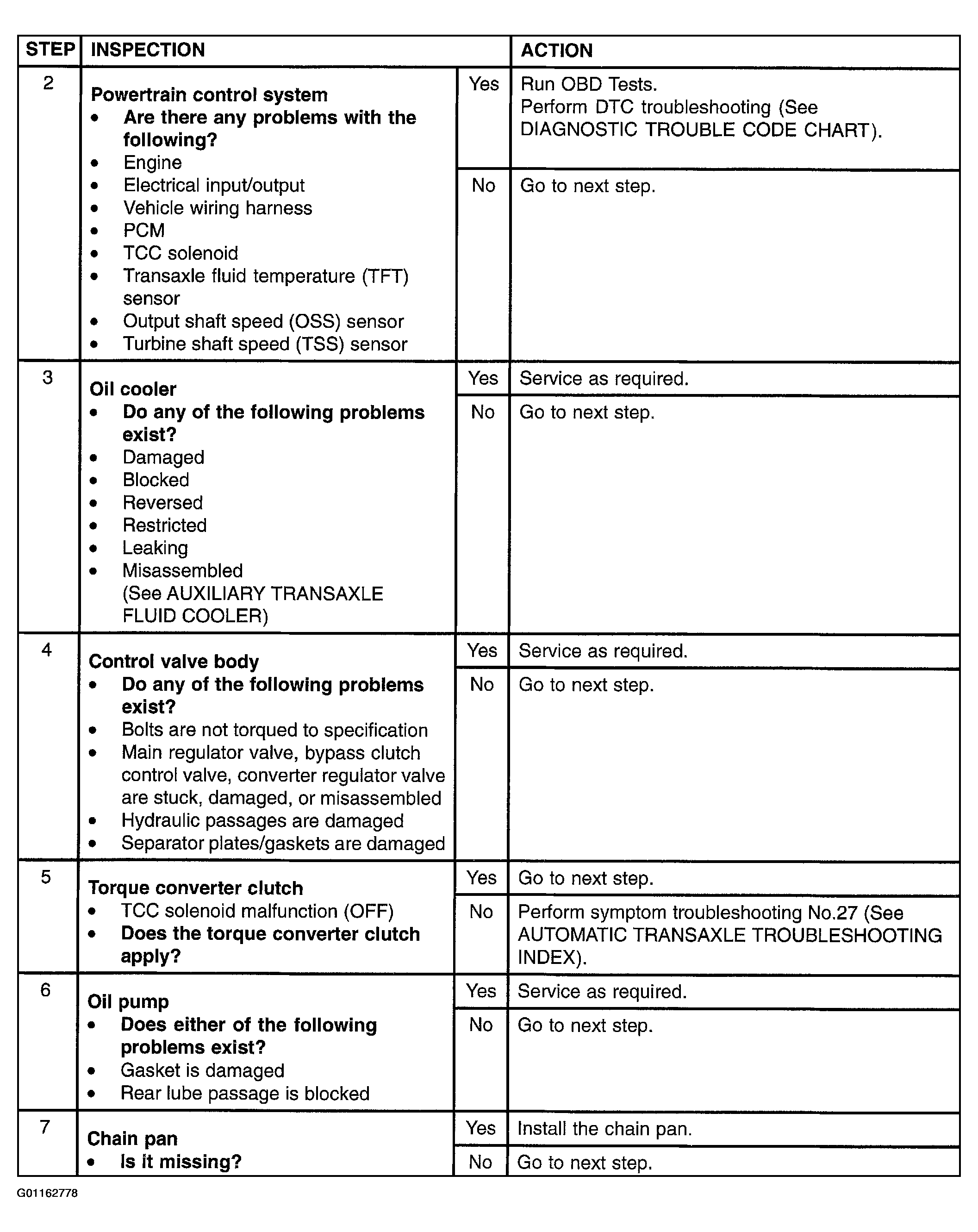

Fig 2: Pinpoint Test 32: Transaxle Overheating (Steps 2-7)
G01162778Courtesy of MAZDA MOTORS CORP.

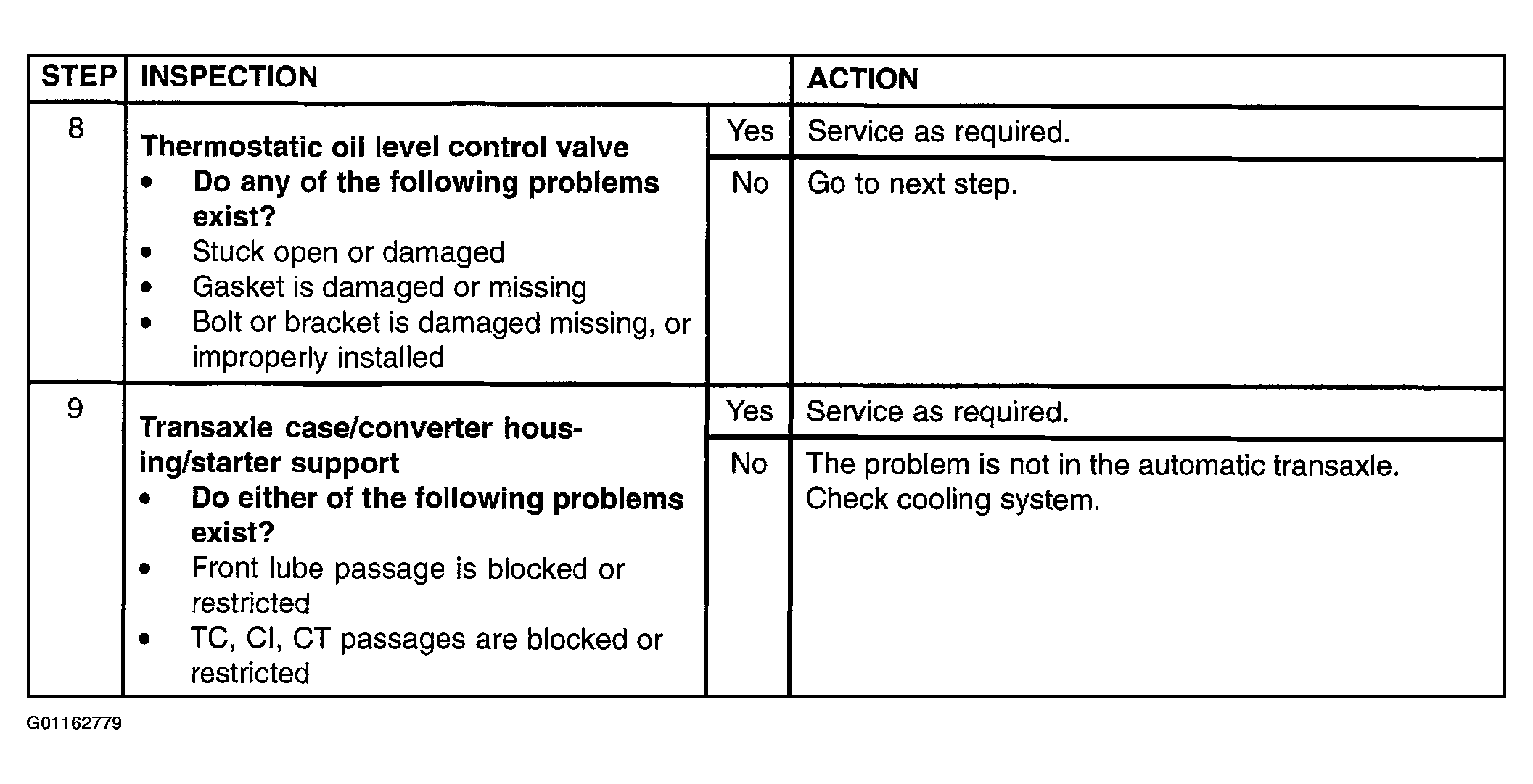

Fig 3: Pinpoint Test 32: Transaxle Overheating (Steps 8-9)
G01162779Courtesy of MAZDA MOTORS CORP.
