Pinpoint Test 2: The Shift Control Is Out Of Correct Gear Relationship

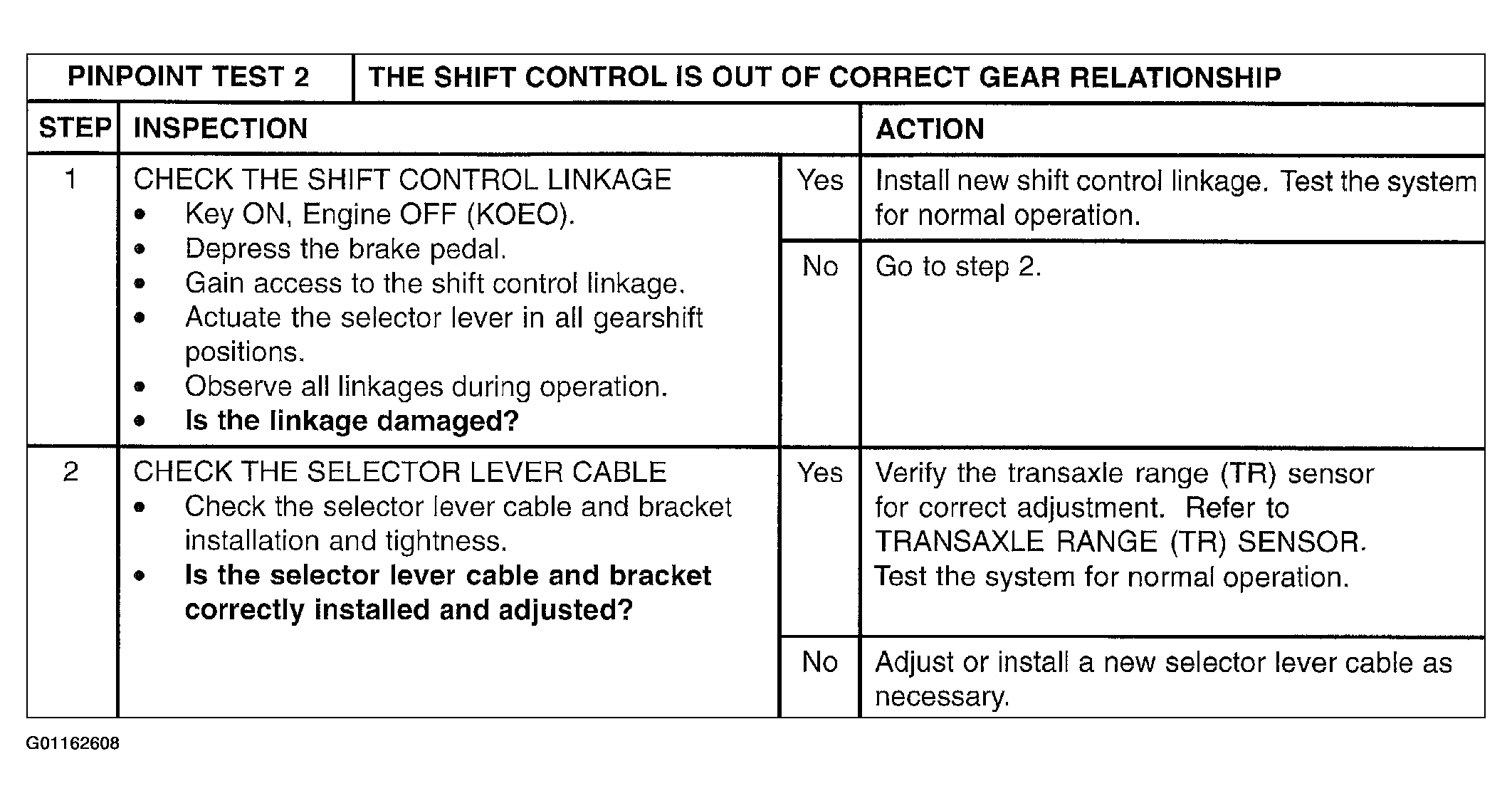

Fig 1: Pinpoint Test 2: The Shift Control Is Out Of Correct Gear Relationship

G01162608

Courtesy of MAZDA MOTORS CORP.
