Pinpoint Test 2: A Single Power Window Is Inoperative - Driver

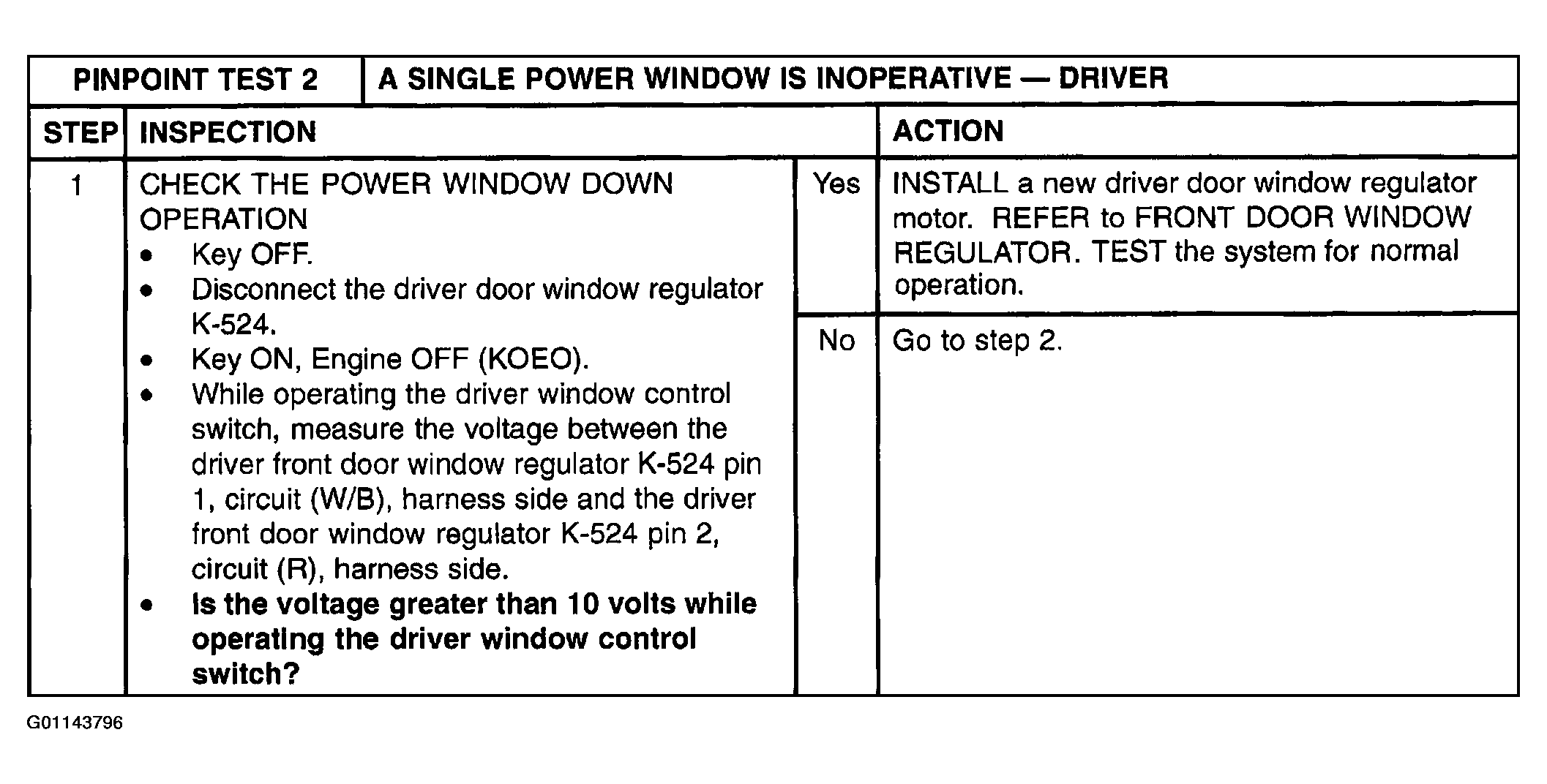

Fig 1: Pinpoint Test 2: A Single Power Window Is Inoperative - Driver (Step 1)
G01143796Courtesy of MAZDA MOTORS CORP.

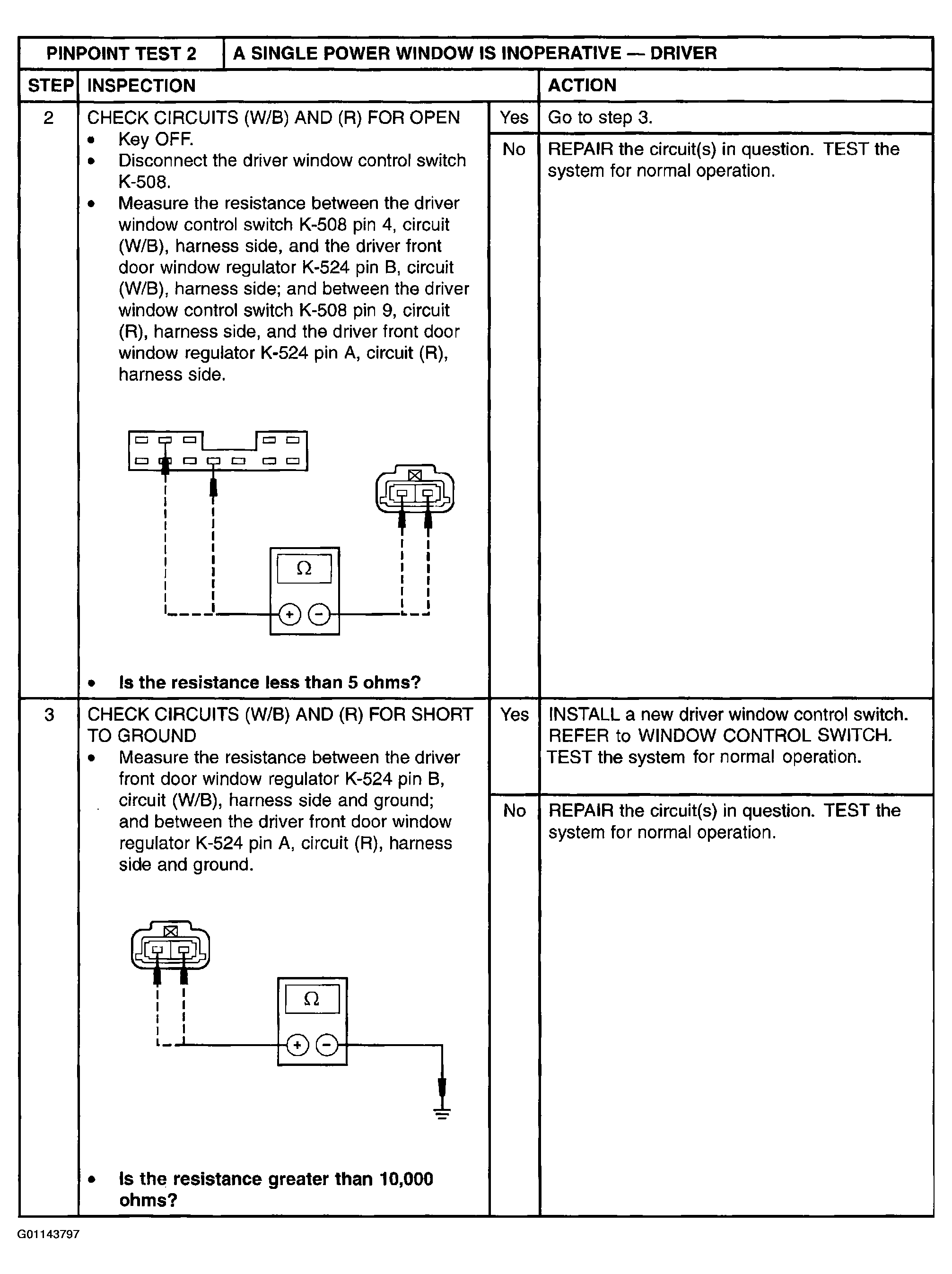

Fig 2: Pinpoint Test 2: A Single Power Window Is Inoperative - Driver (Steps 2-3)
G01143797Courtesy of MAZDA MOTORS CORP.
