Reference: Pressure Chart No. 401

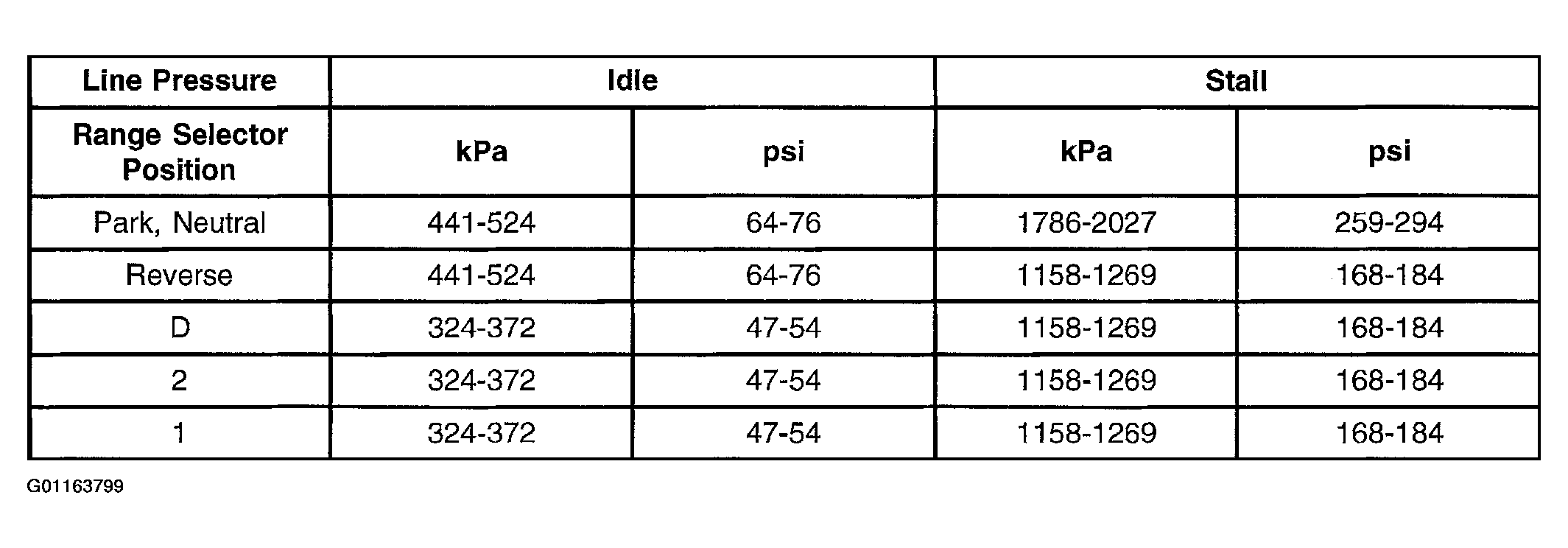

Fig 1: Reference: Pressure Chart No. 401

G01163799

Courtesy of MAZDA MOTORS CORP.
