Pilot Bearing Installation Note

  1. Install a new pilot bearing using the SST.

    Bearing installation depth

    0-0.4 mm (0-0.01 in)

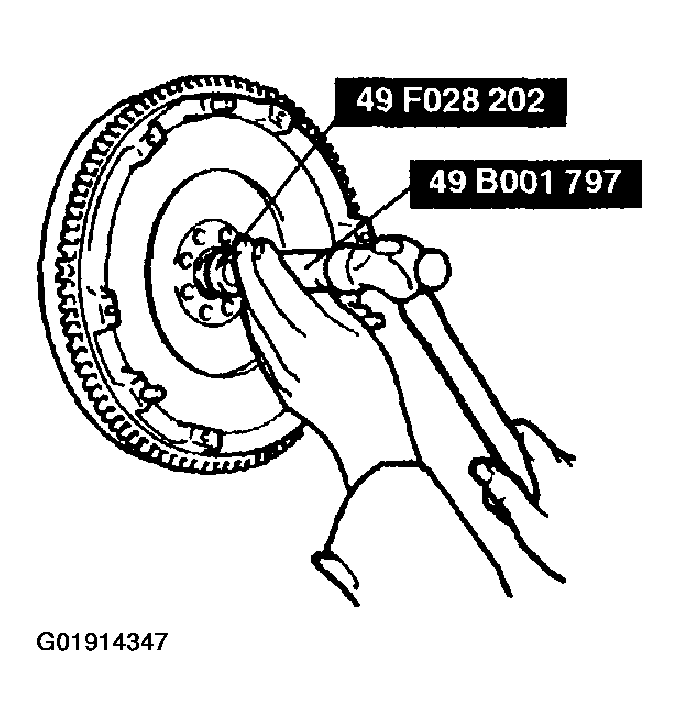

    Fig 1: Installing New Pilot Bearing Using SST
    G01914347Courtesy of MAZDA MOTORS CORP.
