Immobilizer System Location Index

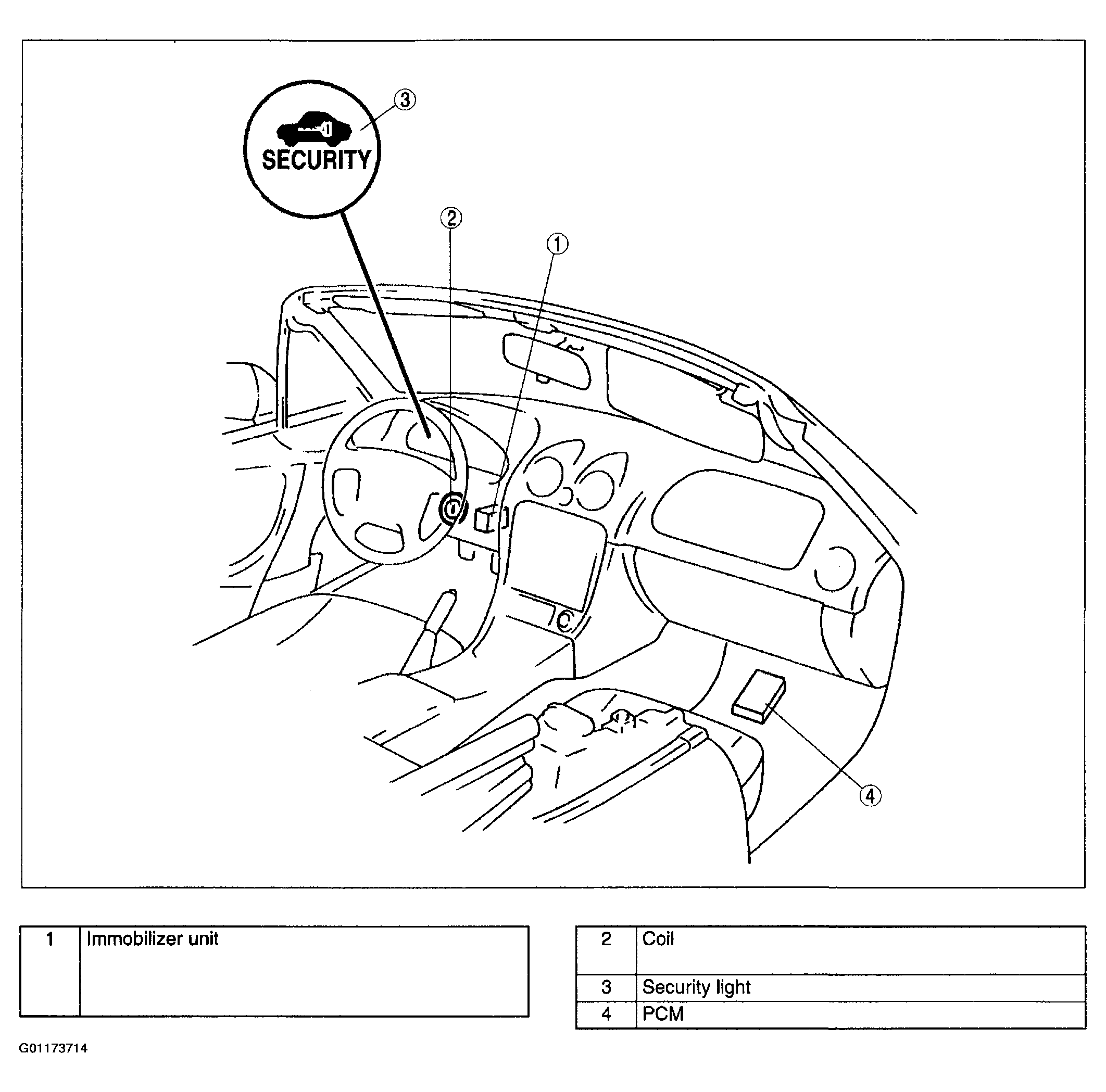

Fig 1: Locating Immobilizer System Components

G01173714

Courtesy of MAZDA MOTORS CORP.
