Flywheel Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the SST to the flywheel.
Remove the locknut using the SST .

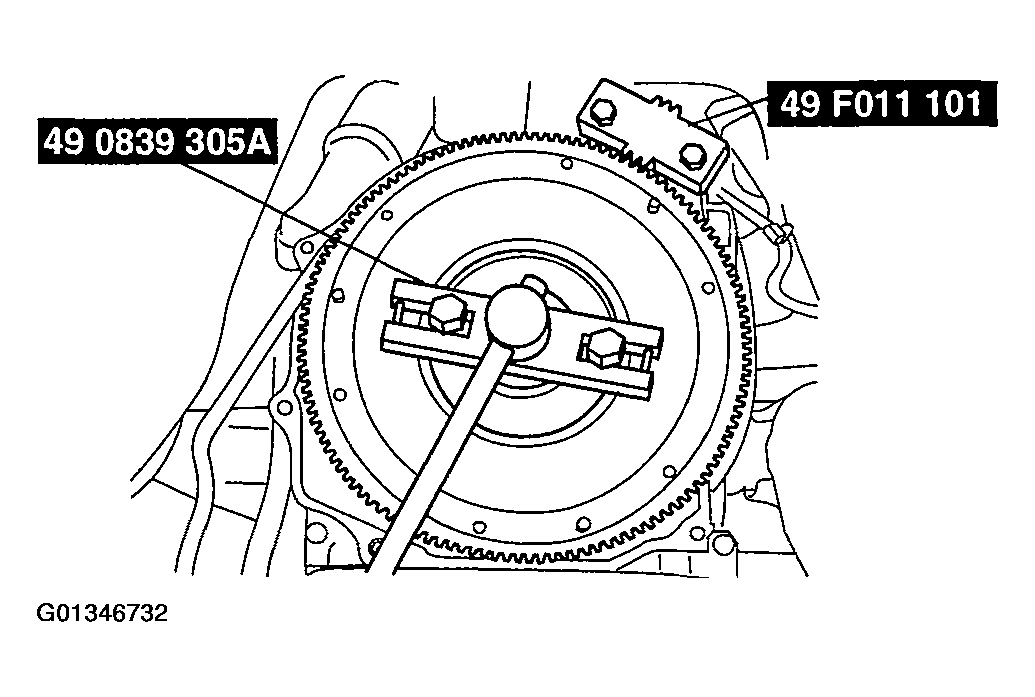

Fig 1: Removing Flywheel Locknut
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Inspect the eccentric shaft for oil leakage after removing the flywheel. If necessary, replace the oil seal. (See REAR OIL SEAL REPLACEMENT .)

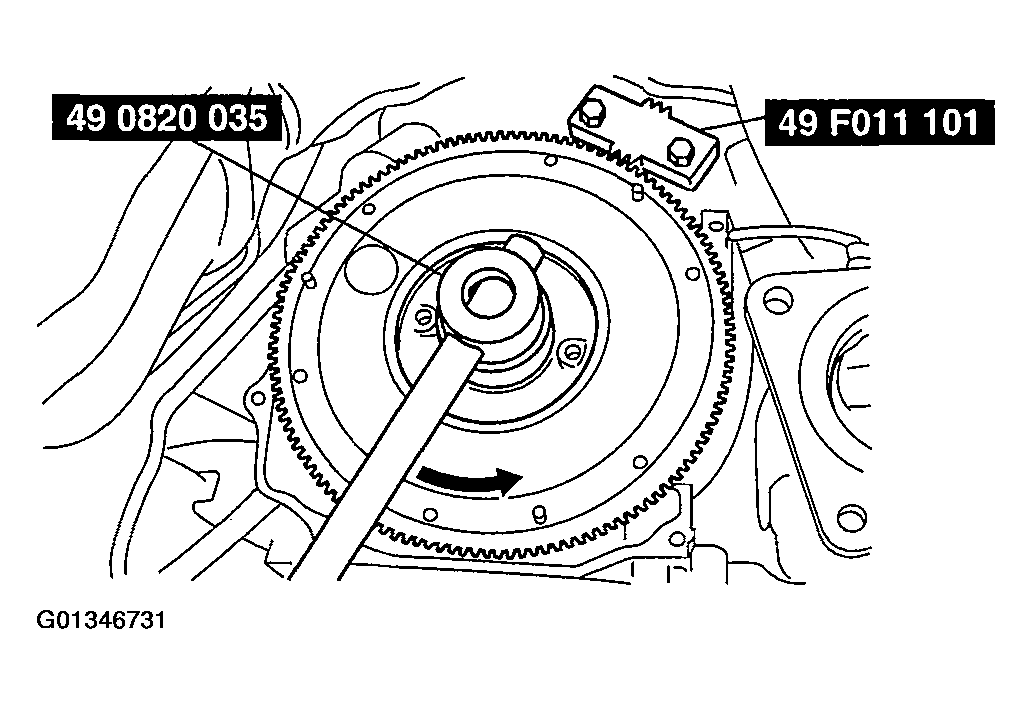

Fig 2: Removing Flywheel
Courtesy of MAZDA MOTORS CORP.
Remove the flywheel using the SST.
Remove the key from the eccentric shaft.
