Installation Note

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the companion flange splines.
    • Use axle lubricant meeting specification API Service GL-5.
      CAUTION: The companion flange must never be hammered on or installed with power tools.
    • Align the index marks and position the companion flange.
      Fig 1: Aligning Index Marks
      G01167016Courtesy of MAZDA MOTORS CORP.
    • Apply a small amount of lubricant to the washer side of the new pinion nut and install hand-tight.
      • CAUTION: Never back off the pinion nut to reduce preload. If reduced preload is required, install a new collapsible spacer and pinion nut.
      NOTE: Pinion bearing preload is set by tightening the pinion nut.
      Fig 2: Tightening Pinion Nut
      G01167017Courtesy of MAZDA MOTORS CORP.
    • Use Coupling Holder ST 205-126  to hold the companion flange while tightening the pinion nut and set the preload.
      1. Tighten the pinion nut, rotating the pinion occasionally to ensure the differential pinion bearings are seating properly. Take frequent differential pinion bearing preload readings until the desired reading is obtained by rotating the pinion with a N.m (inch/pound) torque wrench.
      2. If the original recorded preload is lower than specification, tighten to specification. If the original recorded preload is higher than specification, tighten to the original reading as recorded.
    • Align the index marks and position the front propeller shaft.
    • Install the universal joint spider retainers and bolts.

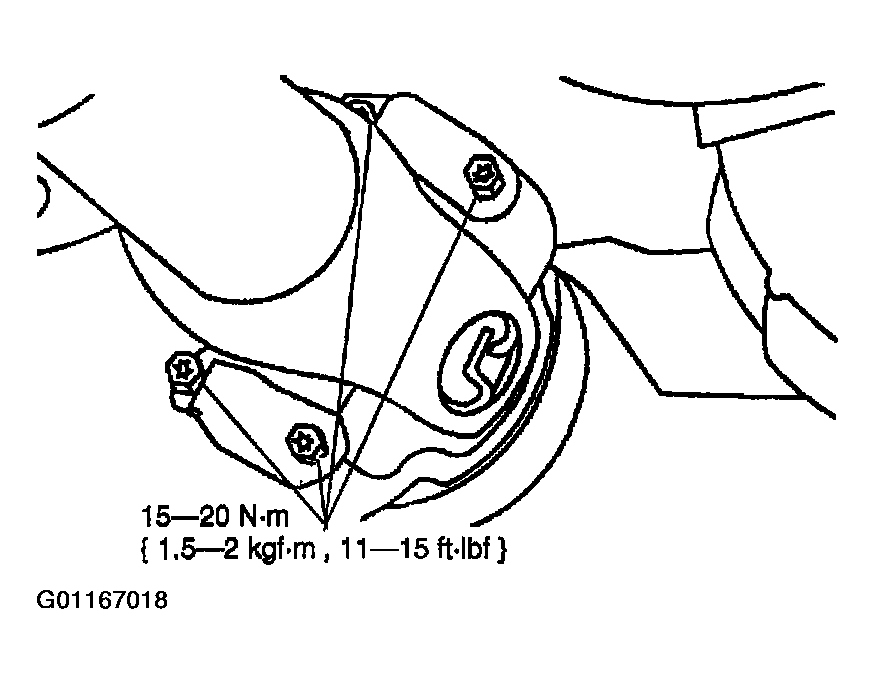

      Fig 3: Tightening Universal Joint Spider Retainer Bolts
      G01167018Courtesy of MAZDA MOTORS CORP.
    • Check the fluid level and fill the axle to specification.
      1. Use axle lubricant meeting specification API Service GL-5.
    • Lower the vehicle.
